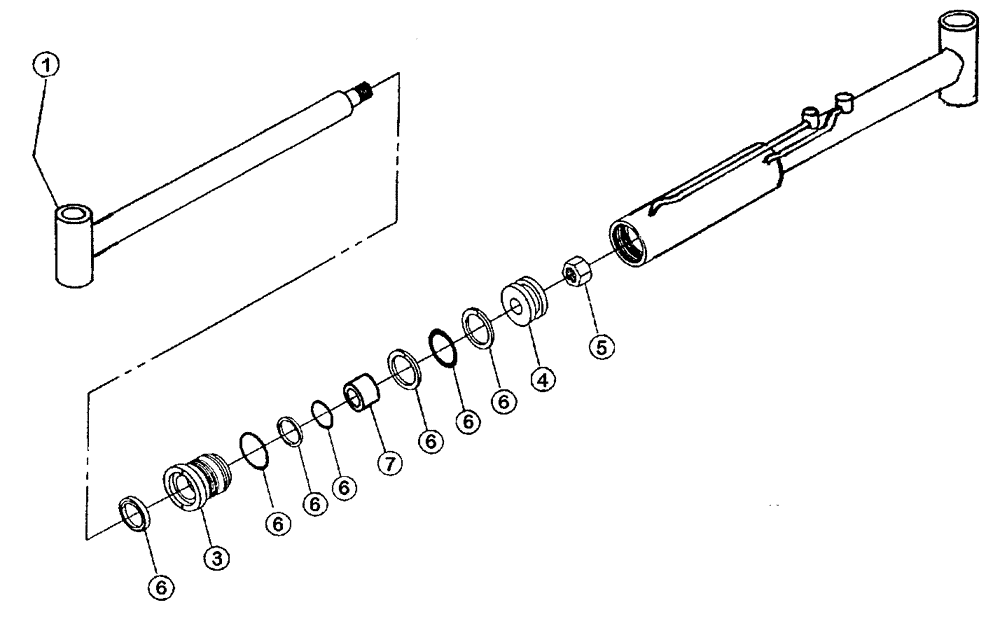

Запчасти Case IH PATRIOT 150 (07-001) - HYDRAULIC CYLINDER-AXLE ADJUST-FRONT AND REAR Cylinders

1

BN98550

ROD

(Rear) (4" End Bushing)

1шт.

1

BN98899

ROD

(Front) (3 1/4" End Bushing)

1шт.

3

BN92473

GLAND

End

1шт.

4

BN98091

PISTON

hydraulic cylinder

1шт.

5

BN98093

LOCK NUT

Jam, 3/4"-16

1шт.

6

BN98179

SEAL KIT

1шт.

7

BN98532

Block

1шт.

8

BN53875

CYLINDER

with clevis (complete), Serial Range: 380-1773

1шт.

Not Shown

1шт.

Front & Rear Axle

1шт.

8

BN53875

CYLINDER

with clevis (complete), Start Serial: 1774

1шт.

Not Shown

1шт.

Rear Axle Only

1шт.

8

BN68957

CYLINDER

HYD. W/Clevis Front (Complete), Start Serial: 1774

1шт.

Not Shown

1шт.

Front Axle Only

1шт.
