Запчасти Case IH PATRIOT 150 (01-001) - CONTROLS, SWITCHES, ELECTRICAL Cab Interior

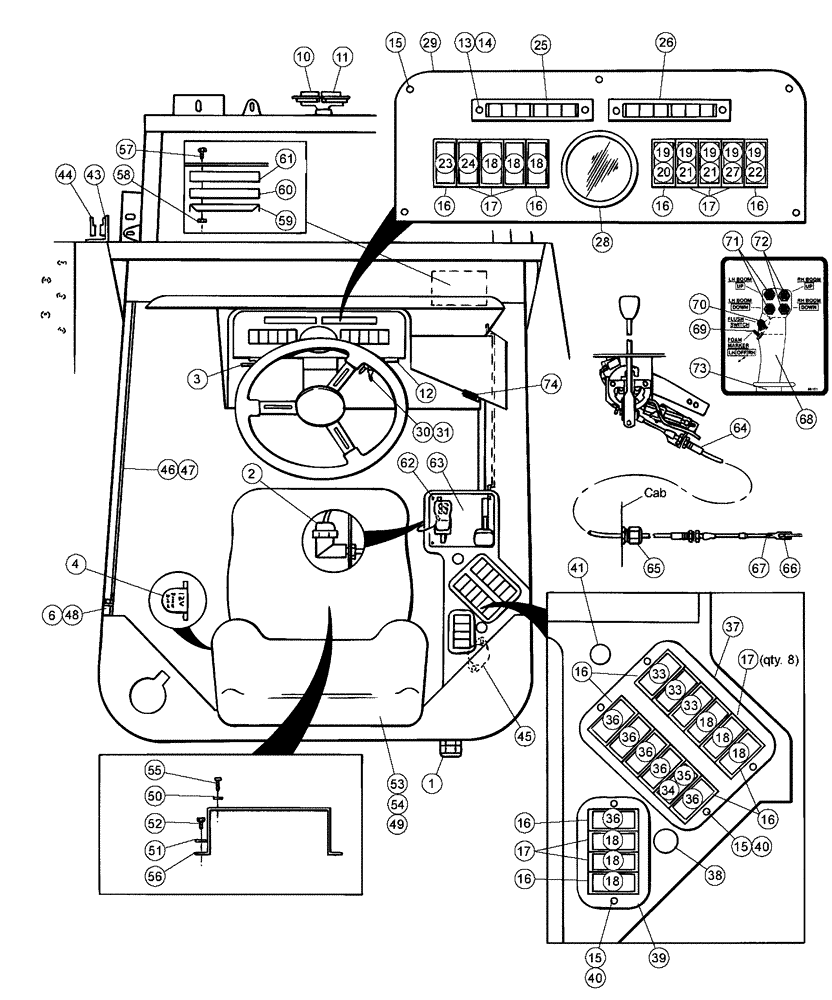

Схема запчастей Case IH PATRIOT 150 - (01-001) - CONTROLS, SWITCHES, ELECTRICAL Cab Interior
39
48
25
60
55
65
3
13
38
28
52
69
56
16
72
17
51
6
15
57
73
16
71
45
41
15
40
37
53
28
66
1
64
17
68
16
49
74
61
2
16
17
47
44
11
14
46
40
26
15
58
16
63
62
16
16
4
30
70
67
10
50
43
12
54
59
31
17
16

Артикул

Название

Примечание

Количество

1

BN66132

GROMMET

Strain Relief - Battery

2шт.

2

BN29523

ELBOW

Fitting - Electric-Liquid Tight

1шт.

3

BN63712

FLASHER SWITCH

Dual rate w/handle

1шт.

4

BN67965

POWER SOCKET

Outlet w/End

2шт.

6

BN67968

SWITCH

Door (Dome Light)

1шт.

10

BN68784

HORN

12V Hi Tone (Sealed)

1шт.

11

BN68785

HORN

12V Low Tone (Sealed)

1шт.

11a

BN52338

NUT

6M X 1M HH PL8.8

2шт.

Associated Part Of Horn - 12V Low Tone, P/N BN68785

1шт.

11b

BN68786

SUPPORT

Dual horns

1шт.

Associated Part Of Horn - 12V Low Tone, P/N BN68785

1шт.

11c

BN68787

WIRE HARNESS

Dual Horns

1шт.

Associated Part Of Horn - 12V Low Tone, P/N BN68785

1шт.

12

BN319663

BUZZER

Chime Tone

1шт.

13

BN50795

NUT

hex, #8-32 (Steel)

4шт.

14

BN52046

BOLT,Pan Hd, Phil, #8 - 32 x 1/2", Stainless

8"-32 x 1/2" SS, PH, Phillip

4шт.

15

BN52047

SCREW,Phil Pan Hd, #8 x 3/4", SST

#8 x 3/4 SS, PH, Phillip

11шт.

16

BN65931

PANEL

Switch Mount, End

10шт.

17

BN65932

PANEL

Switch Mount, Middle

16шт.

18

BN65933

PLUG

Switch Mount Panel

9шт.

19

BN65934

SWITCH

Single Pole, On-Off

5шт.

20

BN65935

LIGHT SWITCH

Actuator (Road lights)

1шт.

21

BN65936

ROCKER

Actuator - Floodlight Switch

2шт.

22

BN65937

ROCKER

Actuator - Domelight Switch

1шт.

23

BN65939

SWITCH

with handle on-off, parking brake

1шт.

Parking Brake

1шт.

24

BN65940

SWITCH

W/Handle Off-On-On

1шт.

Wiper

1шт.

25

BN65943

INDICATOR LIGHT

Cluster, LH (6)

1шт.

25a

BN301816

BULB

12V

6шт.

Service Parts For Ref. 25

1шт.

25b

BN301817

SOCKET

Bulb, For BN65943/44

6шт.

Service Parts For Ref. 25

1шт.

26

BN65944

INDICATOR LIGHT

Cluster, RH (6)

1шт.

26a

BN301816

BULB

12V

6шт.

Service Parts For Ref. 26

1шт.

26b

BN301817

SOCKET

Bulb, For BN65943/44

6шт.

Service Parts For Ref. 26

1шт.

27

BN65943

INDICATOR LIGHT

Actuator-Hazard Warning

1шт.

28

BN67305

TACHOMETER

0-4000

1шт.

28a

BN301813

BULB

12 V

1шт.

Service Parts For Ref. 28

1шт.

28b

BN301814

SOCKET

Light

1шт.

Service Parts For Ref. 28

1шт.

28c

BN301815

LIGHT

Filter, Lamp, Green

1шт.

Service Parts For Ref. 28

1шт.

29

BN68649

INSTRUMENT PANEL

Dash

1шт.

30

BN39175

Key-TeamTyler

1шт.

33

BN65941

SWITCH

W/Handle On-None-On, Serial Range: -1943

3шт.

Boom Shutoff

1шт.

33

BN65934

SWITCH

Single Pole, On-Off, Start Serial: 1944

3шт.

Boom Shutoff

1шт.

33a

BN65938

ROCKER

Actuator - Switch, Start Serial: 1944

3шт.

Associated Part Of Switch - Single Pole, P/N BN65938

1шт.

Boom Shutoff

1шт.

34

BN65934

SWITCH

Single Pole, On-Off

1шт.

Liquid Pump

1шт.

35

BN65938

ROCKER

Actuator - Switch

1шт.

Liquid Pump

1шт.

36

BN65942

SWITCH

W/Handle On-Off-On (Inner-Outer Boom Fold, Boom Height Sparge, Axle Adj.)

6шт.

37

BN66266

14 GA. HRS 6.5 x 7.75

1шт.

38

BN27460

Control - Pressure

1шт.

Foam Marker

1шт.

39

BN66267

PLATE

Mount, 14 GA Hrs, 3.37 x 5.62

1шт.

40

BN67971

FASTENER

#8 Tinnerman

6шт.

41

342465A1

SWITCH

range select

1шт.

Speed Control

1шт.

41a

BN29440

KNOB

for Contact Block BN29439

1шт.

Associated Part Of Speed Control, P/N BN29439

1шт.

43

BN68182

ACTUATOR

Magnetic, 12V

1шт.

43a

BN68260

SCREW,Hex, #4 - 40 x 1/2", Gr 5

HH, #4-40 x .50, G5, PL

2шт.

Associated Part Of Switch - Magnetic, P/N BN68182

1шт.

43b

BN68261

WASHER

#4, Flat, G5, PL

2шт.

Associated Part Of Switch - Magnetic, P/N BN68182

1шт.

43c

BN50125

NUT

4-40, HH, G5, Plated

2шт.

Associated Part Of Switch - Magnetic, P/N BN68182

1шт.

44

BN68183

ACTUATOR

Magnet

1шт.

44a

BN68260

SCREW,Hex, #4 - 40 x 1/2", Gr 5

HH, #4-40 x .50, G5, PL

2шт.

Associated Part Of Actuator - Magnet, P/N BN68183

1шт.

44b

BN68261

WASHER

#4, Flat, G5, PL

2шт.

Associated Part Of Actuator - Magnet, P/N BN68183

1шт.

44c

BN50125

NUT

4-40, HH, G5, Plated

2шт.

Associated Part Of Actuator - Magnet, P/N BN68183

1шт.

45

BN69742

ELEC. TERMINAL PIN,Male

Bulkhead , .22 Pin Male

1шт.

45a

BN69743

LOCK

Bulkhead Connector

2шт.

Associated Part Of Bulkhead Male Connector, P/N BN69742

1шт.

45b

BN16108

PLUG

Weatherpak Connector

22шт.

Associated Part Of Bulkhead Male Connector, P/N BN69742

1шт.

45c

BN50051

NUT,1/4"-20, USR

2шт.

Associated Part Of Bulkhead Male Connector, P/N BN69742

1шт.

46

BN52047

SCREW,Phil Pan Hd, #8 x 3/4", SST

#8 x 3/4 SS, PH, Phillip

4шт.

47

BN67371

STRIP

Door Stop

1шт.

48

BN69132

EXTENSION

Switch, Domelite

1шт.

49

BN29361

SAFETY BELT

Retractable BL

1шт.

50

BN50141

WASHER

5/16, FW, G5

4шт.

51

80680

LOCK WASHER,3/8 0.381 CST ZND

6шт.

52

BN50251

BOLT

3/8"-16 x 3/4, HH, G5

6шт.

53

BN68850

SET OF BELTS,14.00" L

2, Set

1шт.

54

BN68852

SEAT

Magnum 200 (Gray)

1шт.

54a

BN301702

SHOCK ABSORBER

Seat

1шт.

Service Parts For Ref. 54

1шт.

54b

BN301703

ARMREST

Package, Gray

1шт.

Service Parts For Ref. 54

1шт.

55

BN69005

BOLT,Skt Hd, 5/16" x 1"

Sk Hd, 5/16" x 1"

4шт.

56

BN69009

BRACKET

Seat Mount

1шт.

57

BN50545

5/16-18 x 2.75, HH, 5, PL

2шт.

58

BN55360

LOCK NUT

5/16-18, HX, NY, PL

2шт.

59

BN68264

COVER

14 GA HRS 6.25 x 8.5

1шт.

60

BN68265

RUBBER SEAL

Rubber 1 x 5 x 7

1шт.

61

BN68266

RUBBER SEAL

1 x 5 x 7

1шт.

62

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

4шт.

63

BN68263

CONTROL

Shift & Throttle

1шт.

64

BN29257

CABLE,Throttle Cable, 2133.6mm L

Control, 84"

1шт.

Shown

1шт.

64a

BN29256

CABLE,2438.4mm L

Control, 96"

1шт.

65

BN66117

NUT

Strain Relief-Shift

2шт.

66

BN29258

CLEVIS

Assembly With Pin

2шт.

67

BN67055

SUN VISOR

Nut-1/4-20 UNC Centerlock

2шт.

68

BN66113

HANDLE

W/Switches (Complete) (DICKEY-john®)

1шт.

68

BN66114

HANDLE

W/Switches (Complete) (Raven)

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

69

BN98892

SWITCH

Toggle, On-Off-On

1шт.

Foam Marker

1шт.

69a

BN98894

JAM NUT

15/32 Jam

1шт.

Associated Part Of Foam Marker, P/N BN98892

1шт.

69b

BN98893

BOOT

Toggle, black, Nut-15/32 jam, black

1шт.

Associated Part Of Foam Marker, P/N BN98892

1шт.

70

BN98671

SWITCH

Push Button (Flush) (DICKEY-john®)

1шт.

70a

BN98674

BOOT

Blue (DICKEY-john®)

1шт.

Associated Part Of Switch - Push Button, P/N BN98671

1шт.

71

BN98670

SWITCH

Push Button

1шт.

LH Boom Function

1шт.

71a

BN98673

BOOT

Yellow

1шт.

Associated Part Of Switch - Push Button, P/N BN98671

1шт.

72

BN98670

SWITCH

Push Button

1шт.

RH Boom Function

1шт.

72a

BN98672

BOOT

Green

1шт.

Associated Part Of Switch-Push Button, P/N BN98670

1шт.

73

BN29986

INSERT

Grip, 1" Dia x 1.6" Nylon

1шт.

74

BN16018

ALARM

Low Hopper

1шт.

Выбрано товаров: 140
