Запчасти Case IH PATRIOT 150 (10-002[01]) - EXTERIOR DECALS (13) - DECALS

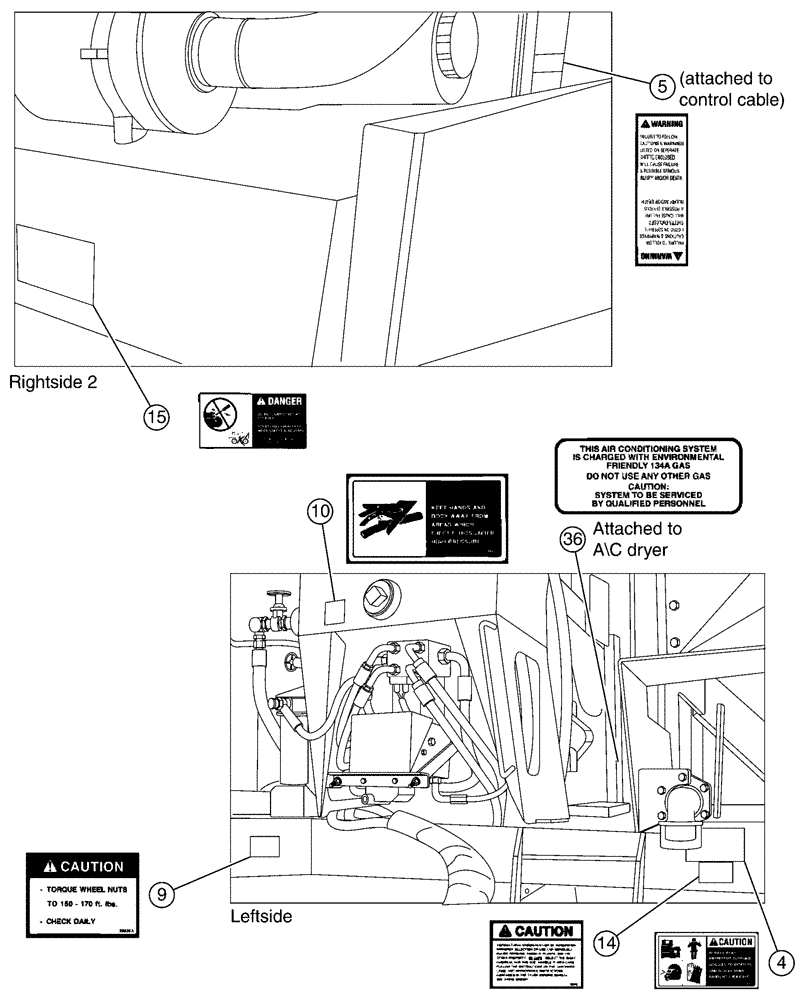

Схема запчастей Case IH PATRIOT 150 - (10-002[01]) - EXTERIOR DECALS (13) - DECALS
9
15
5
10
4
14
36

Артикул

Название

Примечание

Количество

0

BN68180

Pat 150-NCB

1шт.

1

BN11886A

DECAL

Caution - Do Not Ride

1шт.

2

BN12429A

DECAL

Caution - Service Manual

1шт.

4

BN23877

CAUTION DECAL

Chemical

1шт.

5

BN24146

DECAL

Warning - Control Cable

2шт.

6

BN25179

DECAL

Safety Pin - CTR Boom-770

1шт.

7

BN25214

DECAL

Caution - Ladder up REV

1шт.

8

BN29369

DECAL

Made By Tyler

1шт.

9

BN29636A

DECAL

Wheel Nut - 770

3шт.

10

BN29646

DECAL

Warning - Fluid Presssure

1шт.

11

BN29773

REFLECTOR

Rectanguler Amber

4шт.

12

BN29774

REFLECTOR

Rectangular Red

4шт.

13

BN63961

DECAL

HYD. Fluid Patriots

1шт.

14

BN63998

DECAL

Caution - Chemicals

2шт.

15

BN65207

DECAL

Caution (Jumpstart) Pat

1шт.

16

BN65208

DECAL

Tag - Safety Alert (Start) Pat

1шт.

17

BN65285

DECAL

Add Hydraulic Oil - Sight

1шт.

17a

BN69781

Package - Decal - Cab EXT. (150) - NCB

1шт.

18

BN400324A

DECAL

Diesel - Fuel Warning

1шт.

19

BN54145

DECAL

Tyler (Die Cut) Mert

1шт.

20

BN69761

DECAL

Patriot (Lower Case) - NCB

1шт.

21

BN69762

DECAL

Tyler (3") - NCB

1шт.

22

BN69763

DECAL

RH Hood (Graphic) - NCB

1шт.

23

BN69764

DECAL

LH Hood (Graphic) - NCB

1шт.

24

BN69765

DECAL

Stripe (Lower Door) - NCB

2шт.

25

BN69766

DECAL

Stripe (RR Cab) - NCB

2шт.

26

BN69767

DECAL

RH Stripe (Hood) - NCB

1шт.

27

BN69768

DECAL

LH Stripe (Hood) - NCB

1шт.

Shown

1шт.

28

BN69769

DECAL

Stripe (Mid-Door) - NCB

2шт.

29

BN69770

DECAL

RH Stripe (Roof) - NCB

1шт.

30

BN69771

DECAL

LH Stripe (Roof) - NCB

1шт.

31

BN69776

DECAL

150 (Roof) - NCB

2шт.

32

BN69777

DECAL

150 (Hood) - NCB

2шт.

33

BN69778

DECAL

TP Hood (Graphic) NCB

1шт.

34

BN24603

DECAL

Towing Trailer (Hitch Option)

1шт.

35

BN63915

DECAL

Caution Foam Mixing

1шт.

36

BN301704

DECAL

Charge With 134A Gas

1шт.

36a

NSS

NOT SOLD SEPARAT

Decal - Caution Strainer Pressure

3шт.

See Fig. 10-024

1шт.

Выбрано товаров: 40
