Запчасти Case IH PATRIOT 150 (10-001) - INTERIOR DECALS (13) - DECALS

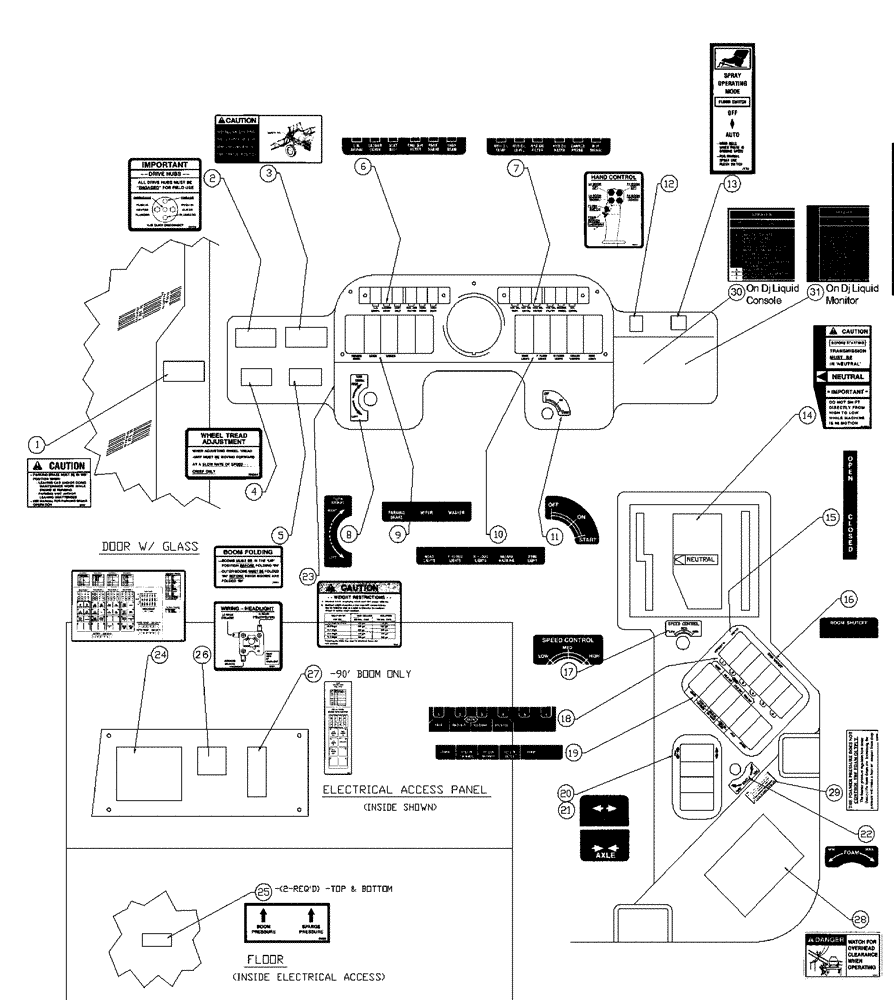

Схема запчастей Case IH PATRIOT 150 - (10-001) - INTERIOR DECALS (13) - DECALS
30
7
25
21
24
20
29
4
15
5
10
22
28
17
27
1
12
6
2
9
18
13
14
19
11
3
31
23
16
8
26

Артикул

Название

Примечание

Количество

0

BN68167

Decal Pat XL NCB

1шт.

1

BN29982

DECAL

Caution - Parking Brake

1шт.

2

BN29411A

Hubs - Engaged - Sprayer

1шт.

3

BN25179

DECAL

Safety Pin - CTR Boom - 770

1шт.

4

BN29635A

DECAL

Wheel Tread Adjustment

1шт.

5

BN29634

Instruct - Boom Fold

1шт.

6

BN69138

DECAL

LH lite bar-dash

1шт.

7

BN69137

DECAL

RH lite bar-dash

1шт.

8

BN69142

DECAL

Turn Signal - Dash

1шт.

9

BN69140

DECAL

LH Function Switch Dash

1шт.

10

BN69139

DECAL

RH Lite Switch Dash

1шт.

11

BN69141

DECAL

Ignition Dash

1шт.

12

BN69151

DECAL

Hand Control Dash

1шт.

13

BN29764

Spray OPER - Floor SW

1шт.

14

BN29398A

Caution - Starting & Shift

1шт.

15

BN69146

DECAL

Boom (Open-Close) Dash

1шт.

16

BN69143

Boom Shutoff Dash

1шт.

17

BN69147

DECAL

Speed Control Dash

1шт.

18

BN69144

DECAL

boom function, upper, dash

1шт.

19

BN69145

Boom Function (Lower) Dash

1шт.

20

BN69149

DECAL

axle out, dash

1шт.

21

BN69150

Axle-In-Dash

1шт.

22

BN69148

DECAL

Foam Marker (MIN-MAX) Dash

1шт.

23

BN25292

DECAL

Caution-WT REST. Basic

1шт.

24

BN69453

DECAL

fuse and relay, NCB

1шт.

25

BN69489

DECAL

Pressure Line Info-NCB

2шт.

26

BN69607

DECAL

Wiring - Headlite - NCB

1шт.

27

BN69616

DECAL

fuse & relay boom center

1шт.

28

BN300299

Danger - Overhead Clear

1шт.

29

BN63916

DECAL

Foam Marker

1шт.

30

BN98355

DECAL

DICKEYjohn® Sprayer Constants - Console

1шт.

31

BN98356

DECAL

DICKEYjohn® Sprayer Constants - Monitor

1шт.

Выбрано товаров: 32
