Запчасти Case IH PATRIOT 150 (08-002) - BOOM ASSEMBLY (75) (09) - BOOMS

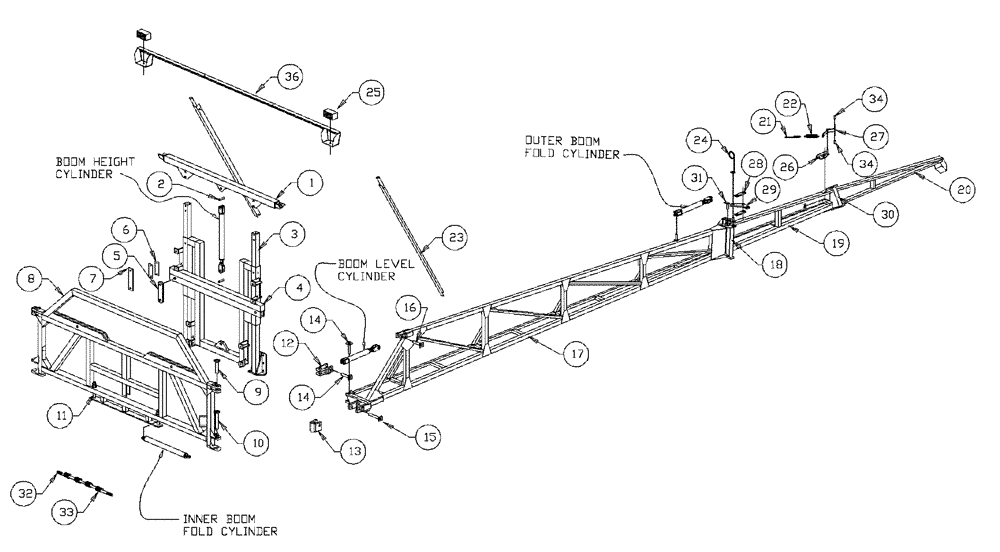

Схема запчастей Case IH PATRIOT 150 - (08-002) - BOOM ASSEMBLY (75) (09) - BOOMS
14
1
33
2
34
12
29
7
13
3
9
23
22
32
27
24
10
14
26
15
31
34
8
6
5
19
16
11
21
17
20
30
36
28
18
25
4

Артикул

Название

Примечание

Количество

1

BN63501

HANGER

1шт.

2

86632567

HEADED PIN,30.14mm OD x 66.55mm L

2шт.

3

BN67207

SLIDE

Rail RH

1шт.

Shown

1шт.

3

BN67206

SLIDE

Rail LH

1шт.

Same Part Of Slide - RH (Shown) P/N BN67207 But Opposite Side

1шт.

4

BN67216

RACK

Center Boom

1шт.

5

BN67214

HANGER

4шт.

6

BN23267

Spacer

8шт.

7

87506475

UNION

valve cap 1" arag

4шт.

8

BN09256

BOOM

center section

1шт.

9

BN300279

PIN

1 1/4" X 4 1/2"

2шт.

10

BN65220

PIN

1.25" x 6.875

2шт.

11

BN52020

BOLT

Hex, 1"-8 x 7 1/2", G5

2шт.

11

BN50092

NUT

1"-8 Std

2шт.

Associated Part Of Bolt - 1" x 7-1/2", P/N BN52020

1шт.

11

87553819

JAM NUT

1"-8 Hex, Jam

2шт.

Associated Part Of Bolt - 1" x 7-1/2", P/N BN52020

1шт.

12

BN300282

KIT

Swivel Assembly

2шт.

12

BN300286

BUSHING

4шт.

Parts Of Swivel Assembly, P/N BN300282

1шт.

12

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

4шт.

Parts Of Swivel Assembly, P/N BN300282

1шт.

13

BN9072

Pivot Assembly

2шт.

14

BN65152

PIN

1.00 x 4.75

4шт.

15

BN65153

PIN

1.00 x 6.25

2шт.

16

BN65154

PIN

1. 00 x 3.75

2шт.

17

BN24390A

BOOM

Boom Inner - RH

1шт.

Shown

1шт.

17

BN24391A

BOOM

Boom Inner - LH

1шт.

Same Part Of Boom Inner - RH (Shown) P/N BN24390 But Opposite Side

1шт.

18

BN9270

2шт.

19

BN24420

BOOM

Fold - RH

1шт.

Shown

1шт.

19

BN24421

BOOM

Fold - LH

1шт.

Same Part Of Boom Fold, P/N/ BN24420 But Opposite Side

1шт.

20

BN310869

BOOM

Breakaway - RH

1шт.

Shown

1шт.

20

BN310870

BOOM

Breakaway - LH

1шт.

Same Part Of Boom Breakaway - RH (Shown) P/N BN24440 But Opposite Side

1шт.

21

BN24504

LEVER

Takeup, Spring

2шт.

22

BN24468

SPRING

tension 1.25" x 5.5"

2шт.

23

BN63833

SUPPORT

Brace - RH

1шт.

Shown

1шт.

23

BN63833

SUPPORT

Brace - LH

1шт.

Opposite Side

1шт.

24

BN24490

BRACKET

hose guide

2шт.

25

BN66130

FLASHER LAMP

Signal, Amber 12V

2шт.

25

529068

BULB,#1156, 12V, 21W

2шт.

Service Parts For Ref. 25

1шт.

25

BN300878

LENS

amber

2шт.

Service Parts For Ref. 25

1шт.

25

BN300881

CAP

Lens, Black

2шт.

Service Parts For Ref. 25

1шт.

26

BN24500

BRACKET

75' Boom Latch RH

1шт.

Shown

1шт.

26

BN24499

BRACKET

75' Boom Latch LH

1шт.

Same Part Of Mount - Latch RH, P/N BN24500 But Opposite Side

1шт.

27

BN24452

LATCH

Mount - Breakaway, 75' boom

2шт.

28

BN21410A

BAR

1/2" x 1 1/2" x 5 3/4"

4шт.

29

BN21414

Bar

2шт.

30

BN24487

PIN

75' boom

2шт.

31

BN22456

PIN,19.05mm OD x 81.28mm L

boom pivot

2шт.

32

BN21197

SHAFT

1" x 36"

1шт.

33

BN27328

SPRING

Compression, 1.75" od x11"

2шт.

34

BN19820

SPACER,10.92mm ID x 22.1mm OD x 36.2mm L

plastic .37 id x 1.42

4шт.

35

BN65210

PIN

2шт.

36

BN69091

WORKING LIGHT

Flasher

1шт.

37

BN24328

BUMPER

Split Hose x 6"

2шт.

Not Shown

1шт.

38

BN75990

HOSE CLAMP

#16, Stainless Steel

4шт.

Not Shown

1шт.

39

BN303882

SUPPORT

Brace - Angle, Boom Mast

1шт.

Not Shown

1шт.

40

BN24791

BRACKET

Cross Brace

1шт.

Not Shown

1шт.

Выбрано товаров: 76
