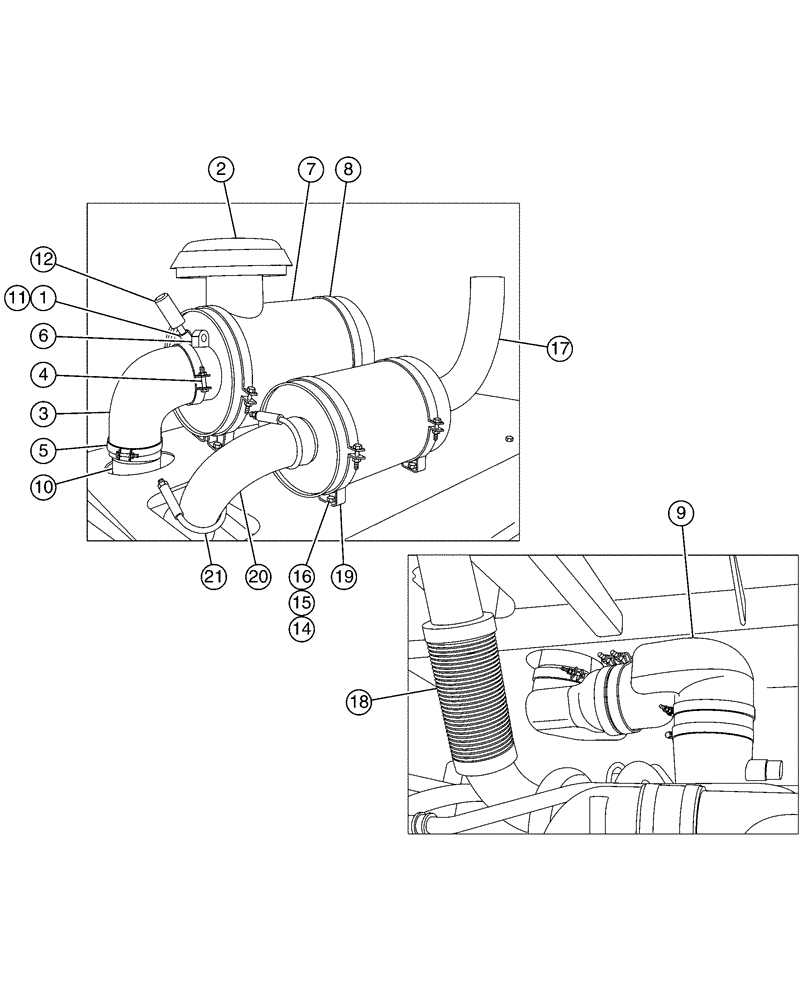

Запчасти Case IH PATRIOT 150 (03-004) - AIR CLEANER & SILENCER (01) - ENGINE

1

BN21894

ELBOW

90º 1/8" Pipe

1шт.

2

BN25636

Air Inlet

1шт.

3

BN25637

ELBOW

Reducer - 5 X 4 X 90º

1шт.

4

BN25675

CLAMP

T-Bolt 5 1/2"

1шт.

5

BN53823

SPECIAL CLAMP

"T" Bolt -4 1/2"

5шт.

6

BN66126

INDICATOR

Filter, Electric

1шт.

7

BN66657

Air Cleaner

1шт.

7a

BN63887

ELEMENT

Primary (Large)

1шт.

Service Parts For Ref. 7

1шт.

7b

BN63888

ELEMENT

Safety (Small)

1шт.

Service Parts For Ref. 7

1шт.

8

BN66658

Band

2шт.

9

BN66659

ELBOW

4" 90º

2шт.

10

BN66664

4" OD

3шт.

11

BN68257

TEE

1/8 NPT Male-Female

1шт.

12

BN68258

INDICATOR

Restrict, 25" H2O

1шт.

14

BN50056

LOCK NUT

5/16"-18, Whiz

4шт.

15

BN50141

WASHER

5/16, FW, G5

4шт.

16

BN50823

BOLT

5/16-18 X 1, HH, 5, PL

4шт.

17

BN66493

1шт.

18

BN66494

HOSE

Flex

1шт.

19

BN66495

MOUNTING PLATE

Bands

2шт.

20

BN66496

ELBOW

Exhaust, 3.5 90

1шт.

21

BN66497

CLAMP

Guillotine

2шт.

21a

BN29335

PROTECTION CAP

Rain - (Exhaust)

1шт.

Not Shown

1шт.
