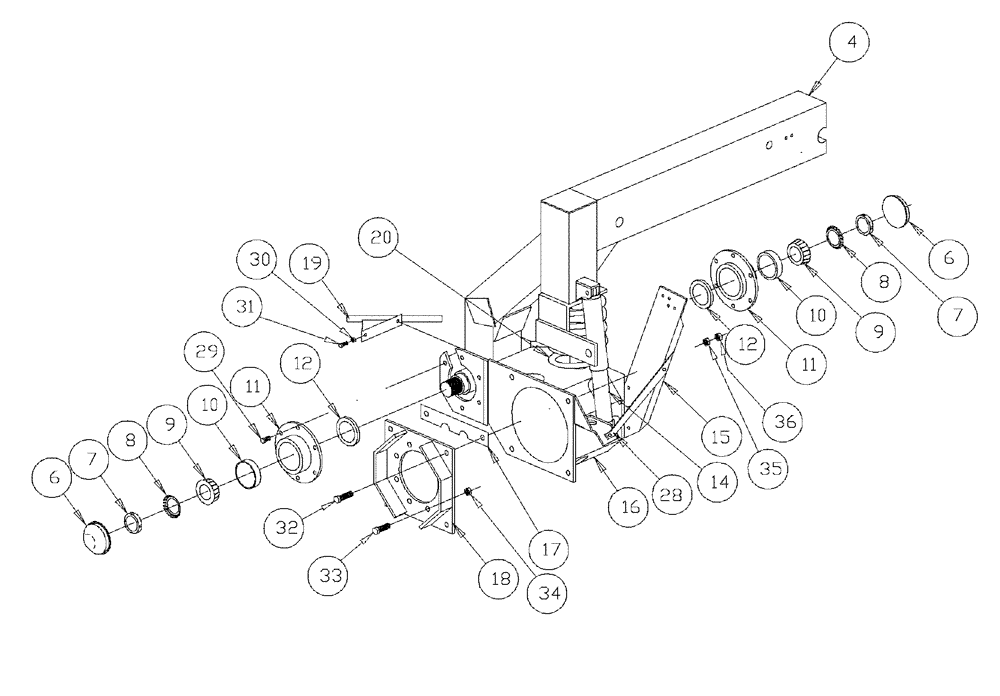

Запчасти Case IH PATRIOT 150 (04-007) - STRUT ASSEMBLY-REAR Suspension & Frame

4

BN63943

STRUT

Strut LH

1шт.

Shown

1шт.

4

BN63944

STRUT

Strut RH

1шт.

Same Part Of Strut LH, P/N BN63943 But Opposite Side

1шт.

Opposite

1шт.

6

BN68789

PACKAGE

Dust Cap w/Drill & Tap

4шт.

6a

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

4шт.

Associated Part Of Dust Cap w/Drill & Tap, P/N BN68789

1шт.

7

BN80443

LOCK NUT

4шт.

8

BN80444

LOCK WASHER,2.026" ID x 2.95" OD x 0.015"

lock, bearing

4шт.

9

BN31073

ROLLER BEARING,2" ID x 3.6718" OD x 1.1875"

4шт.

10

ST863

BEARING CUP,93.22mm OD x 23.81mm W

#3720

4шт.

11

BN29071

HUB

Assembly With Race and Seal

4шт.

Includes Ref. 10

1шт.

11a

BN29058

SHIM

8" Dia x 12 ga

1шт.

Associated Part Of Retainer, P/N BN29071

1шт.

12

BN31074

SEAL

4шт.

14

BN27333

SERVICE KIT

Shock, Bushing, Bolt, Nut

2шт.

15

BN63923

SUPPORT

LH

1шт.

Shown

1шт.

15a

BN63924

SUPPORT

RH

1шт.

Same Part Of Support - LH, P/N BN63923 But Opposite Side

1шт.

16

BN66423

BRACKET

LH (Model #7 Hub)

1шт.

Shown

1шт.

16a

BN66422

FRAME

RH (Model #7 Hub)

1шт.

Same Part Of Housing LH, P/N BN66423 But Opposite Side

1шт.

Opposite

1шт.

17

BN29081

4шт.

18

BN66894

PLATE

(Model #7 Hub)

2шт.

19

BN29690

DEFLECTOR

2шт.

20

BN24159

COIL SPRING

Extra H.D.

2шт.

20a

BN24261

RETAINER,13.46mm ID x 101.6mm OD x 6.35mm Thk

4" od x .53" id x 1/4"

4шт.

Associated Part Of Spring - Extra H.D, P/N BN24159

1шт.

28

BN65577

BRACKET

L.H. (Shown)

1шт.

Shown

1шт.

28a

BN65576

SUPPORT

R.H.

1шт.

Same Part Of Brace - LH, P/N BN65577 But Opposite Side

1шт.

29

BN50379

BOLT

1/2"-20 x 1", MH

12шт.

30

BN50064

NUT

3/8"-16, Stainless Steel

2шт.

31

BN50367

BOLT

3/8"-16 x 1", G5

2шт.

32

BN52320

BOLT

Hex, 5/8"-18 x 2 1/4", G8

16шт.

33

50726

BOLT Hex, 5/8"-18 x 2", G5

8шт.

34

BN50775

LOCK NUT

5/8"-18 UNF Center

8шт.

35

87343677

NUT

Hex, 5/8"-18, G8

16шт.

36

BN50775

LOCK NUT

5/8"-18 UNF Center

16шт.
