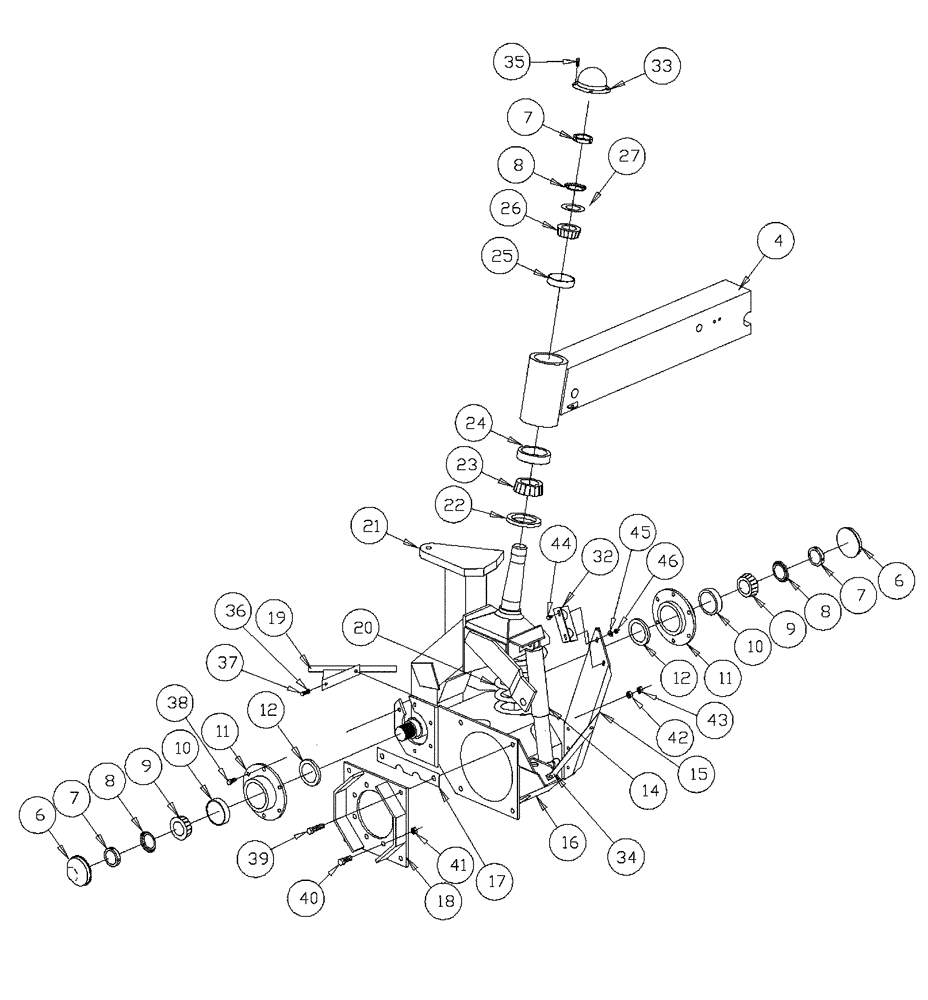

Запчасти Case IH PATRIOT 150 (04-006) - STRUT ASSEMBLY-FRONT Suspension & Frame

4

BN63949

FRONT AXLE

2шт.

6

BN68789

PACKAGE

Dust Cap w/Drill & Tap

4шт.

6a

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

4шт.

Associated Part Of Dust Cap w/Drill & Tap, P/N BN68789

1шт.

7

BN80443

LOCK NUT

6шт.

8

BN80444

LOCK WASHER,2.026" ID x 2.95" OD x 0.015"

lock, bearing

6шт.

9

BN31073

ROLLER BEARING,2" ID x 3.6718" OD x 1.1875"

4шт.

10

ST863

BEARING CUP,93.22mm OD x 23.81mm W

#3720

4шт.

11

BN29071

HUB

Assembly With Race and Seal

4шт.

Includes Ref. 10

1шт.

11a

BN29058

SHIM

8" Dia x 12 ga

1шт.

Associated Part Of Retainer, P/N BN29071

1шт.

12

BN31074

SEAL

4шт.

14

BN29316

SHOCK ABSORBER

10" Travel

2шт.

14a

BN29612

BUSHING

5/8" od x 17 ga x 1.31" Long

2шт.

Associated Part Of Shock Absorber, P/N BN29316

1шт.

14b

86992215

LOCK NUT,1/2"-13, GC

2шт.

Associated Part Of Shock Absorber, P/N BN29316

1шт.

14c

BN50894

BOLT

1/2"-13 x 2.5, HH, 5

1шт.

Associated Part Of Shock Absorber, P/N BN29316

1шт.

14d

BN53876

BOLT

1/2 x 2 1/2, BSH

1шт.

Associated Part Of Shock Absorber, P/N BN29316

1шт.

15

BN63920

SUPPORT

LH

1шт.

Shown

1шт.

15

BN63921

SUPPORT

Support - RH

1шт.

Same Part Of Support - LH P/N, BN63920 But Opposite Side

1шт.

15a

BN50367

BOLT

3/8"-16 x 1", G5

3шт.

Associated Part Of Support - RH, P/N BN63921

1шт.

15b

BN50131

LOCK NUT

3/8-16, CTR, PL

3шт.

Associated Part Of Support - RH, P/N BN63921

1шт.

16

BN66421

HOUSING

LH

1шт.

Shown

1шт.

Model #7 Hub

1шт.

16

BN66420

HOUSING

RH

1шт.

Same Part Of Housing LH, P/N BN66421 But Opposite Side

1шт.

Model #7 Hub

1шт.

Opposite

1шт.

17

BN67444

SHIM

Auburn hubs

4шт.

18

BN66894

PLATE

(Model #7 Hub)

2шт.

19

BN29690

DEFLECTOR

2шт.

20

BN24159

COIL SPRING

Extra H.D.

2шт.

20a

BN24261

RETAINER,13.46mm ID x 101.6mm OD x 6.35mm Thk

4" od x .53" id x 1/4"

4шт.

Associated Part Of Spring, P/N BN BN24159

1шт.

20b

BN66201

2 3/4" OD, 1.10 ID

1шт.

Associated Part Of Spring, P/N BN BN24159

1шт.

21

BN67914

STRUT

LH

1шт.

Shown

1шт.

21a

BN67915

STRUT

RH

1шт.

Opposite

1шт.

22

BN52026

SEAL

2шт.

23

9672528

ROLLER BEARING,69.85mm ID

2шт.

24

BN52024

RACE

2шт.

25

510892

BEARING CUP,112.71mm OD x 23.81mm W

2шт.

26

BN276475

ROLLER BEARING

2шт.

27

BN66137

WASHER

2шт.

32

BN63919

BRACKET

Hyd hose

2шт.

33

BN89874

DUST CAP

2шт.

34

BN65577

BRACKET

Brace - L.H.

1шт.

Shown

1шт.

34

BN65576

SUPPORT

Brace - R.H

1шт.

Same Part Of Brace - L.H, P/N BN65577 But Opposite Side

1шт.

35

BN65499

BOLT

5/16"-18 x 3/4"

8шт.

36

BN50064

NUT

3/8"-16, Stainless Steel

2шт.

37

BN50367

BOLT

3/8"-16 x 1", G5

2шт.

38

BN50379

BOLT

1/2"-20 x 1", MH

12шт.

39

BN52320

BOLT

Hex, 5/8"-18 x 2 1/4", G8

16шт.

40

50726

BOLT Hex, 5/8"-18 x 2", G5

8шт.

41

BN50775

LOCK NUT

5/8"-18 UNF Center

8шт.

42

87343677

NUT

Hex, 5/8"-18, G8

16шт.

43

BN50775

LOCK NUT

5/8"-18 UNF Center

16шт.

44

BN50367

BOLT

3/8"-16 x 1", G5

2шт.

45

BN50145

WASHER

3/8, G5

2шт.

46

BN50131

LOCK NUT

3/8-16, CTR, PL

2шт.
