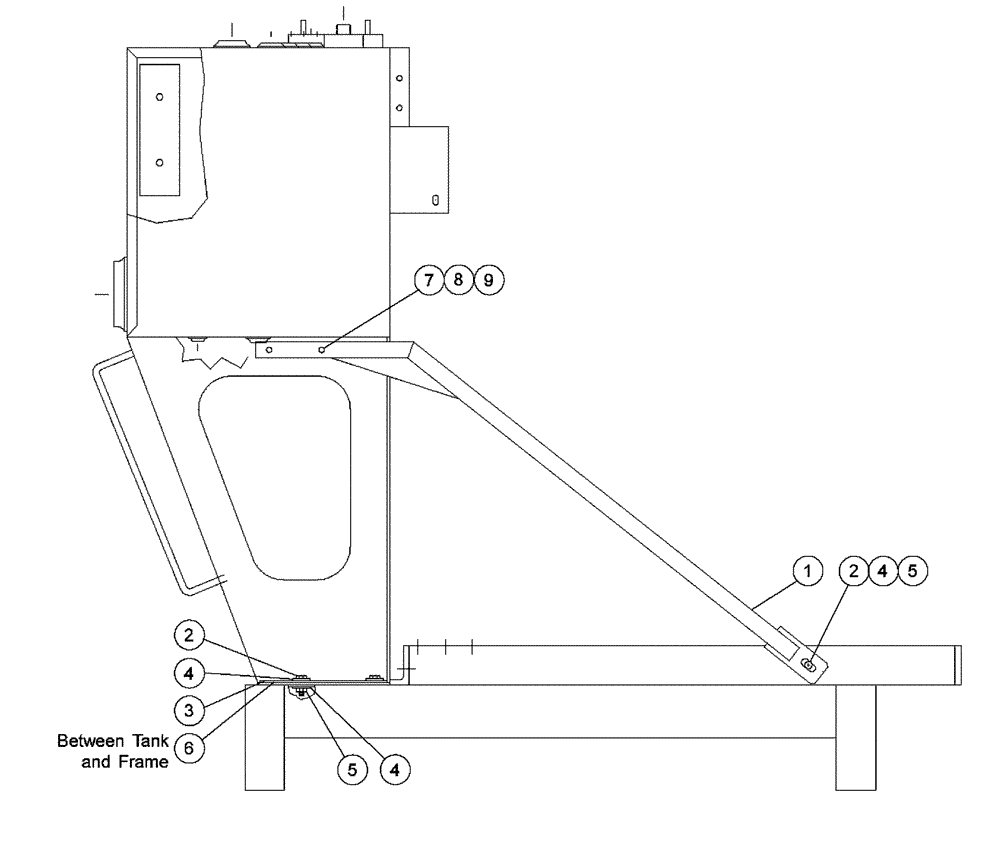

Запчасти Case IH PATRIOT 150 (04-005) - OIL TANK MOUNTING Suspension & Frame

1

BN300167

Brace

1шт.

2

BN300169

SCREW,1/2" - 13 x 1 3/4"

1/2"-13 x 1.75, PI, G8

5шт.

3

BN300172

PLATE

2шт.

4

BN300176

WASHER

Flat, 1/2, G8

10шт.

5

BN50998

LOCK NUT

1/2-13, Top, 8, PI

5шт.

6

63678

WASHER,6.4mm ID x 17mm OD x 3mm Thk

Shim-16 GA .409 SS 2.5 x 2.5

2шт.

Between Tank and Frame

1шт.

7

BN50964

BOLT

3/8-16 x 2 1/4, PI, Gr 8

2шт.

8

BN300175

WASHER

3/8", G8

2шт.

9

BN300174

LINKAGE

3/8-16, Top, PI, Gr 8

2шт.
