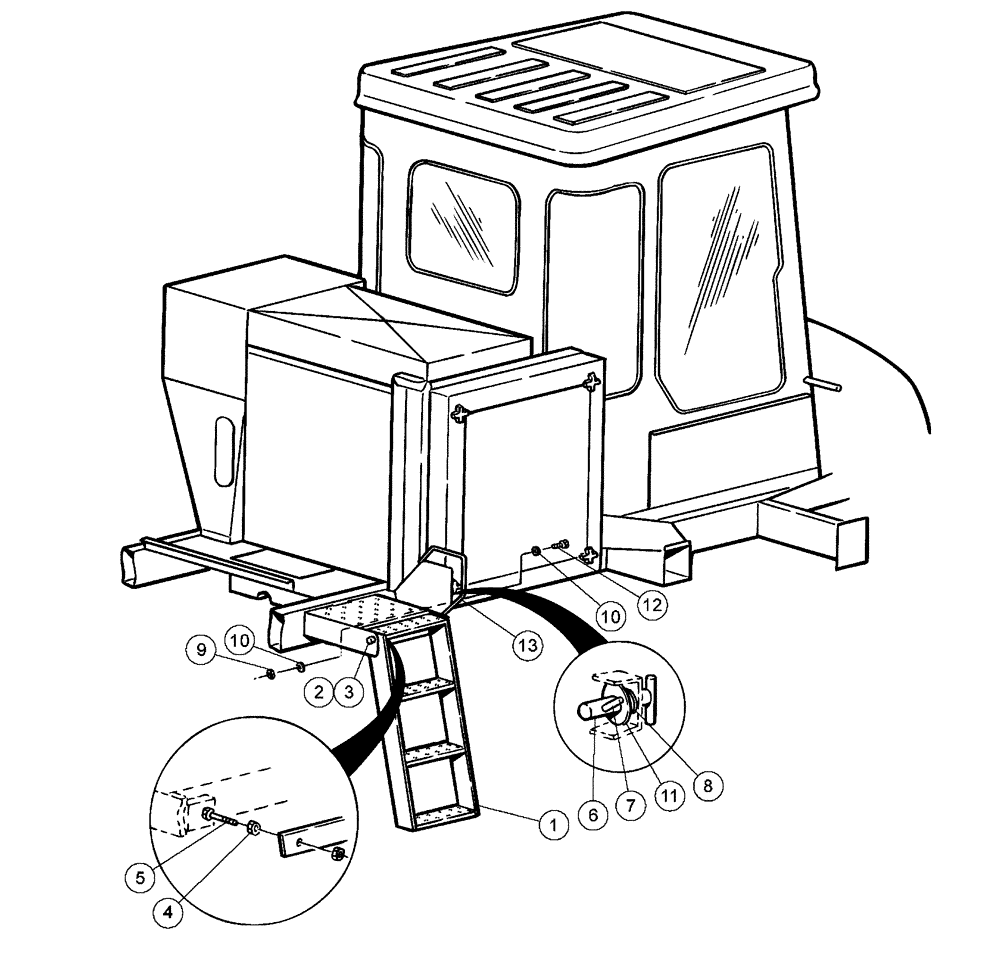

Запчасти Case IH PATRIOT 150 (04-004) - LADDER-RH Suspension & Frame

1

BN24311

LADDER

1шт.

2

BN25138

SHAFT

1" x 17.25"

1шт.

3

BN31444

PIN, ROLL

1/4 x 1 1/2

1шт.

4

86992215

LOCK NUT,1/2"-13, GC

4шт.

5

BN50973

BOLT

1/2"-13 x 2.75, HH, G5

2шт.

6

BN25257

PIN

Side Ladder

1шт.

1

BN31444

PIN, ROLL

1/4 x 1 1/2

1шт.

8

BN31937

SPRING

Compression, .905 x .765 2

1шт.

9

BN50061

LOCK NUT

3/8"-16, UNC, Whiz

4шт.

10

BN50145

WASHER

3/8, G5

8шт.

11

BN50157

WASHER

3/4, G5

1шт.

12

BN50403

BOLT

Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

13

BN67174

Ladder Latch

1шт.
