Запчасти Case IH PATRIOT 150 (11-004) - CHEMICAL INDUCTOR - SPHERICAL Options

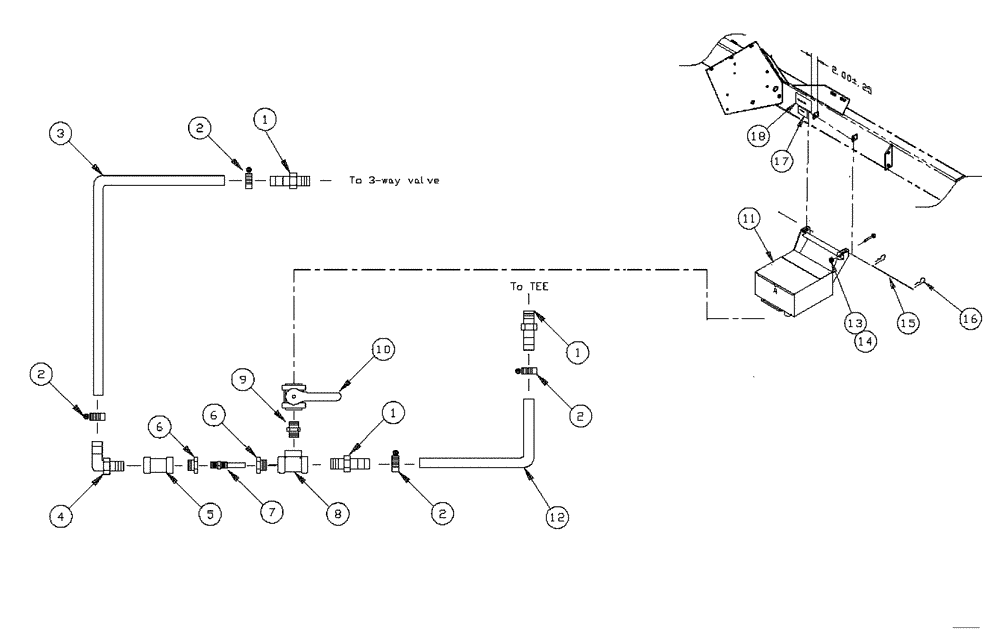

Схема запчастей Case IH PATRIOT 150 - (11-004) - CHEMICAL INDUCTOR - SPHERICAL Options
6
1
3
2
17
1
18
11
2
2
8
12
16
1
4
15
6
14
7
5
2
13
9
10

Артикул

Название

Примечание

Количество

1

413083A1

PIPE FITTING,1-1/2" Male Thread x 1-1/2" Hose Barb

Hose Barb, 1 1/2"

3шт.

2

BN76093

HOSE CLAMP

#28, SS

4шт.

3

BN301615

HOSE

1.5" EPDM x 36"

1шт.

4

BN73723

ELBOW,90 Degree Elbow, 1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1-1/2" NPT x 1-1/2" Hose Barb, Poly

1шт.

5

BN73738

COUPLING

1-1/2" Poly Pipe

1шт.

6

BN73716

BUSHING,1-1/2" Male NPT x 3/4" Female NPT, Poly

1.5 x .75 Reducer Poly

2шт.

7

BN301610

VENTURI

Rework

1шт.

8

BN73714

TEE,1-1/2" Female NPT x 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

1-1/2" NPT, Poly

1шт.

9

BN73715

NIPPLE,1-1/2" Short Poly Nipple

1 1/2" Short Poly

1шт.

10

BN73711

VALVE,1-1/2" NPT x 1-1/2" NPT

1 1/2" Ball

1шт.

11

BN24269

TANK

Chemical Inductor

1шт.

12

BN53615

FLEXIBLE HOSE,1.50" ID x 48.00"

EPDM

1шт.

13

BN50072

NUT

Hex, 1/2"-13, G5, PI

2шт.

14

50285

BOLT Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

15

BN24277

PIN

3/8" SS rod x 13.75"

1шт.

16

BN71006

COTTER PIN

1/8", #11

2шт.

17

BN63998

DECAL

Caution - Chemicals

1шт.

18

BN23877

CAUTION DECAL

Chemical

1шт.

Выбрано товаров: 18
