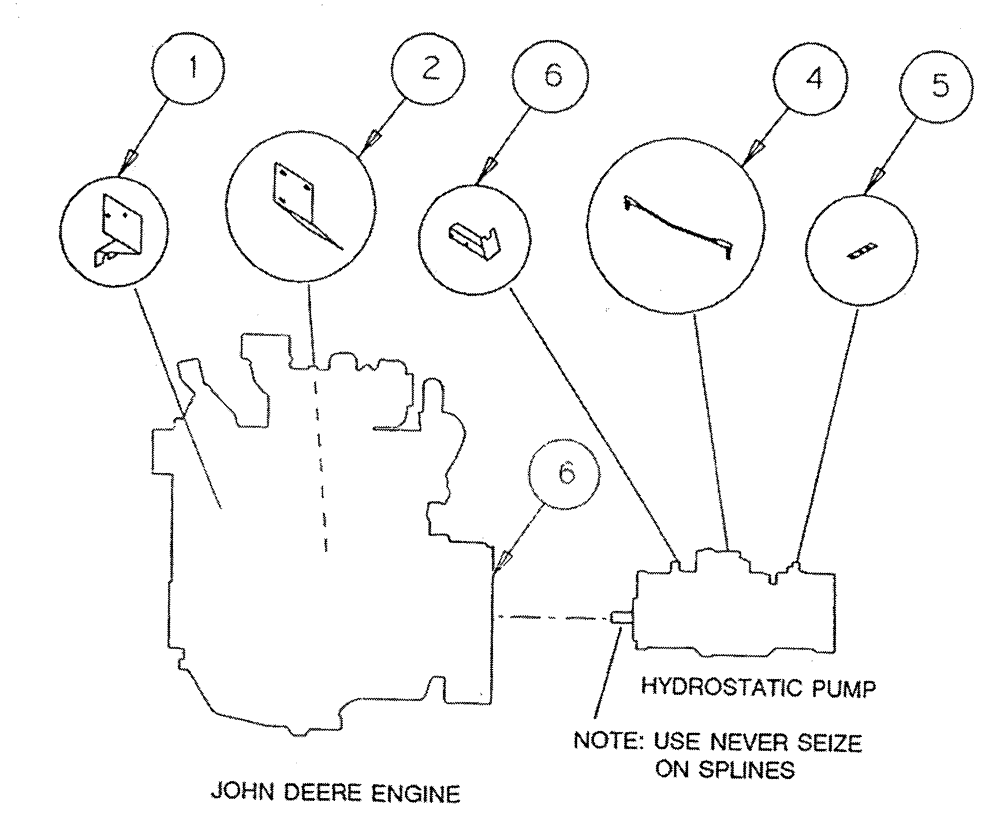

Запчасти Case IH PATRIOT (03-002) - ENGINE ASSEMBLY (01) - ENGINE

1

BN29184

Throttle Cable, Start Serial: 08910008

1шт.

BN29578

Throttle Cable, Serial Range: -08010007

1шт.

BN29257

CABLE,Throttle Cable, 2133.6mm L

Control, 84"

1шт.

2

BN29094

Starter Relay

1шт.

3

BN29188

MOUNTING PLATE

Shifter Cable

1шт.

BN29256

CABLE,2438.4mm L

Control, 96"

1шт.

BN29258

CLEVIS

Assembly With Pin

1шт.

4

BN29950

LINKAGE

Assmbly, Shifter 770, Start Serial: 12910031

1шт.

4a

BN29949

ROD

3/8"-24 x 10.5"

1шт.

4b

BN40245

BALL JOINT

3/8-24 grommet

2шт.

4c

86509310

NUT,3/8" - 24, Gr 5

2шт.

5

BN29185

MOUNTING PLATE

7 ga 304 3/4" x 3"

1шт.

6

BN310027

PLATE

& Coupling Assembly

1шт.

BN309994

FLYWHEEL

Coupler Only

1шт.

BN98190

PLATE

Mount Only

1шт.
