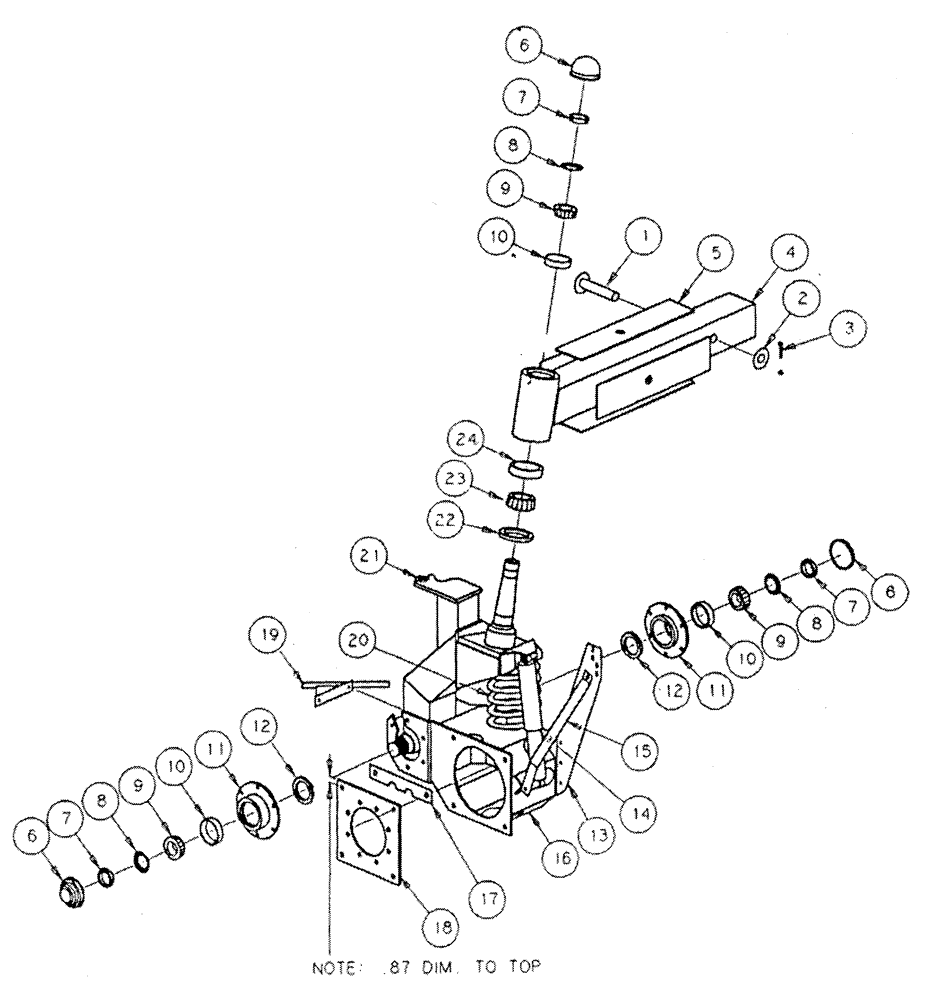

Запчасти Case IH PATRIOT (04-001) - FRONT STRUT ASSEMBLY (S/N 06920109 TO) Suspension & Frame

1

BN29560A

PIN

2шт.

2

BN50163

2шт.

3

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

2шт.

BN50131

LOCK NUT

3/8-16, CTR, PL

2шт.

4

BN29042

FRONT AXLE

2шт.

5

BN29574

LINER

8шт.

BN50779

BOLT,5/16"-18 X 1.00", EH, DOR

Elevator

8шт.

BN50056

LOCK NUT

5/16"-18, Whiz

8шт.

6

BN80442

DUST CAP

6шт.

7

BN80443

LOCK NUT

6шт.

8

BN80444

LOCK WASHER,2.026" ID x 2.95" OD x 0.015"

lock, bearing

6шт.

9

BN31073

ROLLER BEARING,2" ID x 3.6718" OD x 1.1875"

6шт.

10

ST863

BEARING CUP,93.22mm OD x 23.81mm W

#3720

6шт.

11

BN29071

HUB

Assembly With Race and Seal

4шт.

Includes Ref. 10

1шт.

BN29058

SHIM

8" Dia x 12 ga

1шт.

12

BN31074

SEAL

4шт.

13

BN29758

2шт.

14

BN29316

SHOCK ABSORBER

10" Travel

2шт.

BN29612

BUSHING

5/8" od x 17 ga x 1.31" Long

4шт.

15

BN29760

2шт.

16

BN29038

HOUSING

L.H.

1шт.

Shown

1шт.

BN29037

HOUSING

R.H.

1шт.

Opposite

1шт.

17

BN29081

4шт.

18

BN24085

PLATE

2шт.

50726

BOLT Hex, 5/8"-18 x 2", G5

8шт.

BN50775

LOCK NUT

5/8"-18 UNF Center

8шт.

19

BN29690

DEFLECTOR

2шт.

20

BN29315

2шт.

21

BN29048

L.H.

1шт.

Shown

1шт.

BN29047A

STRUT

R.H.

1шт.

Opposite

1шт.

22

BN52015

SEAL

2шт.

23

BN276475

ROLLER BEARING

2шт.

24

510892

BEARING CUP,112.71mm OD x 23.81mm W

2шт.
