Запчасти Case IH PATRIOT (09-002) - LIQUID PLUMBING - BOOMS Liquid Plumbing

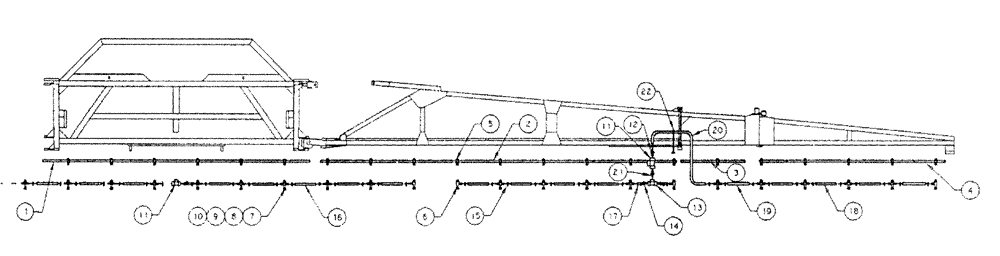

Схема запчастей Case IH PATRIOT - (09-002) - LIQUID PLUMBING - BOOMS Liquid Plumbing
2
8
5
9
4
1
13
11
15
14
17
18
10
18
6
7
19
3
21
11
22
12
20

Артикул

Название

Примечание

Количество

1

BN89812

124"

1шт.

2

BN89813

TUBE

164.5"

2шт.

3

BN89810

TUBE

29.5"

2шт.

BN89811

TUBE

85.25"

2шт.

BN29599

PIN,9.53mm OD x 64mm L

Rework Bolt 3/8"-16 x 2.75

16шт.

BN71006

COTTER PIN

1/8", #11

16шт.

5

BN74448

CLAMP

1" square tubing

36шт.

6

BN74618

Shank - Single 3/4"

8шт.

7

BN74617

NOZZLE

1 way double, with cap, 3/4" SHA

28шт.

8

BN74449

36шт.

9

BN74418

36шт.

10

BN74619

CAP

36шт.

11

BN73629

TEE

1" Poly Pipe

3шт.

12

BN53666

FITTING

Barb -1" x 3/4"

4шт.

13

BN73560

TEE

3/4"

2шт.

14

BN73561

FITTING

Hose - 3/4"

4шт.

15

BN75978

HOSE CLAMP

SS, No. 12 adj., HS, .56-1.25

72шт.

16

BN53748

HOSE,0.75" ID x 30.00"

2шт.

17

BN53737

FLEXIBLE HOSE,0.75" ID x 7.50"

6шт.

18

BN53738

FLEXIBLE HOSE,0.75" ID x 18.50"

24шт.

19

BN53739

3/4" x 42.0"

2шт.

20

BN53749

HOSE,0.75" ID x 36.00"

2шт.

21

BN73649

NIPPLE,1" x 3/4" Poly Reducing Nipple

1" x 3/4" Poly

2шт.

22

BN24059

Hose

2шт.

Выбрано товаров: 24
