Запчасти Case IH PATRIOT (09-001) - LIQUID PLUMBING - 500 GAL TANK (S/N 06920104 TO) Liquid Plumbing

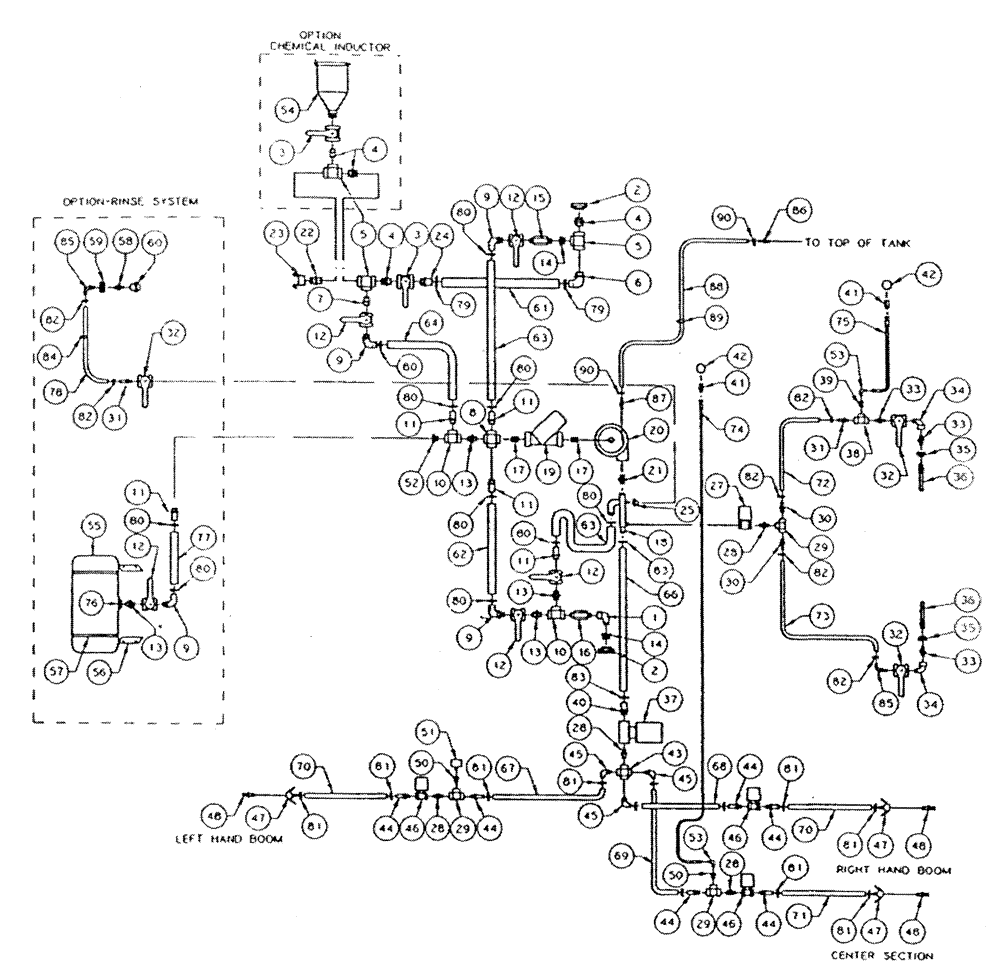

Схема запчастей Case IH PATRIOT - (09-001) - LIQUID PLUMBING - 500 GAL TANK (S/N 06920104 TO) Liquid Plumbing
39
46
11
44
15
4
50
4
50
89
68
80
88
29
70
90
75
63
46
82
38
9
59
45
60
34
12
82
47
6
81
10
72
62
64
12
11
36
81
76
81
79
52
44
74
61
48
80
45
5
14
42
86
12
82
85
30
21
47
32
22
53
28
63
24
44
37
67
66
45
32
25
13
69
40
30
28
31
9
78
46
9
80
71
85
8
48
20
73
63
3
4
35
23
27
53
90
10
80
83
36
62
79
81
87
16
7
11
56
34
81
57
13
11
31
13
81
41
51
33
70
11
81
44
1
33
12
42
46
33
14
28
28
80
80
41
58
77
44
54
17
47
29
82
17
5
15
82
12
60
2
80
9
29
2
81
50
80
32
3
43
13
44
84
19
55
35

Артикул

Название

Примечание

Количество

BN33610

Complete Chemical Inductor

1шт.

BN33611

Complete Rinse System

1шт.

1

BN73730

ELBOW,1-1/2", Poly

Straight, 1 1/2" Poly

1шт.

2

BN73784

FITTING

Bulkhead - 2"

2шт.

3

BN73761

VALVE,2" NPT x 2" NPT

Ball, 2" Full Port, Chemical Inductor

1шт.

4

BN73783

NIPPLE

2", Chemical Inductor

2шт.

5

BN73779

TEE,2" Poly Tee

2" Poly Pipe, Chemical Inductor

2шт.

6

401875A1

FITTING,2" Male Thread x 2" 90 Degree Hose Barb

2" MNPT x 2" Hose Barb, Poly

1шт.

7

BN73780

NIPPLE

Reducing - 2" x 1-1/2"

1шт.

8

BN73728

FITTING,1-1/2" NPT

Cross - 1&1/2" NPT Poly

1шт.

9

BN73723

ELBOW,90 Degree Elbow, 1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1-1/2" NPT x 1-1/2" Hose Barb, Poly

3шт.

10

BN73714

TEE,1-1/2" Female NPT x 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

1-1/2" NPT, Poly

2шт.

11

413083A1

PIPE FITTING,1-1/2" Male Thread x 1-1/2" Hose Barb

Hose Barb, 1 1/2", Rinse System

4шт.

12

BN73711

VALVE,1-1/2" NPT x 1-1/2" NPT

1 1/2" Ball, Rinse System

4шт.

13

BN73715

NIPPLE,1-1/2" Short Poly Nipple

1 1/2" Short Poly, Rinse System

3шт.

14

BN73787

SLEEVE

Bushing - 2"-1 1/2"

2шт.

15

BN73722

NIPPLE, LUBE,1-1/2" Male NPT x 1-1/2" Male NPT, 6" Long

NIPPLE 1-1/2" x 6" Poly

1шт.

16

BN73732

LUBE NIPPLE

1-1/2" x 4"

1шт.

17

BN73320

NIPPLE

1-1/2" SS

2шт.

18

BN29958

MANIFOLD

Liq. Product 770

1шт.

19

BN73718

1шт.

BN24084

FILTER STRAINER

30 Mesh for Filter #73718

1шт.

20

BN53670

HYDROSTATIC PUMP

Complete Product Pump

1шт.

See Fig. 06-009 for Seal & Repair Parts

1шт.

BN53670R

REMAN-HYDROSTAT PUMP

PATRIOT LIQUID PLUMBING - 500 GAL TANK S/N 06920104 TO (2/92 - 11/92)

1шт.

BN53670C

CORE-HYDROSTAT PUMP

Return Number

1шт.

21

BN73270

NIPPLE

Close 1.25 NPT SS

1шт.

22

BN2396382

COUPLING,2" Male Adapter-2" Male Thread

F 2" Poly

1шт.

23

BN22901

DUST CAP,2" Cam Lever Dust Cap

2" Cam Lever

1шт.

24

BN73781

FITTING,2" Male NPT x 2" Hose Barb, Poly

2" NPT x 2" Hose Barb

1шт.

25

BN73571

CAP

3/4' NPT

1шт.

26

BN73604

PLUG,1" Poly Pipe Plug

1" NPT, Pipe Poly

2шт.

27

87546542

HYDRAULIC VALVE

Electric 1"

1шт.

28

BN73648

NIPPLE

1" Short Poly Pipe

4шт.

29

BN73629

TEE

1" Poly Pipe

3шт.

30

BN53666

FITTING

Barb - 1" x 3/4" Hose shank

2шт.

31

BN73561

FITTING

Hose - 3/4", Rinse System

1шт.

32

BN73564

VALVE

3/4" Ball Poly 2 Way, Rinse System

2шт.

33

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

Pipe, 3/4"

3шт.

34

BN73566

ELBOW,3/4" Male NPT x 3/4" Female NPT, Poly

90, Street, 3/4" Poly

2шт.

35

BN73563

BULKHEAD

2шт.

36

BN53671

AGITATOR

2шт.

37

BN98127

HYDRAULIC VALVE

1" Bundle - Liquid System

1шт.

38

BN73560

TEE

3/4"

1шт.

39

BN73550

BUSHING

3/4" x 1/4"

1шт.

40

BN29891

FITTING

Hosebarb 1" NPT x 3", SS

1шт.

41

BN53733

ADAPTER

1 /4" NPT x 9/16" JIC

2шт.

42

BN98104

ELECTRICAL GAUGE

160 PSI Panel Mount

2шт.

43

BN53663

COUPLING

1"

1шт.

44

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

6шт.

45

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

Hose Barb, 1" NPT x 1" HS, 90°

3шт.

46

BN53495

VALVE

Ball

3шт.

BN24083

MOUNTING PLATE

7 GA HRS 3.0 x 5.75/2

3шт.

47

BN53668

COUPLING

1" Female, HS SHK

3шт.

48

BN53667

COUPLING

Male - 1"

3шт.

50

BN2390261

REDUCER

Bushing - 1" x 1 /4"

2шт.

51

BN98078

SENSOR

Pressure Transducer

1шт.

52

BN73731

PLUG,1-1/2" Male NPT, Poly

1 1/2" Poly Pipe

1шт.

53

BN53734

ELBOW

90° 1/4" NPT x 9/16" JIC

2шт.

54

BN29600

TANK

Chemical, Chemical Inductor

1шт.

55

BN22400

TANK

Rinse System

1шт.

56

BN29582

MOUNTING PLATE

L.H., Rinse System

1шт.

BN29583

MOUNTING PLATE

RH (Rinse System)

1шт.

57

BN29824

BAND

Rinse System

2шт.

58

BN73649

NIPPLE,1" x 3/4" Poly Reducing Nipple

1" x 3/4" Poly

1шт.

59

BN73563

BULKHEAD

Rinse System

1шт.

60

29568

NOZZLE

Rinse 360 Degree

1шт.

61

BN53775

2" x 29"

1шт.

61

BN57351

2" x 24-1/2", Chemical Inductor

1шт.

62

BN53753

1-1/2" x 23"

1шт.

63

BN53754

HOSE,12.50"

2шт.

64

BN53784

1-1/2" x 29"

1шт.

64

BN53755

HOSE

1-1/2" x 21", Chemical Inductor

1шт.

66

BN29909

HOSE

1.25" ID x 39" EPDM

1шт.

67

BN53745

1" x 190"

1шт.

68

BN53746

HOSE,1.00" ID x 250.00"

EPDM

1шт.

69

BN53744

FLEXIBLE HOSE,1.00" ID x 65.00"

1шт.

70

BN53756

HOSE,42.00"

2шт.

71

BN53743

FLEXIBLE HOSE,1.00" ID x 33.00"

1шт.

72

BN53740

HOSE,0.75" ID x 57.00"

1шт.

73

BN53783

HOSE

3/4" x 39"

1шт.

74

BN29999

HOSE

3/8" id EPDM x 260"

1шт.

75

BN67392

HOSE

3/8" x 144" EPDM

1шт.

76

BN73733

FITTING

1 1/2" Bulkhead

1шт.

77

BN53763

1-1/2" x 14", Rinse System

1шт.

78

BN53765

HOSE,85.00"

Rinse System

1шт.

79

BN76056

HOSE CLAMP

#36

2шт.

80

BN76093

HOSE CLAMP

#28, SS, Rinse System

8шт.

81

BN75990

HOSE CLAMP

#16, Stainless Steel

12шт.

82

BN75978

HOSE CLAMP

SS, No. 12 adj., HS, .56-1.25, Rinse System

4шт.

83

BN76084

HOSE CLAMP

Adj. #24, SS

2шт.

84

86625038

CLAMP,25.4mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

85

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, 90°, Rinse System

1шт.

86

BN72039

Hose - 1/4" x 1/4"

1шт.

87

BN72040

FITTING,1/8" MPT x 1/4" HB

Hose Barb, 1/8" NPT x 1/4" ID HS

1шт.

88

BN53785

HOSE,74.00"

1шт.

89

BN41859

CLAMP

9/16", Vinyl Covered

1шт.

90

BN76094

HOSE CLAMP

SS #M4

2шт.

BN72041

HOSE

1/4" Bulk EPDM Discharge

1шт.

BN27905

HOSE,19.05mm ID x 304.8mm L

EPDM 3/4" ID x 12"

1шт.

BN53479

HOSE,1.00" ID BULK

EPDM Discharge

1шт.

BN53621

HOSE,1.50" ID BULK

EPDM Suction

1шт.

BN29564

HOSE

2" Bulk EPDM Suction

1шт.

BN29498

SKID PLATE

500 Gallon

1шт.

BN29561

500 Gallon

1шт.

BN29577

STRAP

Tank - 500 Gallon

3шт.

BN50707

BOLT

J-3/8-16 x 4.5

6шт.

Выбрано товаров: 107
