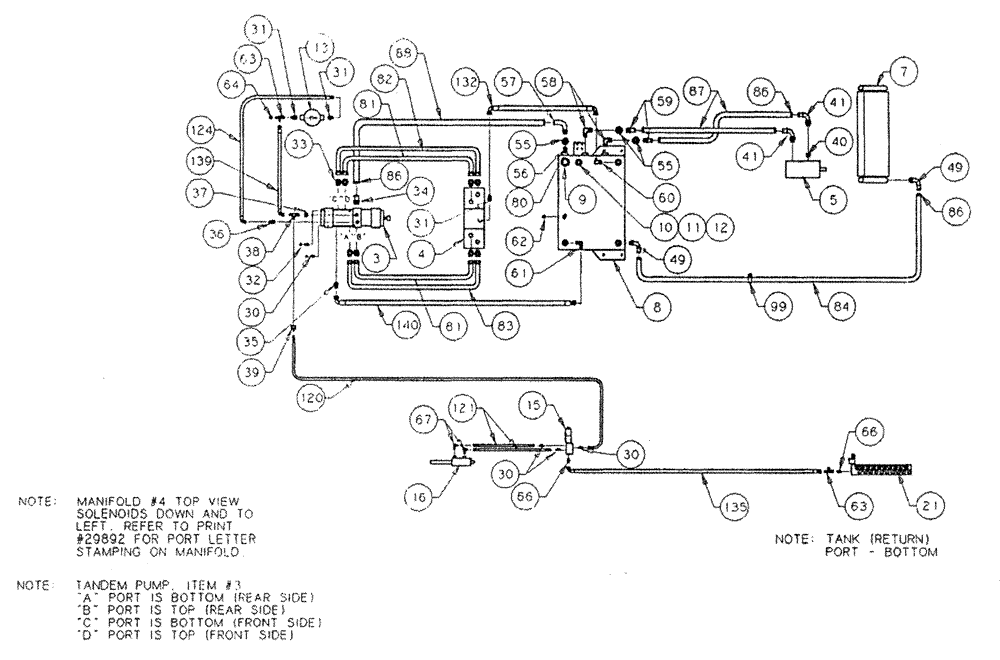

Запчасти Case IH PATRIOT (06-003) - HYDRAULIC PLUMBING - HYDROSTATIC PUMP (S/N 05920092 AND UP) Hydraulic Plumbing

3

BN29007

Tandem Hydrostatic

1шт.

BN98230

SEAL KIT

1шт.

4

BN29010

Manifold

1шт.

See Fig. 06-006 For Seal & Repair Parts

1шт.

5

BN320694

PUMP

Tandem/Steering & Spray Motor

1шт.

BN98234

SEAL

Shaft for 29238

1шт.

BN98235

REPAIR KIT

w/Wear Plates and Seals

1шт.

7

BN23339

Hyd Oil

1шт.

8

BN29245

Hyd Oil

1шт.

9

BN29381

Dip

1шт.

10

BN42073

BREATHER

Hyd Tank

1шт.

11

BN72160

1/2" NPT x 6

1шт.

12

BN72165

COUPLING

1/2" NPT

1шт.

13

BN29338

Hydrostatic Pump

1шт.

BN29359

Element

1шт.

15

BN52306

SOLENOID VALVE

Brake Actuator

1шт.

BN52307

Seal for 52306

1шт.

BN52308

for 52306

1шт.

BN9574S

12 V for 52306

1шт.

16

BN53689

CYLINDER

Hyd Parking

1шт.

BN98180

SEAL KIT

1шт.

21

BN29951

10 Bank

1шт.

See Fig. 06-007 for Seals & Repair Pans

1шт.

BN24110

Valve

1шт.

30

BN51589

FITTING

STR.-9/16-18 O-Ring x 7/16-20 JIC

9шт.

31

BN444003

FITTING

Adapter Str.-1 1/16-12 O-Ring x 3/4-16 JIC

3шт.

32

BN21531

NUT,7/16"-20, 37 Degree

2шт.

33

BN57223

FITTING

STR 1-5/16 12 O-Ring x 1-7/16 12 Male Flat Face

8шт.

BN53730

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

Flat face (for 57223)

8шт.

34

BN53659

FITTING

STR--1 5/8-12 O-Ring x 1-1/4" Hose

1шт.

35

BN444001

FITTING

STR-1-1/16-12 O-Ring x 1-1/18-12 JIC

1шт.

36

BN444008

FITTING

STR-7/8-14 O-Ring x 3/4-16 JIC

1шт.

37

21656

HYDRAULIC HOSE

1/2" x 20" fl, 1/2" fjic x 1/2" fjic

1шт.

38

BN21658

ADAPTER

1/2 NPT x 3/4-16 JIC

1шт.

39

BN53714

FITTING

Reducer - 3/4-16 JIC F x 7/16-20 JIC M

1шт.

40

BN53678

1-5/8-12 x 1-5/16-12 O-Ring

1шт.

41

BN21240

FITTING

Barb-90° 1-5/16-12 O-Ring x 1" Hose

2шт.

49

BN21386

FITTING

90° 1" NPT x 1" Hose

2шт.

55

BN21372

VALVE

Gate, 1" NPT

3шт.

56

BN72280

LUBE NIPPLE

1" NPT (Close)

1шт.

57

BN21374

FITTING

90° 1" NPT x 1-1/4" Hose

1шт.

58

BN51598

90° 1" NPT

2шт.

59

BN22432

FITTING

Barb Str 1" NPT x 1" Hose

2шт.

60

BN61572

FITTING

90° 3/4" NPT x 3/4-16 JIC

1шт.

61

BN442004

FITTING

90° 3/4" NPT x 1-1/16-12 JIC

1шт.

62

BN72220

PLUG

3/4" NPT Drain

1шт.

63

BN53452

TEE

3/4 M6 JIC

2шт.

64

BN22431

CROWN NUT,3/4"-16, 37 Degree

1шт.

66

BN60440

ADAPTER

STR-9/16-18 O-Ring x 3/4-16 JIC

2шт.

67

BN21401

ELBOW,90 Degree 3/8" NPT x 7/16"-20 JIC

2шт.

80

BN21365

BULB

Sight Gauge

1шт.

Not Shown

1шт.

81

BN29159

TUBE

Steel, 1"

2шт.

82

BN29160

TUBE

Steel, 1"

1шт.

83

BN29161

TUBE

Steel, 1"

1шт.

84

BN54180

Suction, 1" ID

1шт.

86

BN75990

HOSE CLAMP

#16, Stainless Steel

8шт.

87

BN54179

Suction, 1" ID

2шт.

88

BN54182

Suction, 1-1/4" ID

1шт.

99

BN570018

CLAMP

vinyl coated 1-7/16

1шт.

105

BN54146

HOSE

1/4" x 14", Serial Range: -12910031

2шт.

120

BN54184

HOSE

1/4" x 124"

1шт.

121

BN54185

HOSE

1/4" ID x 64" 100 R1

2шт.

124

BN53489

HOSE,0.50" ID x 26.00", SAE 100R2

1шт.

132

BN54168

1/2" x 44"

1шт.

135

BN54183

HOSE,0.50" ID x 34.00", SAE 100R2

1шт.

139

BN54191

HOSE

1/2" x 18"

1шт.

140

BN53563

HOSE,0.75" ID x 54.00"

1шт.
