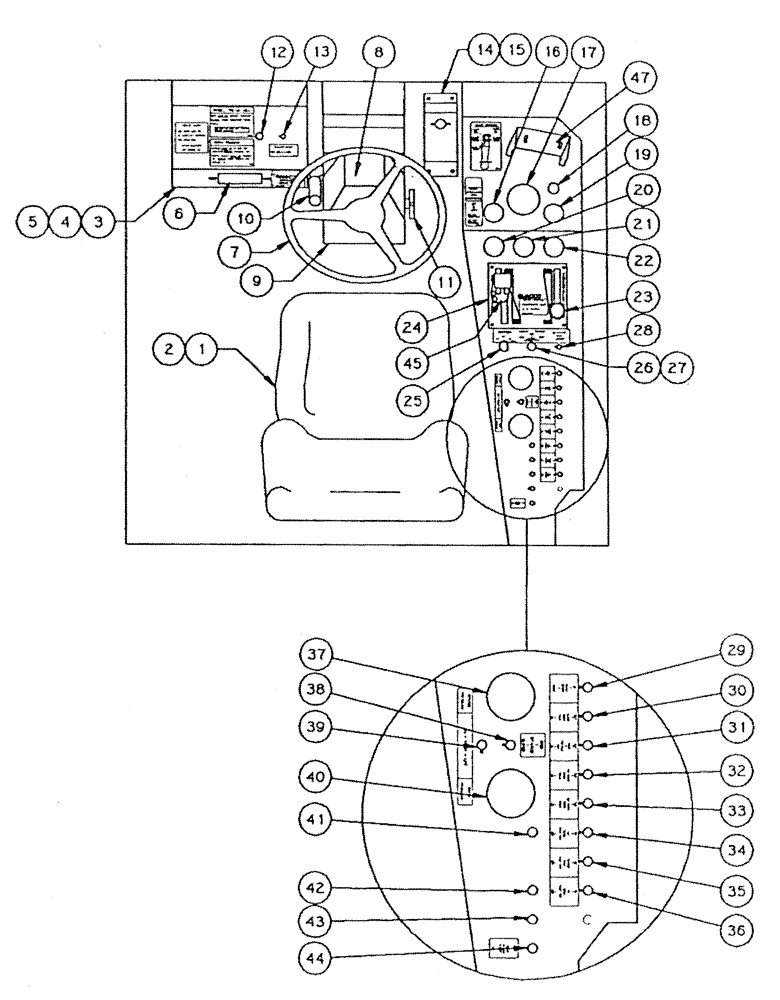

Запчасти Case IH PATRIOT (01-002) - CONTROLS - CAB INTERIOR (S/N 04920076 AND UP) Cab Interior

1

BN68852

SEAT

Magnum 200 (Gray)

1шт.

BN29361

SAFETY BELT

Retractable BL

1шт.

BN29182

L.H. Seal

1шт.

BN29183

R.H. Seat

1шт.

3

BN29194

1шт.

4

BN29329

COVER

, Serial Range: (Access-Radio)

1шт.

5

BN21559

HOLDER

Manuals

1шт.

6

BN57219

RADIO

JVC AM-FM-Cassette

1шт.

BN57220

SPEAKER

JVC (Set of 2)

1шт.

BN57222

ANTENNA

Radio

1шт.

7

BN29230

Steering

1шт.

BN29231

CAP

Steering

1шт.

BN29233

HYDRAULIC STEERING

Control, Orbitrol

1шт.

BN29235

STEERING COLUMN

1шт.

8

BN29179

MOUNTING PLATE

Steerng Control

1шт.

BN29169

(Slot) To S/N 10910028

1шт.

9

BN29181

Steering Column (Lower)

1шт.

10

BN29274

GRIP

Black-Vinyl, .5 id x 4" Long

1шт.

BN29178

PIN

Tilt Steer

2шт.

BN30670

SPRING

Tilt Steer

2шт.

11

BN29392

KNOB

3" With 3/8"-16 Female Thread

1шт.

BN50777

BOLT

Carriage

1шт.

12

BN29780

INDICATOR LIGHT

Red, 12V

1шт.

13

BN23465

SWITCH

Parking Brake

1шт.

14

BN29618

MOUNTING PLATE

10 ga HRS 3.5 x 10.5

1шт.

15

BN29522

SWITCH

Dimmer Floor Mount

1шт.

16

BN29465

GAUGE

Restriction Indicator-Air Filter

1шт.

17

BN29277

TACHOMETER

(0 - 4000 RPM)

1шт.

18

BN16018

ALARM

Low Hopper

1шт.

19

BN57217

GAUGE

Amp (0 - 100)

1шт.

20

BN57212

GAUGE

Fuel

1шт.

21

BN57208

GAUGE

Temperature-Engine

1шт.

22

BN57210

GAUGE

Oil-Engine

1шт.

23

BN98247

KNOB

Assembly - Throttle

1шт.

BN29255

Shift & Throttle (Complete)

1шт.

BN98248

SWITCH

Backup

1шт.

BN98249

NEUTRAL START SWITCH

1шт.

25

282775A1

IGNITION SWITCH

With Padded Keys

1шт.

26

342465A1

SWITCH

range select

1шт.

27

BN29440

KNOB

for Contact Block BN29439

1шт.

Speed Range

1шт.

28

NSS

NOT SOLD SEPARAT

Foam Marker (Part of Foam Marker Pkg)

1шт.

29

BN29446

SWITCH

Toggle, On-Off

1шт.

30

BN29446

SWITCH

Toggle, On-Off

1шт.

31

BN29446

SWITCH

Toggle, On-Off

1шт.

32

BN29445

SWITCH

On-Off-On

1шт.

33

BN29445

SWITCH

On-Off-On

1шт.

34

BN29445

SWITCH

On-Off-On

1шт.

35

BN29445

SWITCH

On-Off-On

1шт.

36

BN29446

SWITCH

Toggle, On-Off

1шт.

37

BN98104

ELECTRICAL GAUGE

160 PSI Panel Mount

1шт.

38

BN29445

SWITCH

On-Off-On

1шт.

39

BN29446

SWITCH

Toggle, On-Off

1шт.

40

BN98104

ELECTRICAL GAUGE

160 PSI Panel Mount

1шт.

41

BN29266

SWITCH

Windshield Wiper

1шт.

42

BN29273

SWITCH

Headlight/Taillight

1шт.

43

BN29446

SWITCH

Toggle, On-Off

1шт.

44

BN16163

SWITCH

Lighted On - Off

1шт.

45

BN29987

w/Switches (Complete)

1шт.

BN29994

SWITCH

Push Button (For BN29387)

5шт.

BN29993

CAP

(For Push Button Switch BN29994)

5шт.

BN29986

INSERT

Grip, 1" Dia x 1.6" Nylon

1шт.

47

BN29597

MOUNTING PLATE

DICKEY-John Mount

1шт.

46

BN29318

FLOOR MAT

1шт.

Not Shown

1шт.
