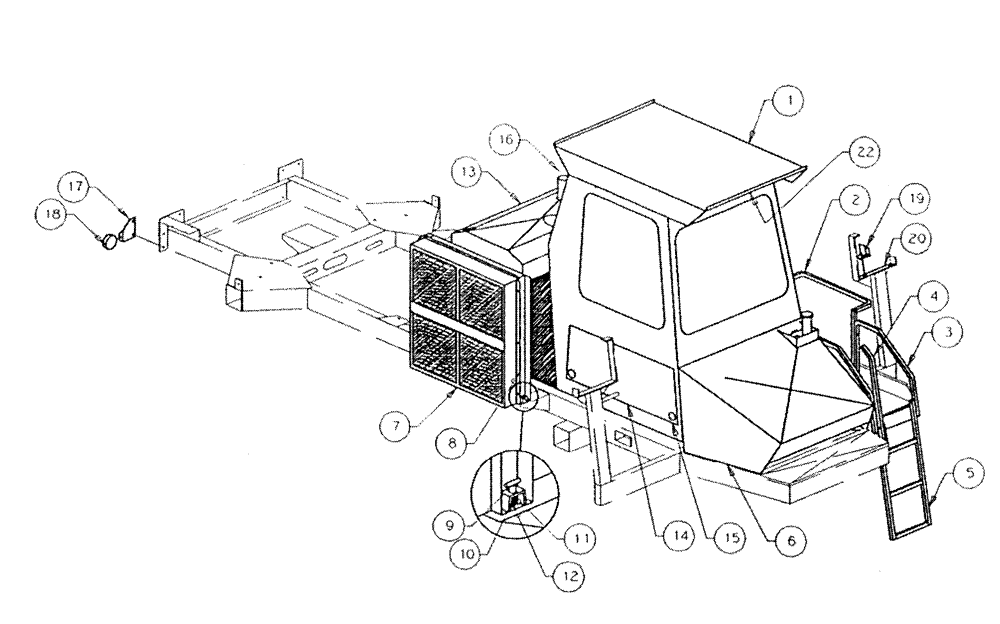

Запчасти Case IH PATRIOT (01-001) - CAB Cab Interior

1

BN29102

Complete Cab

1шт.

2

BN29432

Handrail

1шт.

3

BN29415

Ladder Upper

1шт.

4

BN29926

HANDLE

1шт.

5

BN29417

LADDER

Lower

1шт.

6

BN29300

FUEL TANK

1шт.

BN27530

CAP

Gas, Vented

1шт.

BN29308

SENDER UNIT

Fuel Tank

1шт.

BN29631

Fuel, 3/8"ID x 108"

1шт.

BN29632

Return Fuel, 1/4" IDx 120"

1шт.

BN52300

ELBOW

90° 1/4"-18 NPT

1шт.

BN52303

FITTING

3/8" NPT x 1/4" 90°

1шт.

BN72017

HOSE

barb-1/4" NPTM x 3/8" steel

1шт.

BN76094

HOSE CLAMP

SS #M4

4шт.

BN94071

VALVE

Ball, 1/4" NPT Bronze

1шт.

7

BN29730

Screen

1шт.

8

BN29392

KNOB

3" With 3/8"-16 Female Thread

4шт.

9

BN5412

Pin

1шт.

10

BN31937

SPRING

1шт.

11

BN31444

PIN, ROLL

1шт.

12

BN50157

WASHER

3/4"

1шт.

13

BN29380

Hood

1шт.

BN29552

RUBBER MOUNTING

W/.25-20 studs

2шт.

14

BN29111

PANEL

1шт.

BN29962

RUBBER SEAL

Weatherstrip 1/4" x 3/4" x 17 1/4"

2шт.

BN29963

RUBBER SEAL

Weatherstrip 1/4" x 3/4" x 39"

1шт.

BN29964

RUBBER SEAL

RUBBER SEAL Weatherstrip 1/4" x 3/4" x 41"

1шт.

BN29497

Fuse Holder

1шт.

BN29907

Edge Guard (Hole in Floor)

1шт.

15

BN29392

KNOB

3" With 3/8"-16 Female Thread

2шт.

16

BN29581

Air Cleaner Extension

1шт.

BN53399

PIPE CLAMP

3" Muffler

1шт.

17

BN29639

BRACKET, SUPPORTING

RH Light Mount

1шт.

BN29640

LH Light Mount, Not Shown

1шт.

18

BN29254

TAIL LAMP

Red

2шт.

19

BN29885

STOP

Boom

2шт.

20

BN29680

LINER

SN: 10910009 And Over

2шт.

BN98120

Liner, Before SN: 08910008

2шт.

BN50780

Elevator Bolt, 1/4" - 20 x 1"

2шт.

BN50214

BOLT

1/4" - 20 x 1" GR 5, Hex

2шт.

BN50051

NUT,1/4"-20, USR

4шт.

21

BN98105

W/R.H. Filter Cap, Not Shown

1шт.

BN98232

CAP

Radiator, Not Shown

1шт.

22

NSS

NOT SOLD SEPARAT

W/Retainer

1шт.

BN29550

FASTENER

Snap

1шт.

BN29551

CLAMP

Filter Door

1шт.

BN29812

Rubber Door Seal

1шт.

BN98183

Air (Charcoal)

1шт.

BN98182

FILTER

Air (Paper)

1шт.
