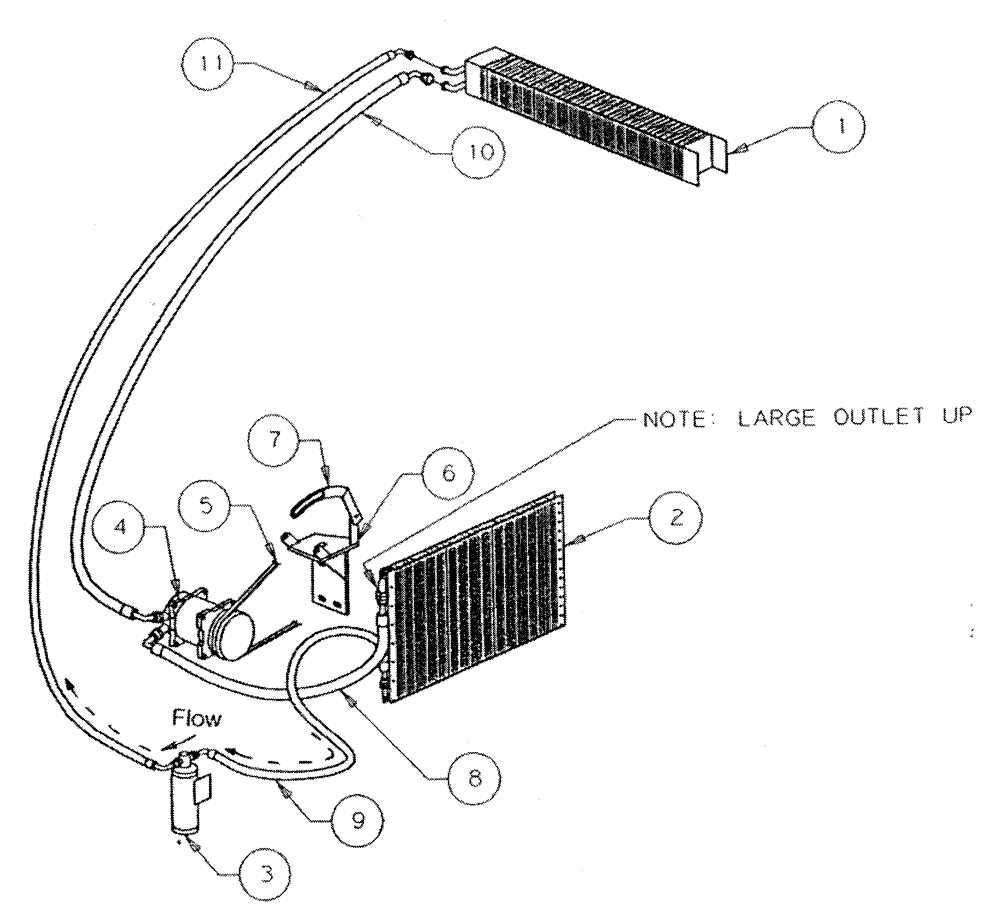

Запчасти Case IH PATRIOT (02-005) - AIR CONDITIONER Cab Exterior

1

BN98106

EVAPORATOR

1шт.

2

BN98191

COIL

Condenser

1шт.

3

BN98192

RECEIVER-DRYER

1шт.

4

BN98107

1шт.

5

BN98184

BELT

1шт.

8

BN98193

MOUNTING PLATE

Bracket

1шт.

7

BN98194

BRACKET

1шт.

8

BN98197

HOSE

13/32" x 5' (High Pressure)

1шт.

9

BN98198

HOSE

5/16" x 5' (High Pressure)

1шт.

10

BN98195

HOSE

1/2" x 16' (Low Pressure)

1шт.

11

BN98190

PLATE

5/16" x 16' (High Pressure)

1шт.

BN98808

FILTER

A/C Recirculation Filter, Not Shown

2шт.
