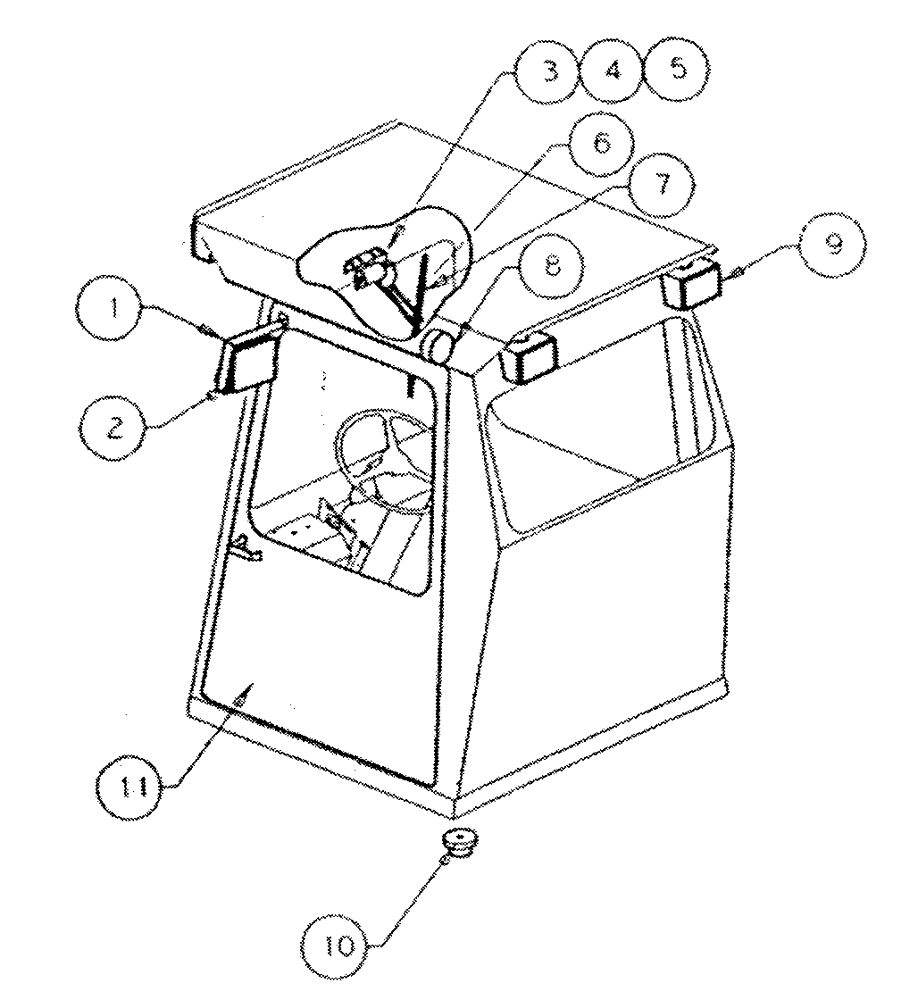

Запчасти Case IH PATRIOT (02-003) - CAB - ACCESSORIES Cab Exterior

1

BN29226

Mirror

2шт.

2

BN29251

REPLACEMENT MIRROR

Head, Black

2шт.

3

BN29881

BRACKET

Mount - Wiper Motor

1шт.

4

BN29270

ADAPTER

Pantograph Arm, Black

1шт.

5

BN29267

WIPER MOTOR

MOTOR, WIPER 2 Speed, 12V

1шт.

See Fig. 02-006 for Ref. Drawing on Wiper Motor Assy

1шт.

BN29268

DRIVE

Arm-wiper

1шт.

137961A1

SHAFT

And Pivot Assembly

1шт.

6

BN29272

ARM

Pantograph 18" Black

1шт.

7

353273A1

BLADE,558.8mm L

Front Wiper, 22"

1шт.

8

BN23253

TUBE

Amber Flashing

2шт.

9

BN29252

LIGHT

Flood 900/H9406 12V

4шт.

BN98185

LENS

Sealed Beam - Flood

4шт.

10

BN29243

ISOLATOR

Rubber 1/2" Bore

4шт.

BN316870

WASHER

2.25 x 0.52 x 7 GA, 304 SS

4шт.

11

BN29309

Door - Complete

1шт.

BN23113

1шт.

BN29420

SEAL

Clip-On, 194"

1шт.

BN29287

LATCH

Door, Inside, RH

1шт.

BN29288

HANDLE

Locking, Outside, With Keys

1шт.

BN29290

STRIKER PLATE

Door

1шт.

BN29823

SHIM

14 ga 304 1" x 3"

3шт.

BN29421

SEAL, GLASS

Rubber, Window, Inline, 124"

1шт.

BN29425

GLASS

Tint 30" x 32" x .218

1шт.

BN29400A

CYLINDER

Gas Charged

1шт.

BN29553A

BALL JOINT

Stud, 13 mm Dia 5/16"-18

2шт.

For BN29400A

1шт.

BN24120

CLIP, SPRING

Gas Cylinder

2шт.

For BN29400A

1шт.

BN29101

Door - Bottom, Serial Range: (Bolt-Floor)

1шт.

12

BN29906

Lifting

2шт.

Not Shown

1шт.

13

BN29296

Air Conditioning, Complete

1шт.

See Fig. 02-005 For Air Conditioning

1шт.

BN33615

Air Conditioning & Heat - Complete

1шт.

BN29403

Add On

1шт.

See Fig. 02-004 For Heater

1шт.

BN50934

WASHER

Neoprene & S.S. (Air Conditioner Mounting)

8шт.

BN98808

FILTER

A/C Recirculation Filter, Not Shown

2шт.
