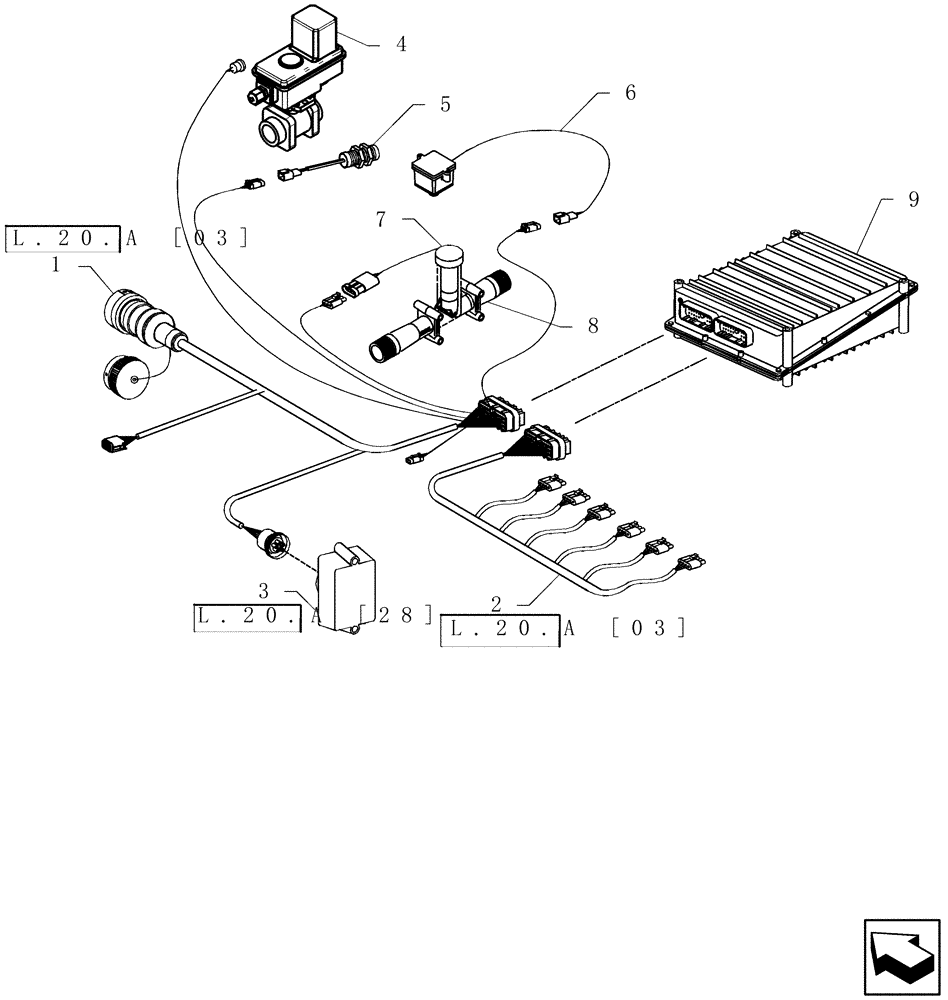

Запчасти Case IH SRX160 (L.20.A[05]) - ELECTRICAL - 4 LINE MONITOR, SPRAYER HARNESSESS LAYOUT L - Field Processing

1

87505110

HARNESS

sprayer cart 4 line monitor

1шт.

Refer to L.20.A [03]

1шт.

2

87558641

HARNESS

boom 4 line monitor

1шт.

Refer to L.20.A [03]

1шт.

3

425049A1

MODULE

terminator passive (Black)

1шт.

Refer to L.20.A [28]

1шт.

4

87505108

VALVE

elec pressure reg 344b

1шт.

5

13976

SENSOR

shaft, 3 Pin Male Packard

1шт.

6

15263V3

SENSOR

pressure

1шт.

7

15577K

KIT

flow sensor replacement

1шт.

8

87577867

TEE

flow, 5 to 50 Imperial gpm, complete with pin and hairpin

1шт.

Optional

1шт.

8

87577740

TEE

flow 1 1/2 to 35 Imperial gpm

1шт.

Standard

1шт.

9

87504878

ECU

4 line monitor

1шт.

10

425045A1

NUT

7/8"-20 x 1/4" thick

2шт.

Nuts for 13976

1шт.

Not Shown

1шт.
