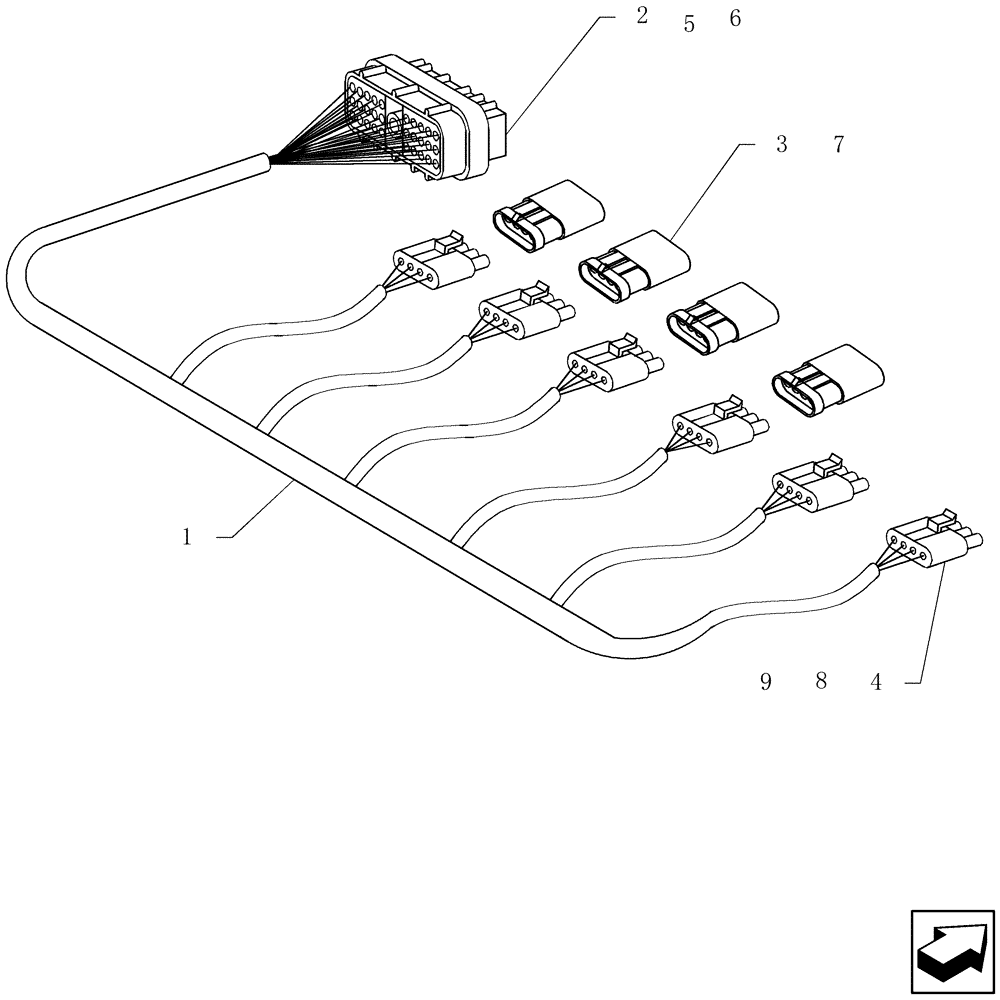

Запчасти Case IH SRX160 (L.20.A[04]) - ELECTRICAL - 4 LINE MONITOR, S68 SINGLE, SPRAYER BOOM HARNESS L - Field Processing

1

87558641

HARNESS

boom 4 line monitor

1шт.

2

87268797

MULTIPOLE CONNECTOR,Female, 30 Pole

30c b plug

1шт.

3

245487C1

ELEC CONNECTOR,Male, 4 Pin

plastic 4c receptacle

1шт.

4

245486C1

ELEC CONNECTOR,4 Pin

plastic 4c plug

1шт.

5

87270687

ELEC. TERMINAL PIN,Female, 0.75 - 1.5 mm2

socket 16-20awg

18шт.

6

225055C1

PLUG

connector 20awg

12шт.

7

225127C1

PLUG

cavity, green rubber

4шт.

8

225124C1

SEAL,2 - 2.9 mm2

seal grn 2.8-2 omm

4шт.

9

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

socket 18-20awg

4шт.
