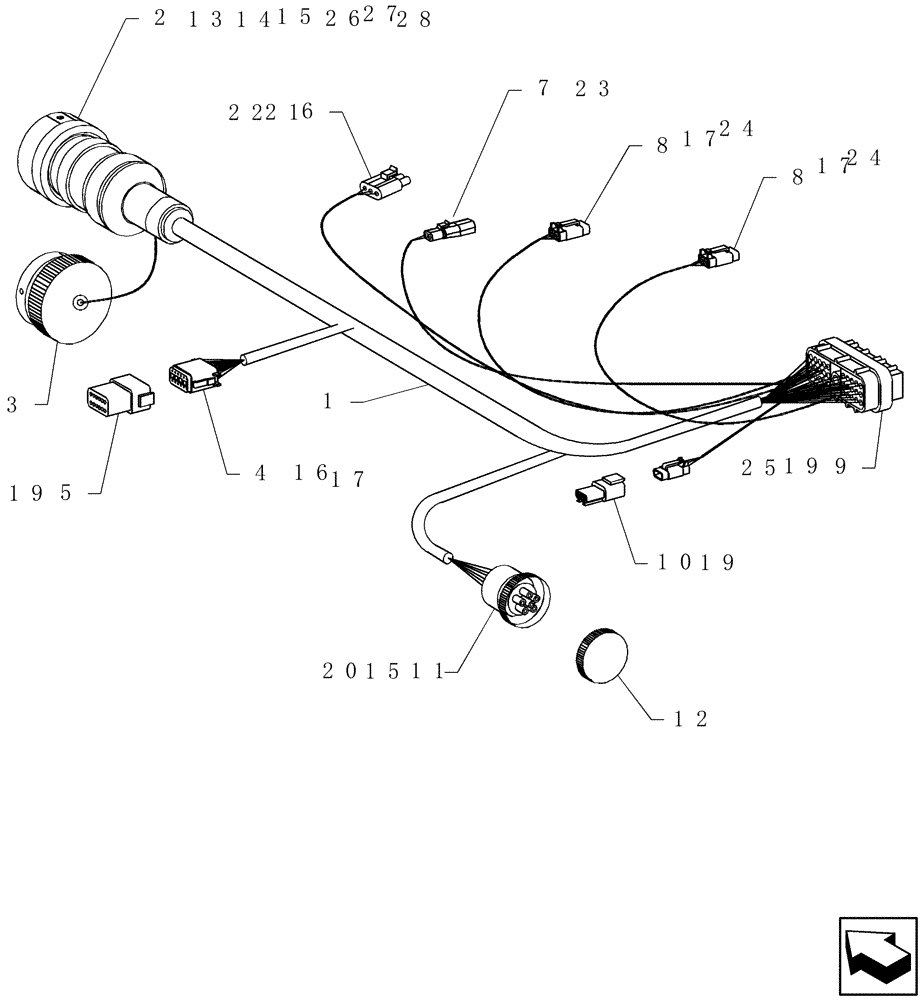

Запчасти Case IH SRX160 (L.20.A[03]) - ELECTRICAL - 4 LINE MONITOR, S68 SINGLE, SPRAYER CART HARNESS L - Field Processing

1

87505110

HARNESS

sprayer cart 4 line monitor

1шт.

2

279043A1

ELEC CONNECTOR,Female, 9 Pin

metal 9c plug

1шт.

3

788614

PROTECTING COVER,2" OD x 1.7" Long

dust 23 con rcp Deutsch

1шт.

4

51200011

ELEC CONNECTOR,12 Pin

plastic 12c plug

1шт.

5

223672A1

MULTIPOLE CONNECTOR,Male, 12 Pin

elec plastic 12c receptacle

1шт.

6

87644909

WIRE CONNECTOR,Female, 3 Pins

plastic 3c plug

1шт.

7

87692855

CONTACT HOUSING,Male, 2 Cavities

plastic 2c plug

1шт.

8

87696551

CONTACT HOUSING,Female, 3 Pole

cab plastic plug 3c

3шт.

9

87268798

MULTIPOLE CONNECTOR,Female, 30 Pole

30c plug b key

1шт.

10

87696545

CONTACT HOUSING,Male, 3 Pole

cab plastic rcp 3c

1шт.

11

425050A1

ELEC CONNECTOR,Female, 6 Pin

plastic 6c plug

1шт.

12

14045

DUST CAP

6 cond rcp Deutsch

1шт.

13

13950

SOCKET

8-10awg

2шт.

14

900302

TERMINAL

12-14awg

2шт.

15

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

16-18awg

10шт.

16

223674A1

WEDGE

lock 12c plug

1шт.

17

223952A1

ELEC. TERMINAL PIN,Nickel, 0.8 - 1.0mm

socket 18-20awg

8шт.

19

225055C1

PLUG

connector 20awg

19шт.

20

225404C1

POWER SOCKET,Nickel, 1.0 - 2.0mm

socket 14-16awg

2шт.

21

441656A1

ELEC CONNECTOR

seal ppl 2.15-1.6mm

2шт.

22

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

socket 18-20awg

2шт.

23

225124C1

SEAL,2 - 2.9 mm2

seal grn 2.8-2 omm

1шт.

24

51200009

STOP LOCK

3c plug

2шт.

25

87270687

ELEC. TERMINAL PIN,Female, 0.75 - 1.5 mm2

socket 16-20awg

26шт.

26

87577735

ELEC CONNECTOR

acc prl splce nonins

2шт.

27

12300

MULTIPOLE CONNECTOR

acc prl splce nonins

2шт.

28

87577685

ELEC CONNECTOR

acc prl splce

8шт.
