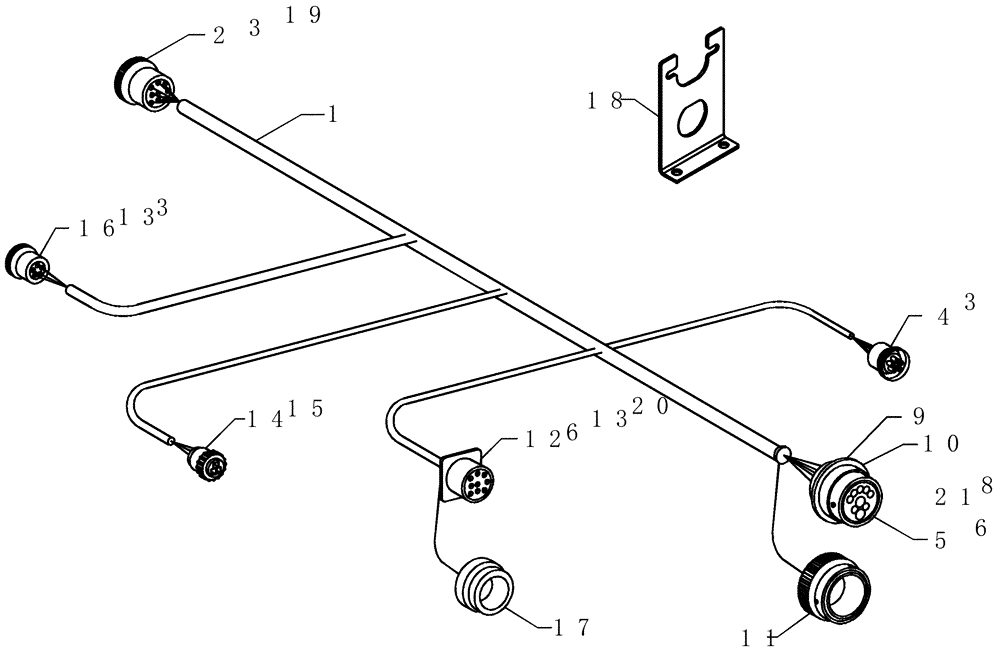

Запчасти Case IH SRX160 (L.20.A[01]) - ELECTRICAL - 4 LINE MONITOR, TRACTOR HARNESS L - Field Processing

1

13908V2

HARNESS

tractor 7.6 m

1шт.

2

291658A1

ELEC CONNECTOR,Female, 9 Pin

plastic 9c plug

1шт.

3

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

16-18awg

19шт.

4

425050A1

ELEC CONNECTOR,Female, 6 Pin

plastic 6c plug

1шт.

5

352506A1

ELEC CONNECTOR,Male, 9 Pin

metal 9c receptacle

1шт.

6

225348C1

ELEC. TERMINAL PIN,Male, 0.75 - 2.00 mm2

pin 16-18awg

11шт.

8

280386A1

ELEC CONNECTOR,Nickel, 2.0 - 3.0mm

12-14awg

2шт.

9

51200012

LOCK WASHER

split 1 3/4" id x 3/32" tk

2шт.

10

459329C1

NUT

1 11/16"-18 aluminum 3/16" thick

2шт.

11

245041C1

CAP

dust 23 cond plug Deutsch

1шт.

12

FLX14180

ELEC CONNECTOR

plastic receptacle 9c

1шт.

13

84068583

PLUG,12 - 16 Ga, White

connector cavity white plastic

3шт.

14

87675194

MULTIPOLE CONNECTOR,Female, 3 Pole

plastic 3c plug

1шт.

15

445518

TERMINAL CONNECTOR,Tin, 5.00 - 8.00mm

socket 8-10awg

2шт.

16

225224C1

ELEC CONNECTOR,Female, 5 Pin

plastic 5c plug

1шт.

17

84074633

COVER

9 cond plg Deutsch

1шт.

18

GL-509

BRACKET

plug receptacle

1шт.

19

225404C1

POWER SOCKET,Nickel, 1.0 - 2.0mm

socket 14-16awg

4шт.

20

225406C1

ELEC. TERMINAL PIN,Male, 1 - 2 mm2

pin 14-16awg

2шт.

21

51200870

ELEC. TERMINAL PIN,8 - 10 SAE

contact pin 8-10 Deutsch

2шт.
