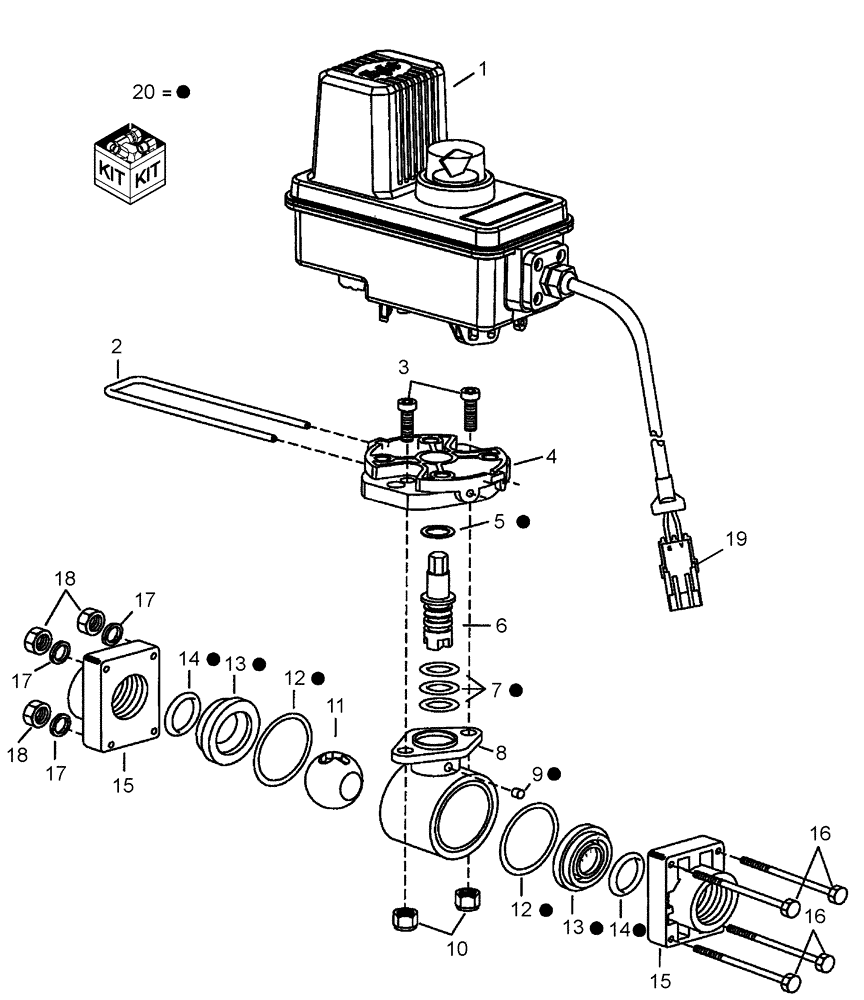

Запчасти Case IH SRX160 (L.10.A[01]) - TANK - ELECTRIC REGULATING VALVE L - Field Processing

0

87505108

VALVE

elec pressure reg 344b

1шт.

1

87505116

ELECTRIC MOTOR

pressure reg 4 rpm

1шт.

2

87500054

CLIP

valve body Spraying Systems 50517-SSPV

1шт.

3

61-32512

HEX SOC SCREW,1/4 - 20 x 3/4"

2шт.

4

87500053

PLATE

valve adapter

1шт.

5

NSS

NOT SOLD SEPARAT

THRUST WASHER, TEFLON

1шт.

6

87500140

VALVE STEM

stainless

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING, VITON

3шт.

8

NSS

NOT SOLD SEPARAT

BODY, NYLON (BLACK)

1шт.

9

NSS

NOT SOLD SEPARAT

DUST PLUG, FELT

1шт.

10

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

11

NSS

NOT SOLD SEPARAT

BALL POLY VALVE

1шт.

12

NSS

NOT SOLD SEPARAT

GASKET, VITON

2шт.

13

NSS

NOT SOLD SEPARAT

SEAL, TEFLON

2шт.

14

NSS

NOT SOLD SEPARAT

O-RING, VITON

2шт.

15

NSS

NOT SOLD SEPARAT

END CAP, 1" NPT THREAD, NYLON (BLACK)

2шт.

16

NSS

NOT SOLD SEPARAT

BOLT, 1/4" X 3" STAINLESS STEEL

4шт.

17

NSS

NOT SOLD SEPARAT

LOCK WASHER, 1/4" STAINLESS STEEL

4шт.

18

NSS

NOT SOLD SEPARAT

NUT, 1/4" STAINLESS STEEL

4шт.

19

NSS

NOT SOLD SEPARAT

4-PIN PACKARD ELECTRIC WEATHERPACK SHROUD CONNECTOR

1шт.

20

87500141

REPAIR KIT

electric ball valve

1шт.

Includes ref #5, 7, 9, 12, 13 and 14

1шт.
