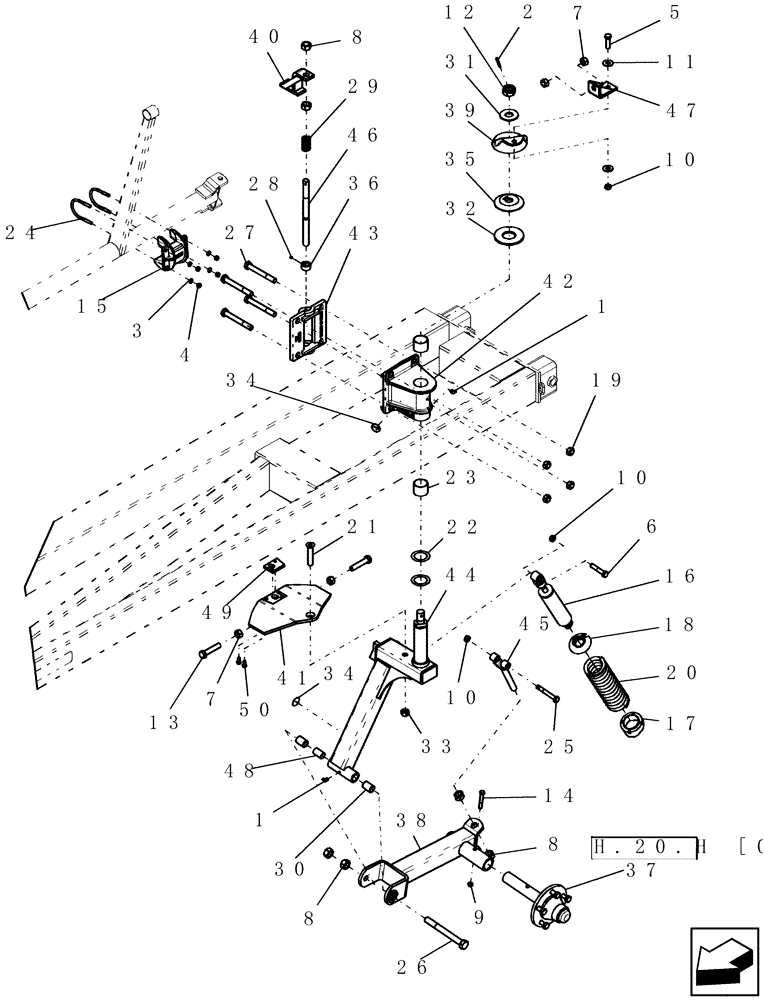

Запчасти Case IH SRX160 (H.20.H[03]) - WHEELED BOOM - LOCKING CASTER WHEEL ASSEMBLY H - Working Arm

1

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

2шт.

2

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

1шт.

3

80681

LOCK WASHER,5/16"

4шт.

4

9635082

NUT,5/16" - 18, Gr 5

4шт.

5

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

1шт.

6

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1шт.

7

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

8

280954

NUT,3/4"-10, G5

6шт.

9

88902

NUT,3/8"-16

1шт.

10

86992215

LOCK NUT,1/2"-13, GC

3шт.

11

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

12

86020752

SLOTTED NUT

1"-14, G5

1шт.

13

280807

BOLT,Tap, Hex, 5/8" - 11 x 3", Gr 5

2шт.

14

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

15

87505480

CAM

3/4" lift

1шт.

16

21311

SHOCK ABSORBER

1 3/8" bore

1шт.

17

21317

RETAINER

lower 1 3/8"

1шт.

18

21318

RETAINER

upper 1 3/8"

1шт.

19

85700693

NUT,5/8" - 11, Gr C

4шт.

20

87505481

COMPRESSION SPRING

15/32" wire 3 7/64" od x 12 3/8" long

1шт.

21

21339

SCREW

cap 5/8"-11 x 3", G5 fh hx-skt

1шт.

22

21590

WASHER,44.45mm ID x 63.5mm OD x 0.76mm Thk

1 3/4" id x 2 1/2" od x .03" hardened

2шт.

23

21701

BUSHING

Iglide 1 15/16" x 1 3/4" x 1 1/2"

2шт.

24

2222

U-BOLT

ur 5/16" x 2 3/8" w 3 1/2" d 1 1/4" thread

2шт.

25

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

1шт.

26

280316

BOLT,Hex, 3/4" - 10 x 7", Gr 5

1шт.

27

280293

BOLT,Hex, 5/8" - 11 x 7", Gr 5

4шт.

28

80430

SET SCREW,1/4" - 20 x 1/4"

1шт.

29

87506250

COMPRESSION SPRING

3/32" wire x 1 1/8" od x 3"

1шт.

30

5184K

KIT

Nylatron* bushing - 1" od x 7/64" x 1 13/32" long

2шт.

31

87374

WASHER,1.06" ID x 2.5" OD x 0.17" Thk

1шт.

32

6316

DISC

nylon light caster 4" od x 1 25/32" id x 1/4" thick

1шт.

33

85700693

NUT,5/8" - 11, Gr C

1шт.

34

6565

DECAL

grease 10 hours

2шт.

35

CA-174

PAD

flex

1шт.

36

SQ-118

RETAINER

spring

1шт.

37

CC-187A

HUB

spindle assy, h510/s411 11 1/4" long

1шт.

Refer to H.20.H [04]

1шт.

38

SQ-683V2

ARM

trailing

1шт.

39

SQ-684

CRANK

caster

1шт.

40

SQ-685

CAM FOLLOWER

1шт.

41

SQ-687

PLATE

angle adjustment caster LH

1шт.

Shown

1шт.

41.1

SQ-686

PLATE

angle adjustment caster RH

1шт.

Not Shown

1шт.

42

SQ-688

BRACKET

mount, caster

1шт.

43

SQ-689

PLATE

caster lock

1шт.

44

SQ-691

FRAME

locking caster wheel LH

1шт.

Shown

1шт.

44.1

SQ-692

FRAME

locking caster wheel RH

1шт.

Not Shown

1шт.

45

SQ-693

BRACKET

mount, shock - lower

1шт.

46

SQ-694

PIN

caster latch 3/4" plated

1шт.

47

SQ-743

LINK

cable adjustment

1шт.

48

SQ-803

SPACER

endmarker arm bushing

1шт.

49

SQ-697

INSERT

single stage caster

1шт.

50

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.
