Запчасти Case IH SRX160 (H.20.G[13]) - WHEELED BOOM - FOLD ARM ASSEMBLY H - Working Arm

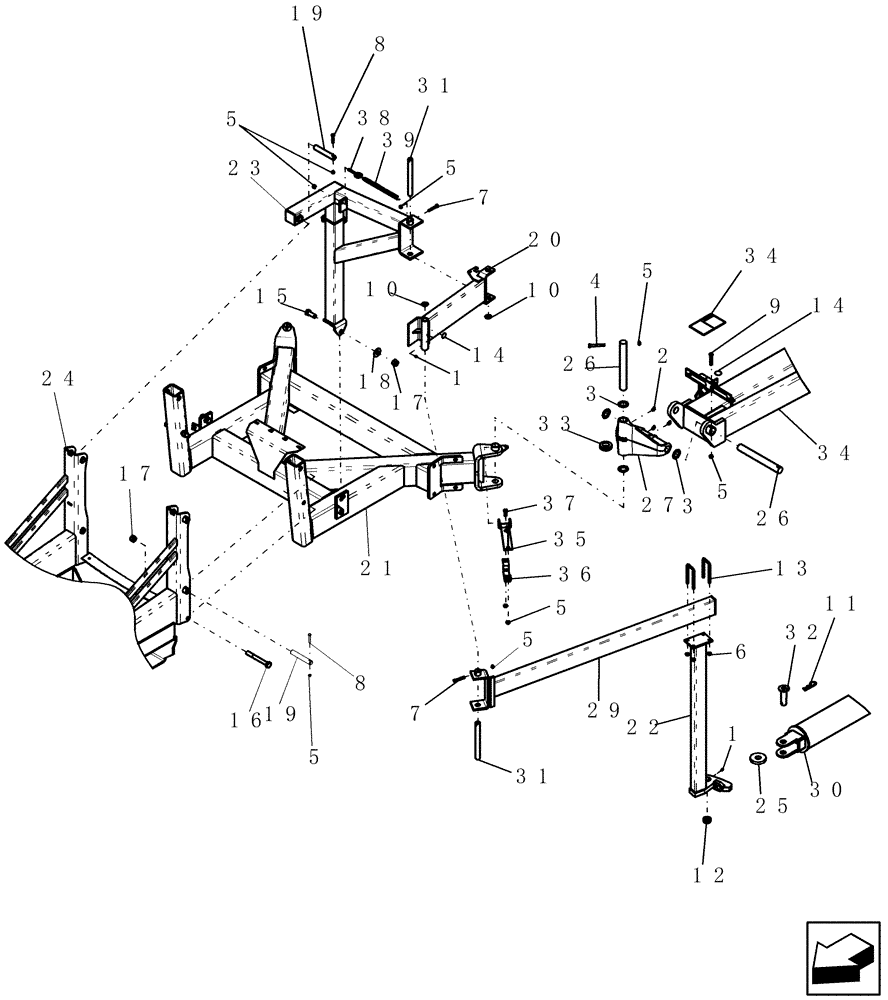

Схема запчастей Case IH SRX160 - (H.20.G[13]) - WHEELED BOOM - FOLD ARM ASSEMBLY H - Working Arm
26
32
25
3
37
11
14
36
5
10
2
12
5
10
33
18
39
22
34
26
5
5
1
1
17
7
31
19
24
29
38
13
23
15
27
30
17
5
8
5
21
20
31
16
5
35
8
14
7
6
4
34
19
9
3

Артикул

Название

Примечание

Количество

1

87414

LUBE NIPPLE,1/4" - 28

4шт.

2

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

6шт.

3

86632583

WASHER,1.28" ID x 2" OD x 0.12" Thk

8шт.

4

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

2шт.

5

88902

NUT,3/8"-16

13шт.

6

280980

NUT,7/16"-14, GC

8шт.

7

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

4шт.

8

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

9

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

2шт.

10

86624168

WASHER,1.03" ID x 1.5" OD x 0.03" Thk

4шт.

11

87045537

HAIR PIN COTTER

.148 x 3 5/16"

2шт.

12

87659928

BUSHING,25.4mm ID x 36.5mm OD x 22.23mm L

Spherical 1 5/8" od x 1" id

2шт.

13

6127

U-BOLT

us 7/16"-14 2 5/8"w 5"d, G5

4шт.

14

6565

DECAL

grease 10 hours

2шт.

15

88557

BOLT,Hex, 3/4" - 10 x 2", Gr 5, Full Thd

2шт.

16

280223

BOLT,Hex, 3/4"-10 x 6 1/2", G5

2шт.

17

280375

NUT,3/4"-10, GC

4шт.

18

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

2шт.

19

87449745

PIN

25.4 mm x 159 mm long single hole retention

4шт.

20

87450243

ARM

link inner fold

2шт.

21

87502515

FRAME

cart rear wheel boom

1шт.

22

87502581

ARM

leg LH

1шт.

22

87502584

ARM

leg RH

1шт.

Not Shown

1шт.

23

87504376

FRAME

mast RH

1шт.

Not Shown

1шт.

23

87502754

FRAME

mast LH

1шт.

24

87505340

FRAME

1600 gallon sprayer wheel boom

1шт.

25

CA-105

PAD

flex, 1 1/32" id x 3" od x 1/2" thick

2шт.

26

SQ-618

PIN

1 1/4" x 11" - 1 hole

4шт.

27

SQ-619

UNIVERSAL JOINT

primary boom

2шт.

28

SQ-624V2

BOOM

primary wing, inner LH

1шт.

28

SQ-625V2

BOOM

primary wing, inner RH

1шт.

29

SQ-662

ARM

fold link, outer

2шт.

30

SQ-667

TUBE,3448.4 mm L

draw, 5"

2шт.

31

SQ-669

PIN

1" x 10"

4шт.

32

SQ-670

PIN

1" x 3 1/2"

2шт.

33

SQ-678

UNIVERSAL JOINT

cable pulley

2шт.

34

SQ-780.25

DECAL

danger secondary boom

4шт.

35

SQ-717

BRACKET

hose clamp

1шт.

36

SQ-716

SUPPORT

hose

1шт.

37

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

38

SQ-745

EYEBOLT

3/8" x 4"

1шт.

39

87505479

SPRING

tension 13/64" wire 1 1/4" od x 12" long

1шт.

Выбрано товаров: 44
