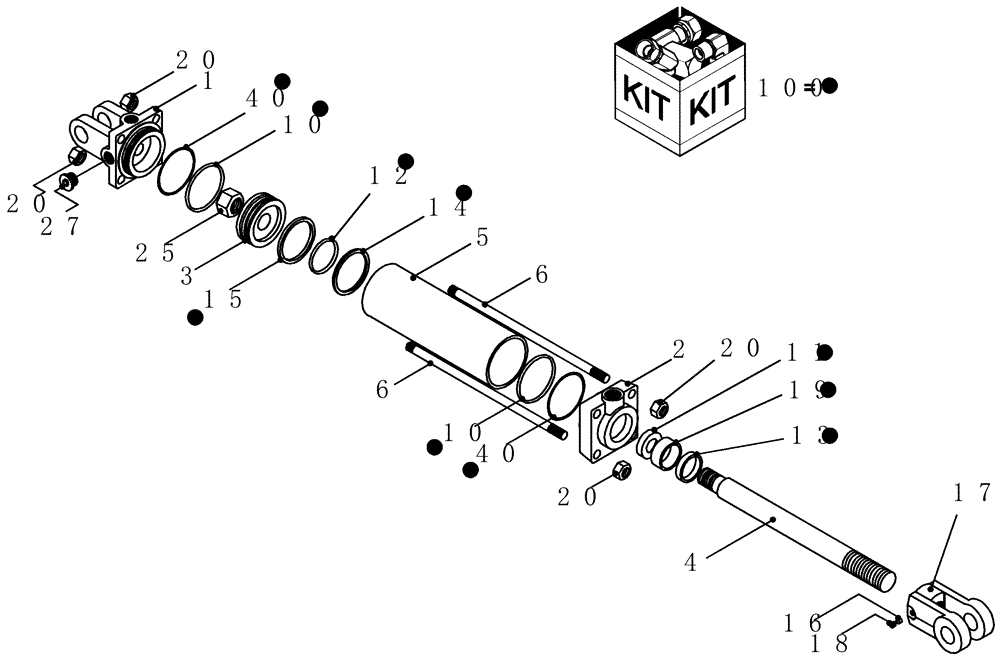

Запчасти Case IH SRX160 (H.20.G[09]) - HYDRAULIC - SUSPENDED BOOM - 3 1/2" X 16" CYLINDER ASSEMBLY H - Working Arm

0

87446384

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3 1/2" x 16" Monarch 3000 psi

1шт.

1

87409430

HEAD

cylinder base 3 1/2" bore

1шт.

2

87409417

HEAD

cylinder front 3 1/2" bore x 1 1/2" rod

1шт.

3

84212859

PISTON

Cylinder 3 1/2" Monarch PSP

1шт.

4

87548067

SHAFT

cylinder 1 1/2" x 20 57/64" mon chr

1шт.

6

87409492

THREADED TIE-ROD

hyd cylinder

4шт.

17

87409387

CLEVIS,1 -1/4" - 12

cylinder 1" pin 1 1/4"-12 rod Monarch #492652

1шт.

16

1029632

PLUG

nylon 5/16" od x 1/4" pln solid

1шт.

18

87314803

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

20

408

NUT,5/8" - 18, Gr 5

8шт.

25

87314800

LOCK NUT

1"-14, GA

1шт.

27

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

100

47799224

SEAL KIT

hydraulic cylinder 3 1/2" Monarch 1 1/2" rod

1шт.
