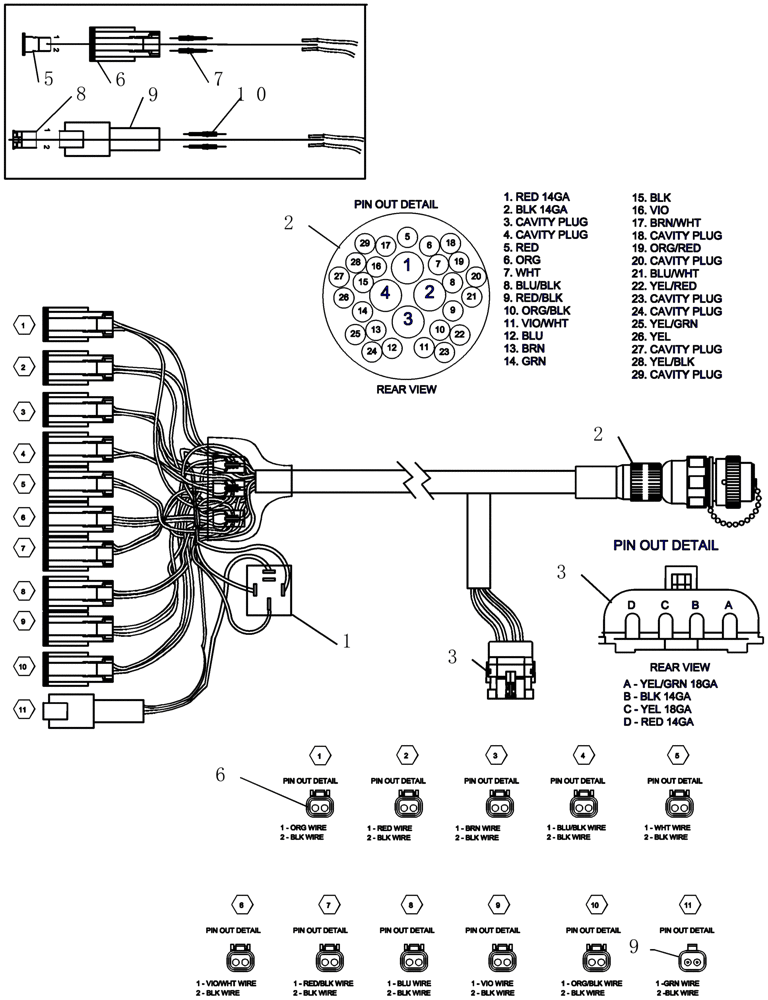

Запчасти Case IH SRX160 (H.20.G[02]) - ELECTRICAL - ASSEMBLY, HYDRAULIC 10 SWITCH JOYSTICK CART HARNESS SUSPENDED BOOM H - Working Arm

1

87578619

RELAY

joystick

1шт.

0

87504676

HARNESS

cart hyd boom control

1шт.

2

900302

TERMINAL

12-14awg

1шт.

2

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

16-18awg

1шт.

2

245041C1

CAP

dust 23 cond plug Deutsch

1шт.

3

245487C1

ELEC CONNECTOR,Male, 4 Pin

plastic 4c receptacle

1шт.

3

225055C1

PLUG

connector 20awg

1шт.

5

15118

TERMINAL CONNECTOR,2 Pin

lock 2c plug

1шт.

6

15117

ELEC CONNECTOR,2 Pin

plastic 2c plug

1шт.

7

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

16-18awg

1шт.

8

87577731

CONTACT HOUSING,2 Pole

lock 2c receptacle

1шт.

9

9861380

POWER SOCKET

lock 8c receptacle

1шт.

10

225348C1

ELEC. TERMINAL PIN,Male, 0.75 - 2.00 mm2

pin 16-18awg

1шт.
