(H.20.G[01]) - ELECTRICAL - ASSEMBLY, HYDRAULIC 10 SWITCH JOYSTICK SUSPENDED BOOM

Запчасти Case IH SRX160 (H.20.G[01]) - ELECTRICAL - ASSEMBLY, HYDRAULIC 10 SWITCH JOYSTICK SUSPENDED BOOM H - Working Arm

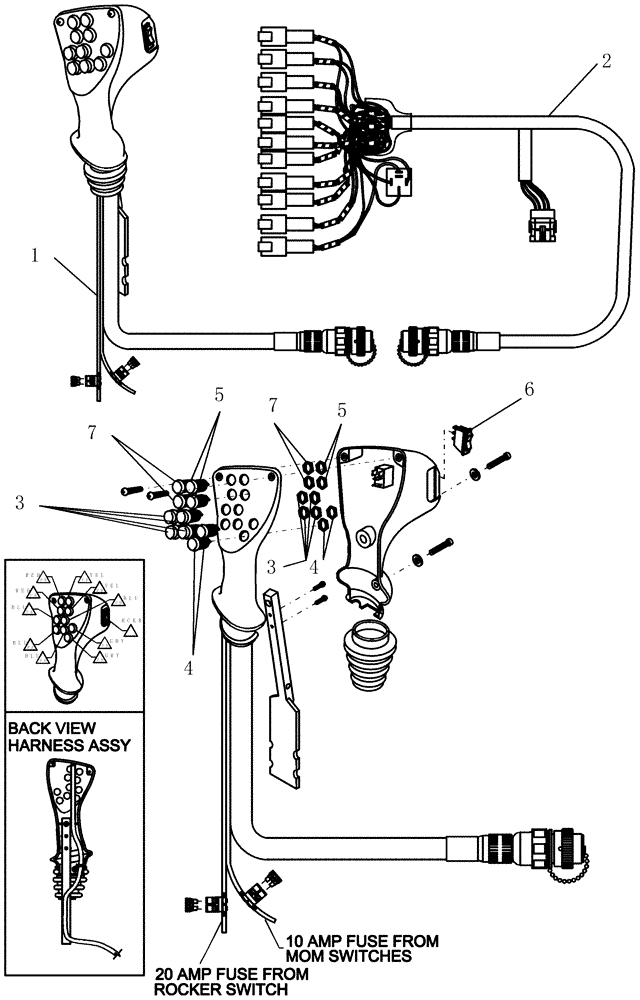

Схема запчастей Case IH SRX160 - (H.20.G[01]) - ELECTRICAL - ASSEMBLY, HYDRAULIC 10 SWITCH JOYSTICK SUSPENDED BOOM H - Working Arm
blu
7
pb
3
3
pb
5
4
pb
pb
blu
blu
4
2
pb
yel
1
gry
pb
pb
7
pb
gry
red
red
yel
rckr
5
pb
pb
blu
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87504677

JOYSTICK

assy 10sw boom control

1шт.

87504677R

REMAN-JOYSTICK

SRX100, SRX160 ALL (6/06-11/08)

1шт.

87504677C

CORE-JOYSTICK

Return Number

1шт.

1

87431760

RELAY

20 amp micro on / off

1шт.

2

87504676

HARNESS

cart hyd boom control

1шт.

3

23902

SWITCH

pushbutton, blue raised joystick, procure 15/32 metal nut locally

4шт.

4

23903

SWITCH

pushbutton, grey flush joystick

2шт.

Includes nut

1шт.

5

23905

SWITCH

pushbutton, yellow flush joystick

2шт.

Includes nut

1шт.

6

23906

SWITCH

rocker on off on

1шт.

7

23904

SWITCH

pushbutton, red flush joystick

2шт.

Includes nut

1шт.

100

23901

DECAL

joystick static cling

1шт.

Not Shown

1шт.

100

14628

ELEC CONNECTOR,18 Pin

18c plug akey

1шт.
