Запчасти Case IH SRX160 (H.20.C[01]) - HYDRAULIC - WHEELED BOOM - 2 3/4" X 8" AND 2 1/2" X 8" CYLINDER ASSEMBLY H - Working Arm

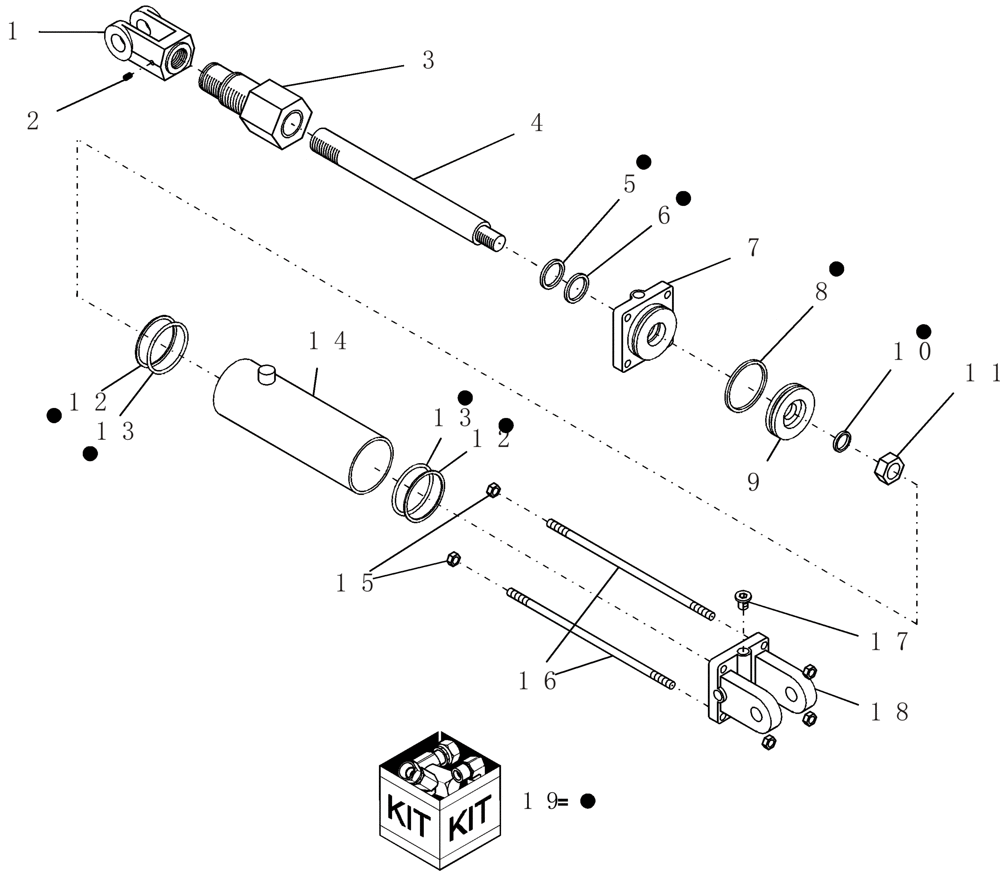

Схема запчастей Case IH SRX160 - (H.20.C[01]) - HYDRAULIC - WHEELED BOOM - 2 3/4" X 8" AND 2 1/2" X 8" CYLINDER ASSEMBLY H - Working Arm
5
2
11
1
9
8
17
6
4
15
3
12
13
10
7
19
14
12
13
18
16

Артикул

Название

Примечание

Количество

0

7954

HYDRAULIC CYLINDER,Double Acting, 28.57mm Rod, 203.2mm Stroke

2 3/4" x 8" Monarch 3000 psi 1 1/8" rod

1шт.

0

7955

HYDRAULIC CYLINDER,Double Acting, 28.57mm Rod, 203.2mm Stroke

2 1/2" x 8" Monarch 3000 psi 1 1/8" rod

1шт.

1

87449358

CLEVIS

cylinder 1" pin Monarch 1 1/8"-12 rod

1шт.

2

87314803

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

3

7998

TRAVEL LIMITER

1 1/8"-12 Monarch 3000 psi

1шт.

2a

1029632

PLUG

nylon 5/16" od x 1/4" pln solid

1шт.

4

7999

SHAFT

cylinder, 1 1/8"-12

1шт.

5

NSS

NOT SOLD SEPARAT

BU RING

1шт.

Included in repair kits 8002 and 87577706

1шт.

6

NSS

NOT SOLD SEPARAT

O RING

1шт.

Included in repair kits 8002 and 87577706

1шт.

7

87577692

CYLINDER END CAP

rod 2 3/4"

1шт.

7

439276A1

CYLINDER END CAP

rod 2 1/2" Monarch 1 1/8" #492673

1шт.

8

NSS

NOT SOLD SEPARAT

O RING

1шт.

Included in repair kits 8002 and 87577706

1шт.

9

87577703

PISTON

cyl 2 3/4" bore

1шт.

9

87409477

PISTON

cylinder 2 1/2" bore Monarch #494726

1шт.

10

NSS

NOT SOLD SEPARAT

O RING

1шт.

Included in repair kits 8002 and 87577706

1шт.

11

425038A1

NUT

cylinder piston 3/4"-16, GA

1шт.

12

NSS

NOT SOLD SEPARAT

BU RING

1шт.

Included in repair kits 8002 and 87577706

1шт.

13

NSS

NOT SOLD SEPARAT

O RING

1шт.

Included in repair kits 8002 and 87577706

1шт.

14

87577704

TUBE,2.75 mm DIA x 8 mm L

cyl 2 3/4" x 8" mon rephasing

1шт.

14

8010

TUBE,2.5" Diameter, 8" Length

cylinder, 2 1/2" x 8" Monarch rephasing

1шт.

15

280431

NUT,1/2"-13, G5

1шт.

15

9628503

NUT,3/8"-16, G5

1шт.

16

87409688

TIE-ROD

1/2"-13 for 8" Monarch #492278

1шт.

16

87409488

THREADED TIE-ROD

3/8"-16

1шт.

17

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

18

87577705

CYLINDER END CAP

cyl clevis 2 3/4"

1шт.

18

439275A1

CYLINDER END CAP

cylinder base 2 1/2" bore

1шт.

19

84331722

SEAL KIT

2 3/4" x 8" Monarch rephasing 3000 psi

1шт.

19

87577706

SEAL KIT

2 1/2" x 8" Monarch* rephasing

1шт.

Выбрано товаров: 35
