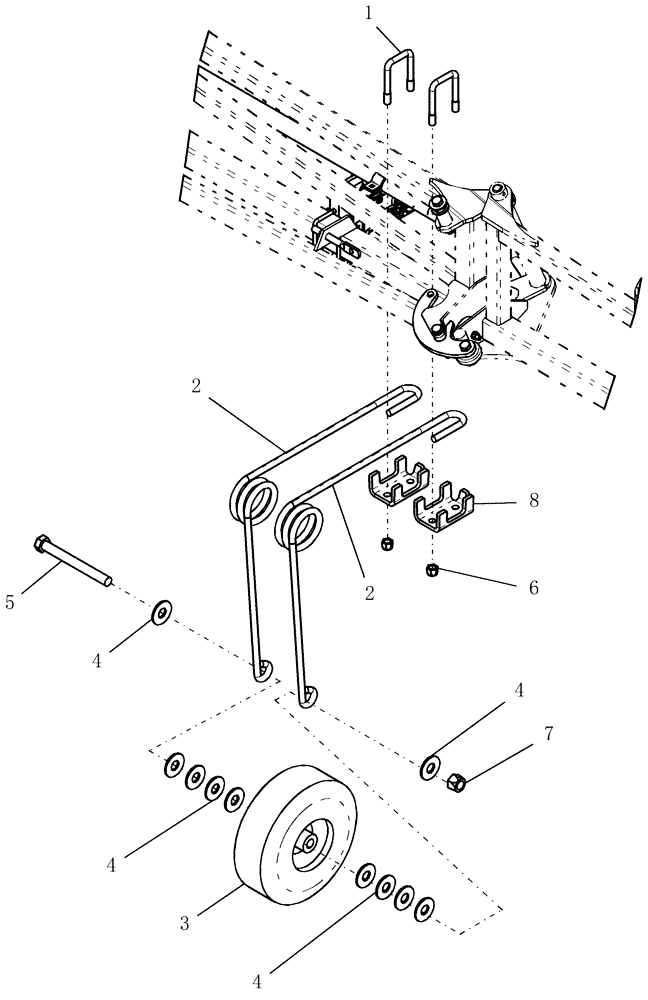

Запчасти Case IH SRX160 (E.20.C[03]) - SUSPENDED BOOM - TOUCH DOWN MID WHEEL - WINDSCREEN ONLY E - Body and Structure

1

87502740

U-BOLT

us 1/2" x 2 9/64" w x 3 1/2" d 1" thread g5

2шт.

2

87504945

TINE

spring wheel mount

2шт.

3

87502279

TYRE/TIRE

assy 4.10/3.50x4 2ply tl

1шт.

4

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

10шт.

5

280316

BOLT,Hex, 3/4" - 10 x 7", Gr 5

1шт.

6

86992215

LOCK NUT,1/2"-13, GC

4шт.

7

280375

NUT,3/4"-10, GC

1шт.

8

87504402

CLIP

2шт.
