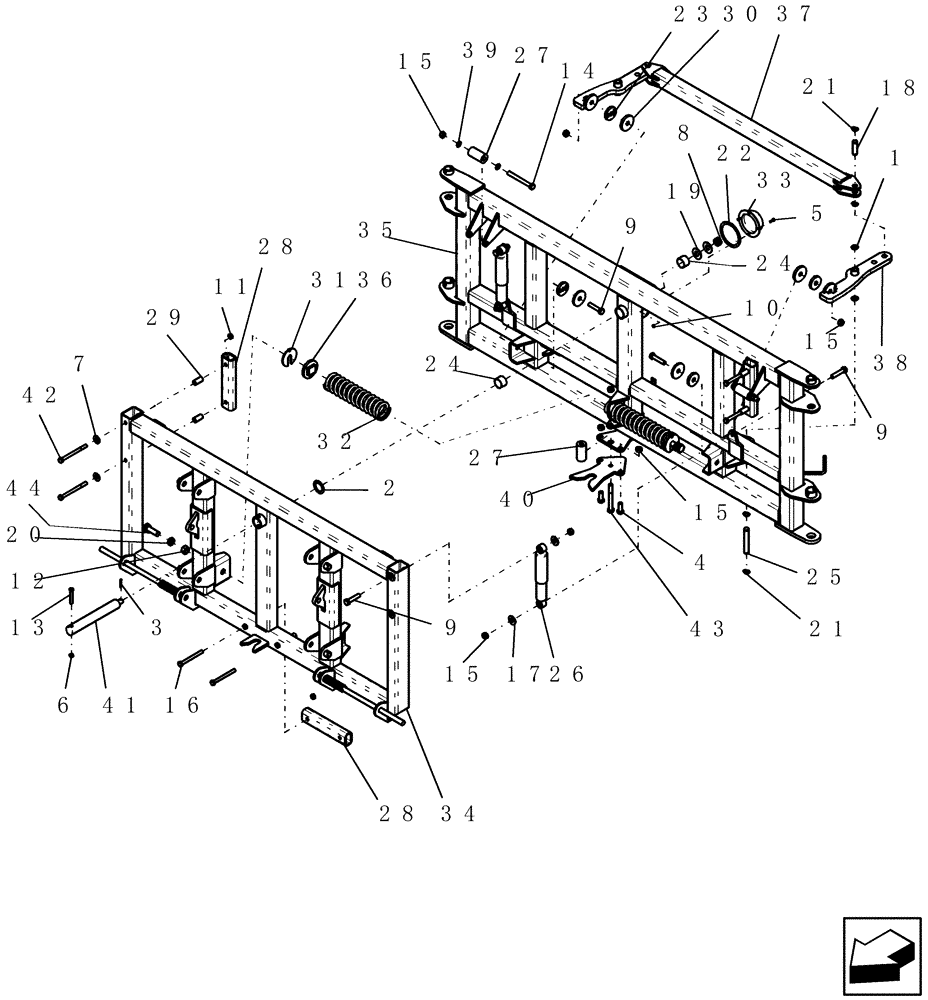

Запчасти Case IH SRX160 (E.10.B[06]) - MAIN FRAME - SUSPENDED BOOM - CENTER SECTION ASSEMBLY E - Body and Structure

1

87325444

WASHER,1.02" ID x 1.5" OD x 0.07" Thk

1 1/64" id 1 1/2" 14ga

4шт.

2

86625259

WASHER,2.06" ID x 3" OD x 0.11" Thk

1шт.

3

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

1шт.

4

88557

BOLT,Hex, 3/4" - 10 x 2", Gr 5, Full Thd

2шт.

5

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

6

86992215

LOCK NUT,1/2"-13, GC

1шт.

7

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

4шт.

8

86020752

SLOTTED NUT

1"-14, G5

1шт.

9

86977759

BOLT,Hex, 3/4" - 10 x 3 1/2", Gr 5

6шт.

10

280129

NUT,1/4"-20

2шт.

11

85700693

NUT,5/8" - 11, Gr C

6шт.

12

9849633

NUT,1"-8, G5

2шт.

13

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

1шт.

14

280316

BOLT,Hex, 3/4" - 10 x 7", Gr 5

2шт.

15

280375

NUT,3/4"-10, GC

11шт.

16

86507000

BOLT,Hex, 5/8" - 11 x 6 1/2", Gr 5

2шт.

17

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

4шт.

18

3326

PIN

cylinder 1" x 2 7/8" ul hardened with snap rings

2шт.

19

87374

WASHER,1.06" ID x 2.5" OD x 0.17" Thk

2шт.

20

87553819

JAM NUT

1"-8 Hex, Jam

2шт.

21

87019495

SNAP RING,#98, Ext

8шт.

22

9861

GASKET

rubber

1шт.

23

87562263

BUSHING

poly 3"od x 13/16" id x 1/2"

4шт.

24

22489

BUSHING

Iglide 2 3/16" x 2" x 1 1/2" long

2шт.

25

87418617

PIN,25.4mm OD x 161mm L

25 mm x 149 mm ul snap ring grooves

2шт.

26

87446381

SHOCK ABSORBER

1 5/8" bore

1шт.

27

87504949

ROLLER

19.5 mm id x 50.8 mm od 100 mm

3шт.

28

87443231

TUBE,76.2 mm OD x 333 mm L

center section roller support

3шт.

29

87443233

TUBE,17.48 mm ID x 25.4 mm OD x 53.3 mm L

roller support spacer

4шт.

30

87443259

PLATE

yaw susp spacer

2шт.

31

87449417

SPACER

center section spring

2шт.

32

87506286

COMPRESSION SPRING

5/8" wire 4 1/8" od x 19 5/8" long

2шт.

33

87506288

HUB CAP

dc28 bolt on

1шт.

34

87443215

FRAME

center subsection

1шт.

35

87443235

FRAME

center section

1шт.

36

87449413

RETAINER

center section spring

2шт.

37

87443255

LINK

yaw susp center

1шт.

38

87443251

LINK

yaw susp rocker

2шт.

39

249100

WASHER,0.78" ID x 1.25" OD x 0.06" Thk

6шт.

40

87501592

PLATE

center lock guide

1шт.

41

87443230

SPINDLE

center pivot

1шт.

42

280361

BOLT,Hex, 5/8" - 11 x 7 1/2", Gr 5

4шт.

43

280223

BOLT,Hex, 3/4"-10 x 6 1/2", G5

1шт.

44

1033038

BOLT

1"-8 x 3", G5 all-thread

2шт.
