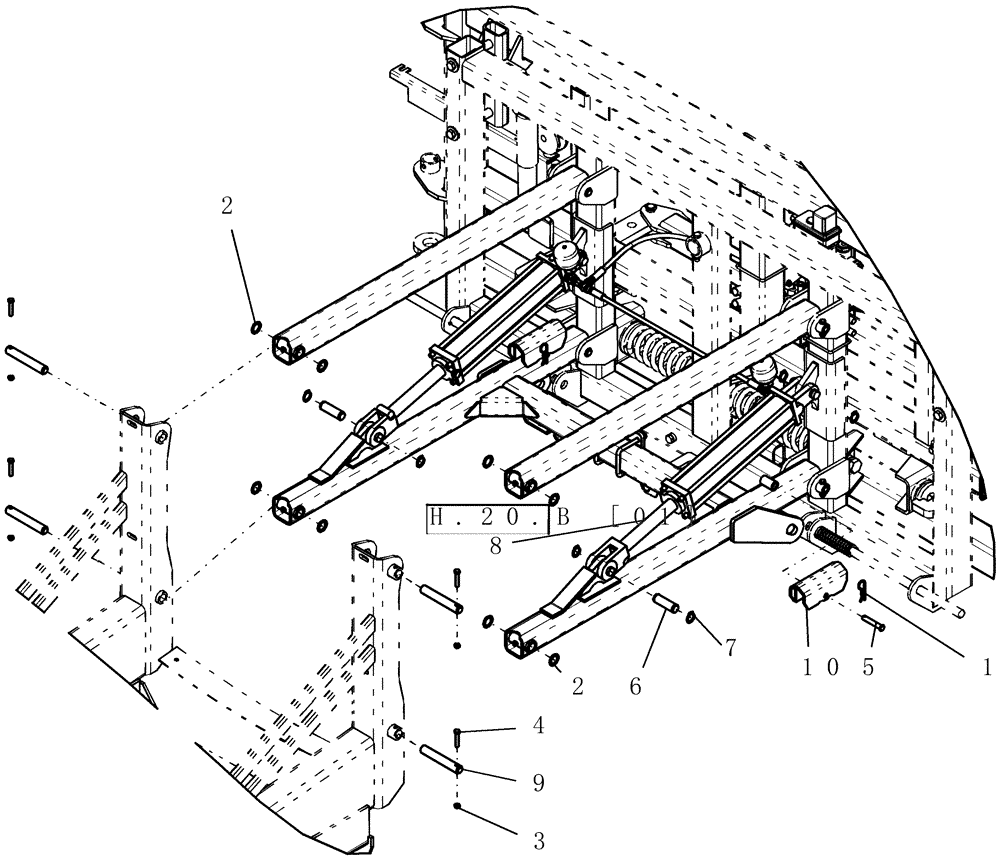

Запчасти Case IH SRX160 (E.10.B[04]) - MAIN FRAME - SUSPENDED BOOM - PARALLEL LINKS TO REAR FRAME E - Body and Structure

1

87327559

COTTER PIN

9/64" x 2 15/16"

2шт.

2

87325444

WASHER,1.02" ID x 1.5" OD x 0.07" Thk

1 1/64" id 1 1/2" 14ga

20шт.

3

88902

NUT,3/8"-16

10шт.

4

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

8шт.

5

432577A1

HITCH PIN,12.7mm OD x 127mm L

1/2" x 3 1/2" ul c/w 1/8" hairpin

2шт.

6

3326

PIN

cylinder 1" x 2 7/8" ul hardened with snap rings

6шт.

7

87019495

SNAP RING,#98, Ext

16шт.

8

87446382

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3" x 16" Monarch 3000 psi

2шт.

Refer to H.20.B [01]

1шт.

9

87449745

PIN

25.4 mm x 159 mm long single hole retention

8шт.

10

87501594

LOCK

cylinder service

2шт.
