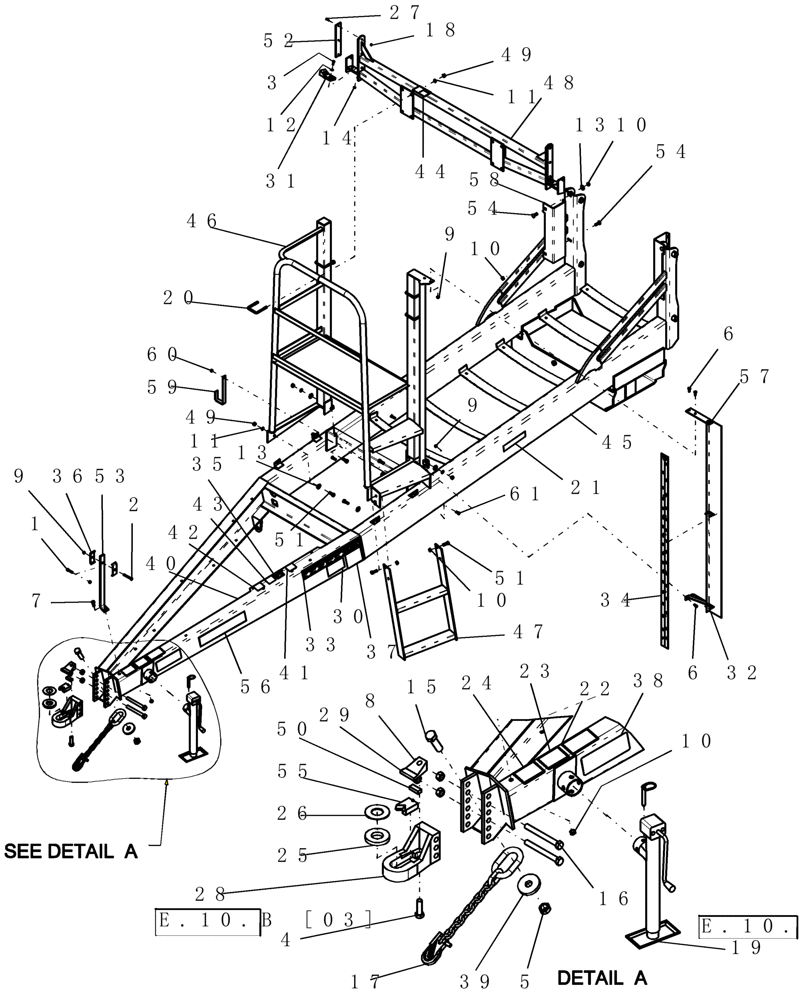

Запчасти Case IH SRX160 (E.10.B[01]) - MAIN FRAME - ASSEMBLY, CART E - Body and Structure

1

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

1шт.

2

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

3

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

4

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

1шт.

5

280286

NUT,1"-8, GB

1шт.

6

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

7

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

1шт.

8

280954

NUT,3/4"-10, G5

4шт.

9

88902

NUT,3/8"-16

5шт.

10

86992215

LOCK NUT,1/2"-13, GC

7шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

14шт.

12

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

4шт.

13

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

8шт.

14

280129

NUT,1/4"-20

4шт.

15

88962

BOLT,Hex, 1" - 8 x 3 1/2", Gr 5

1шт.

16

280316

BOLT,Hex, 3/4" - 10 x 7", Gr 5

2шт.

17

PCC8607191

CHAIN

30,400 lb safety

1шт.

18

20332

LOCK NUT,#10-32, GB

6шт.

19

7972

JACK

3000 lb x 15" long

1шт.

Refer to E.10.B [02]

1шт.

20

51200064

U-BOLT

us 1/2" x 3 1/8" w x 4" d 1 1/4" thread

4шт.

21

22903

DECAL

retroreflective amber 2" x 9"

1шт.

22

87577847

WARNING DECAL

Wing Boom Fold

1шт.

23

87577852

WARNING DECAL

Electrocution Hazard

1шт.

24

87577854

DANGER DECAL

Negative Hitch Weight

1шт.

25

23766

SPACER

poly 3 3/4" od x 1 51/64" x 9/16"

1шт.

26

87577796

WASHER

1 51/64" id 3 3/4" 11/64"

1шт.

27

87324056

HEX SOC SCREW,#10 - 32 x 1"

cap #10-32 x 1" fh hex-socket countersunk

6шт.

28

87414690

HITCH

assembly, "perfect"

1шт.

Refer to E.10.B [03]

1шт.

29

87414692

PLATE

hitch top

1шт.

30

87420997

DECAL

maintenance s67

1шт.

31

87445925

GUIDE

front boom rest

2шт.

32

87446496

BAR

lower mount

1шт.

33

87501963

DECAL

plumbing operation

1шт.

34

87501965

DECAL

sight gauge 1600 gallon

1шт.

Shown

1шт.

34

87501964

DECAL

sight gauge 1000 gallon

1шт.

Not Shown

1шт.

35

87504899

DECAL

tank return valve

1шт.

36

CC-106

HOSE CLAMP

for 4 hoses

2шт.

37

GD-500.72

CAUTION DECAL

1шт.

38

GD-500.77

CAUTION DECAL

hydraulics

1шт.

39

GD-622

WASHER

safety chain

1шт.

40

SP-920.30

WARNING DECAL

Chem Exposure

1шт.

41

SQ-780.07

DECAL

agitation

1шт.

42

SQ-780.09

DECAL

induction tank

1шт.

43

SQ-780.10

DECAL

container rinse

1шт.

44

SQ-780.32

WARNING DECAL

Do Not Enter Tank

1шт.

45

87443781

FRAME

1600 gallon sprayer

1шт.

Shown

1шт.

45

87502020

FRAME

1000 gallon sprayer

1шт.

Not Shown

1шт.

45

87505340

FRAME

1600 gallon sprayer wheel boom

1шт.

Not Shown

1шт.

46

87443109

WALKWAY

CATWALK 1000/1600 sprayer

1шт.

47

87443110

LADDER

1000/1600 sprayer

1шт.

48

87445912

FRAME

front rest

1шт.

49

280431

NUT,1/2"-13, G5

14шт.

50

1032751

CUSHION

perfect hitch

1шт.

51

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

8шт.

52

87446007

BUMPER

front boom rest

2шт.

53

87449637

SUPPORT

hyd hose cart front

1шт.

54

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

4шт.

55

1032743

BLOCK

perfect hitch v-block

1шт.

56

87523245

DECAL

SRX160 LH

1шт.

56

87523246

DECAL

SRX160 RH

1шт.

56

87523242

DECAL

SRX100 LH

1шт.

56

87523244

DECAL

SRX100 RH

1шт.

57

87446493

GAUGE

sight 1600 tank

1шт.

58

87448357

PLATE

tank rear support

2шт.

59

87502169

BAR

hose support 2"

1шт.

60

88902

NUT,3/8"-16

1шт.

61

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.
