Запчасти Case IH SRX160 (D.50.C[03]) - WHEEL - ASSEMBLY, CART DUAL TIRE AND RIM D - Travel

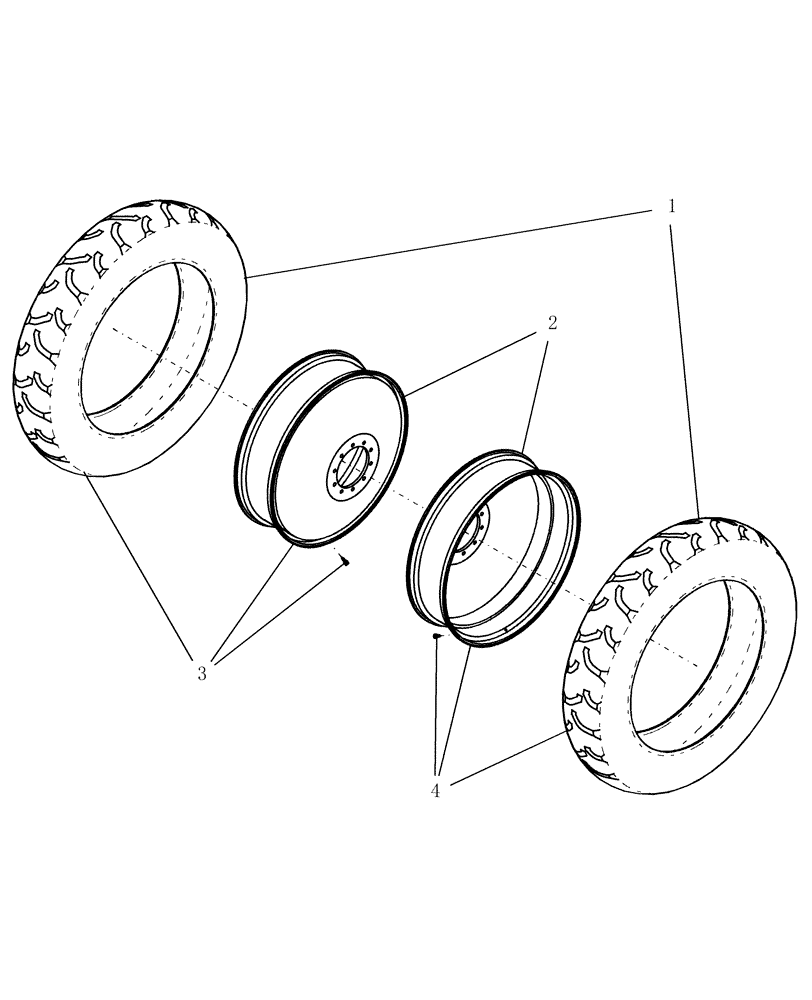

Схема запчастей Case IH SRX160 - (D.50.C[03]) - WHEEL - ASSEMBLY, CART DUAL TIRE AND RIM D - Travel
2
3
4
1

Артикул

Название

Примечание

Количество

1

87501929

TYRE/TIRE

380/90r46 152 r1 tl fs

2шт.

2

87600883

RIM

W12AX46 10 hole 11" offset

2шт.

2

87600256

RIM

W10AX46 10 Hole 11" Offset

1шт.

3

87600894

WHEEL ASSY

with tire 380/90r46 r1 10h 11 RH

1шт.

3

87600892

WHEEL ASSY

With Tire 320/90R46 R1 10H 11 RH

1шт.

4

87600895

WHEEL ASSY

with tire 380/90r46 r1 10h 11 LH

1шт.

4

87600893

WHEEL ASSY

With Tire 320/90R46 R1 10H 11 LH

1шт.

Выбрано товаров: 7
