Запчасти Case IH SRX160 (D.50.C[01]) - WHEEL - ASSEMBLY, CART SINGLE D - Travel

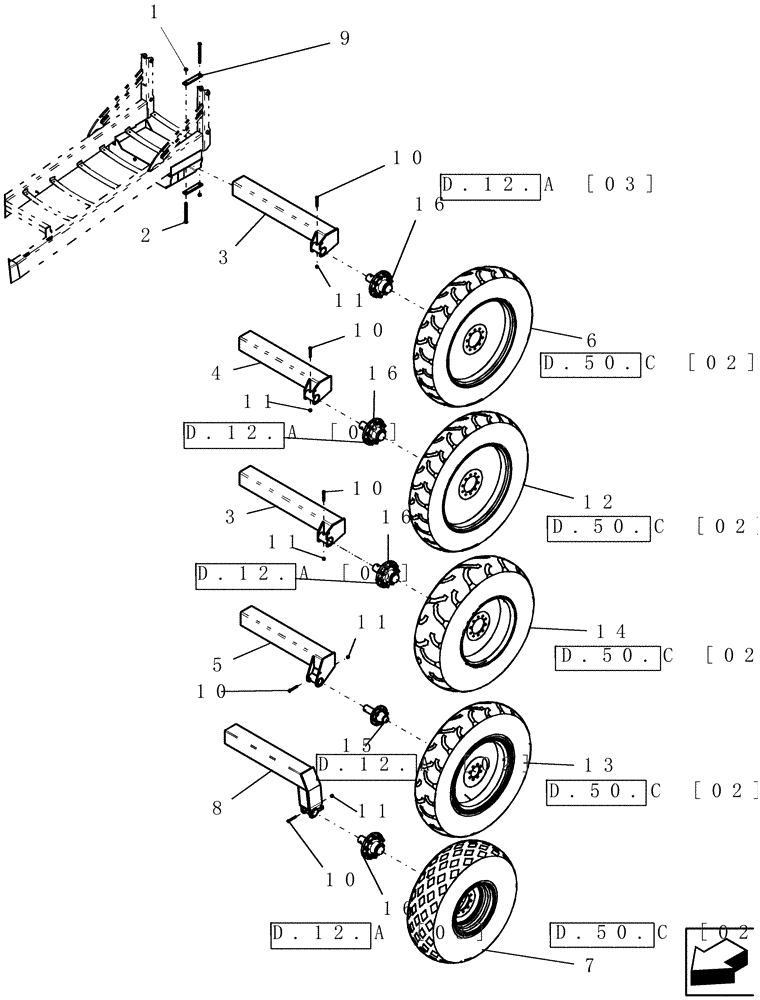

Схема запчастей Case IH SRX160 - (D.50.C[01]) - WHEEL - ASSEMBLY, CART SINGLE D - Travel
6
7
12
10
11
10
16
11
9
3
10
16
13
15
1
10
10
11
11
16
2
3
4
11
8
16
5
14

Артикул

Название

Примечание

Количество

1

280375

NUT,3/4"-10, GC

2шт.

2

413-12176

BOLT,3/4"-10 x 11", Gr 5

2шт.

3

87440164

AXLE

10b 0 offset 72-120 sp

2шт.

4

87501687

AXLE

10b 0 offset 60-120 sp

1шт.

5

87501685

AXLE

8b 4 offset 62-120 sp

1шт.

6

87501927

WHEEL ASSY

380/90r46 r1 10h 0 RH

1шт.

Refer to D.50.C [02]

1шт.

6

87501928

WHEEL ASSY

380/90r46 r1 10h 0 LH

1шт.

Refer to D.50.C [02]

1шт.

6

87501939

WHEEL ASSY

380/85r46 r1 10h 0 RH

1шт.

Refer to D.50.C [02]

1шт.

6

87501945

WHEEL ASSY

380/85r46 r1 10h 0 LH

1шт.

Refer to D.50.C [02]

1шт.

7

87506221

WHEEL ASSY

dw16 x 26 10 hole with 18.4 - 12 ply tire

1шт.

Refer to D.50.C [02]

1шт.

8

87501751

AXLE

10b 8 offset 80-120 sp

1шт.

9

87445688

CLAMP

axle 8"

2шт.

9

87624964

BAR

axle clamp heavy

1шт.

Used with 87600714

1шт.

10

88729

BOLT,Hex, 5/8" - 11 x 5", Gr 5

5шт.

11

85700693

NUT,5/8" - 11, Gr C

5шт.

12

87501932

WHEEL ASSY

320/90r46 r1 10h 0 RH

1шт.

Refer to D.50.C [02]

1шт.

12

87501933

WHEEL ASSY

320/90r46 r1 10h 0 LH

1шт.

Refer to D.50.C [02]

1шт.

13

87501915

WHEEL ASSY

380/80R38 R1 8 hole 1 1/8" RH

1шт.

Refer to D.50.C [02]

1шт.

13

87501916

WHEEL ASSY

380/80R38 R1 8 hole 1 1/8" LH

1шт.

Refer to D.50.C [02]

1шт.

14

87501920

WHEEL ASSY

480/80r38 r1 10h 0 RH

1шт.

Refer to D.50.C [02]

1шт.

14

87501923

WHEEL ASSY

480/80r38 r1 10h 0 LH

1шт.

Refer to D.50.C [02]

1шт.

15

NSS

NOT SOLD SEPARAT

HUB/SPINDLE ASSY H817-14 LG

1шт.

Refer to D.12.A [02]

1шт.

16

CC-188A

HUB

assembly and spindle h1010 14 5/64" long

4шт.

Refer to D.12.A [03]

1шт.

Выбрано товаров: 37
