Запчасти Case IH SRX160 (D.12.A[04]) - WHEEL - ASSEMBLY, CART DUAL 1012 HUB AND SPINDLE D - Travel

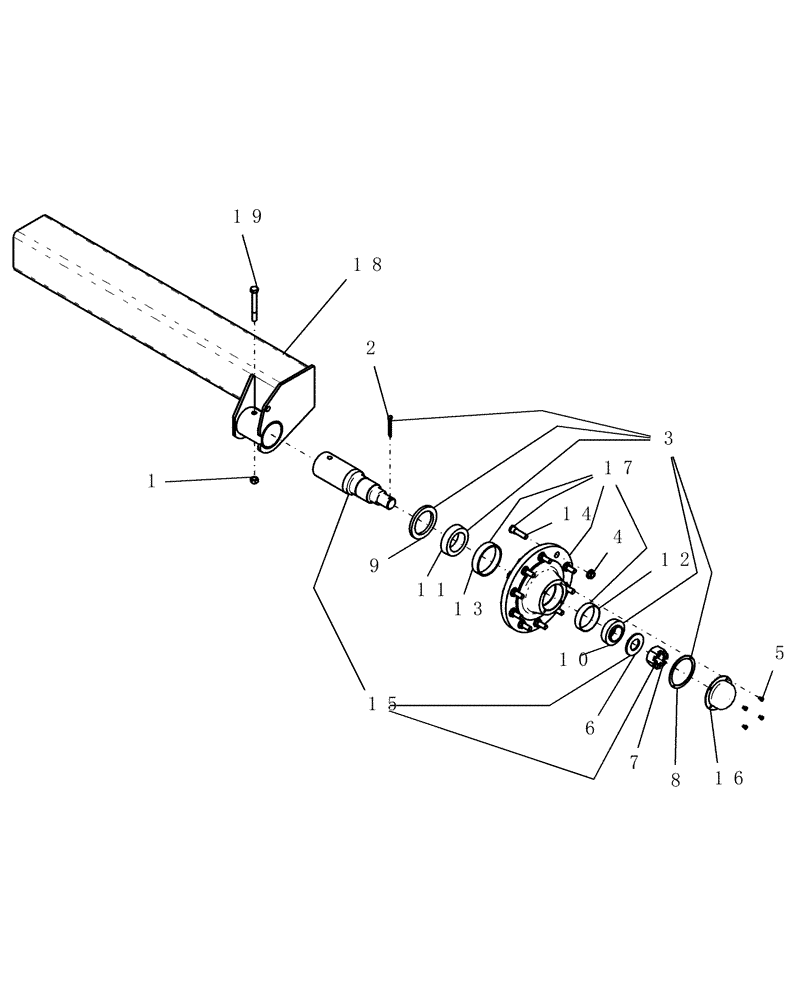

Схема запчастей Case IH SRX160 - (D.12.A[04]) - WHEEL - ASSEMBLY, CART DUAL 1012 HUB AND SPINDLE D - Travel
6
11
17
15
16
18
2
19
8
13
7
9
12
1
14
3
5
10
4

Артикул

Название

Примечание

Количество

1

280375

NUT,3/4"-10, GC

1шт.

2

281072

COTTER PIN,5/16" Dia x 3"

1шт.

3

412770A1

WHEEL BEARING KIT

hub completion - h1021

1шт.

Includes 2488, 9861, 9864, 9865, 9866

1шт.

4

280881

NUT,7/8"-9, G8

10шт.

4

87366

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

10шт.

4

9790660

FLANGE NUT,Flg, 3/4"-16, G8

10шт.

5

1027683

BOLT

wheel 5/16"-18 x 1/2", G2

4шт.

6

51200133

WASHER,52mm ID x 101.6mm OD x 6.35mm Thk

spindle wa35 2 1/32" id

1шт.

7

51200125

SLOTTED NUT,2"-12, G5

1шт.

8

9861

GASKET

rubber

1шт.

9

9864

OIL SEAL

oil SE55

1шт.

10

86837562

ROLLER BEARING,66.67mm ID x 38.35mm W

#HM212049

1шт.

11

A50532

ROLLER BEARING,89.97mm ID x 40.2mm W

#HM218248

1шт.

12

70680631

BEARING CUP,122.24mm OD x 29.72mm W

#HM212010

1шт.

13

A50529

BEARING CUP,147.03mm OD x 32.5mm W

#HM218210

1шт.

14

426-1480

BOLT,Hex, 7/8" - 9 x 5", Gr 8

10шт.

14

22792

STUD

3/4"-16 x 3 9/32", G5

10шт.

15

87600886

ASSEMBLY

s1020- 4 1/2" x 16 5/8" sp cw nut and washer

1шт.

Includes 9234, 9235

1шт.

16

87506288

HUB CAP

dc28 bolt on

1шт.

17

87506289

HUB

H1021 with cups & studs

1шт.

Includes 9868, 9869

1шт.

18

87504369

AXLE

axle, 10b 1 offset duals

1шт.

19

280120

BOLT,Hex, 3/4" - 10 x 6", Gr 5

1шт.

Выбрано товаров: 25
