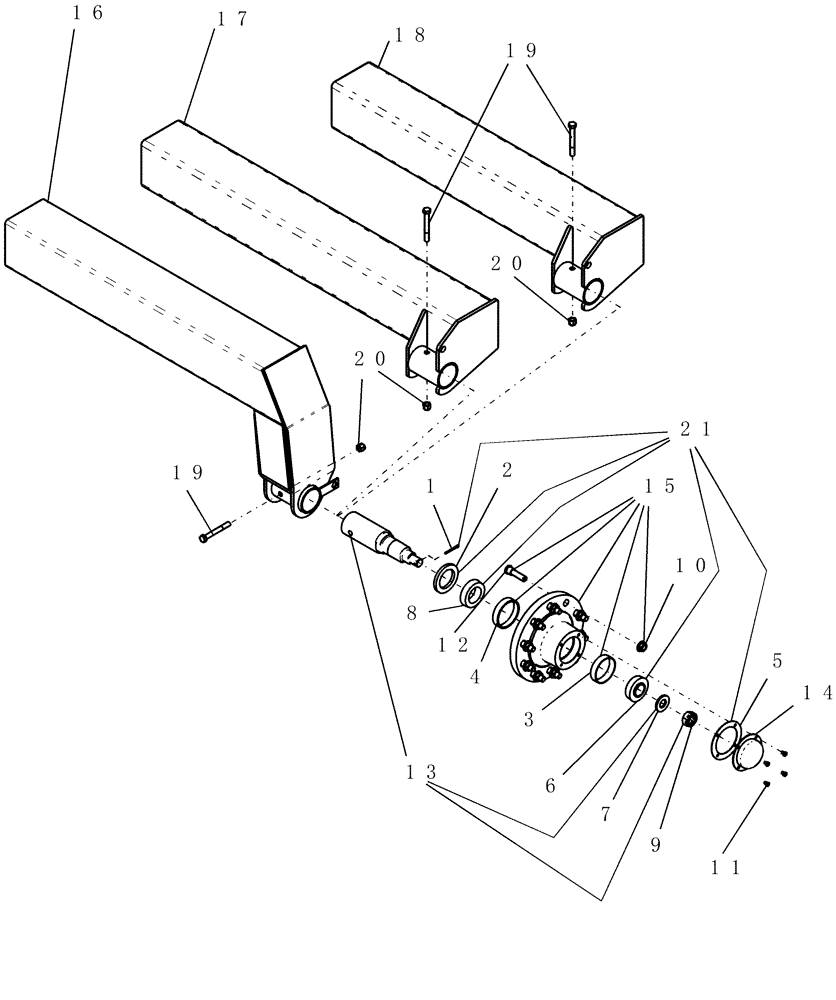

Запчасти Case IH SRX160 (D.12.A[03]) - WHEEL - ASSEMBLY, CART 1010 HUB AND SPINDLE D - Travel

1

87400

COTTER PIN,3/16" x 2"

1шт.

2

412775A1

OIL SEAL

se48

1шт.

3

21884250

BEARING CUP,107.95mm OD

#453A

1шт.

4

371878A1

BEARING CUP,112.71mm OD x 23.81mm W

#39520

1шт.

5

1027681

GASKET

rubber

1шт.

6

86594308

BEARING CONE,44.45mm ID x 29.32mm W

#460

1шт.

7

412778A1

WASHER,31.75mm ID

spindle wa23 1 1/4" id

1шт.

8

371884A1

BEARING CONE,63.5mm ID x 30.24mm W

#39585

1шт.

9

7666

SLOTTED NUT,1 1/4"-12, G2

1шт.

10

429-2912

FLANGE NUT,Flg, 3/4"-16, G8

10шт.

11

1027683

BOLT

wheel 5/16"-18 x 1/2", G2

4шт.

12

22792

STUD

3/4"-16 x 3 9/32", G5

10шт.

13

23892

SPINDLE

s1010 3 1/2" x 14 5/64" stress proof

1шт.

14

87506238

HUB CAP

dc27 bolt on

1шт.

15

87506239

HUB

h1010 c/w cups & studs

1шт.

16

87501751

AXLE

10b 8 offset 80-120 sp

1шт.

17

87440164

AXLE

10b 0 offset 72-120 sp

1шт.

18

87501687

AXLE

10b 0 offset 60-120 sp

1шт.

19

88729

BOLT,Hex, 5/8" - 11 x 5", Gr 5

3шт.

20

85700693

NUT,5/8" - 11, Gr C

3шт.

21

7672

KIT

hub bearing completion - h1010

1шт.

Includes 2116, 412775A1, 7660, 412777A1 and ST2016A

1шт.
