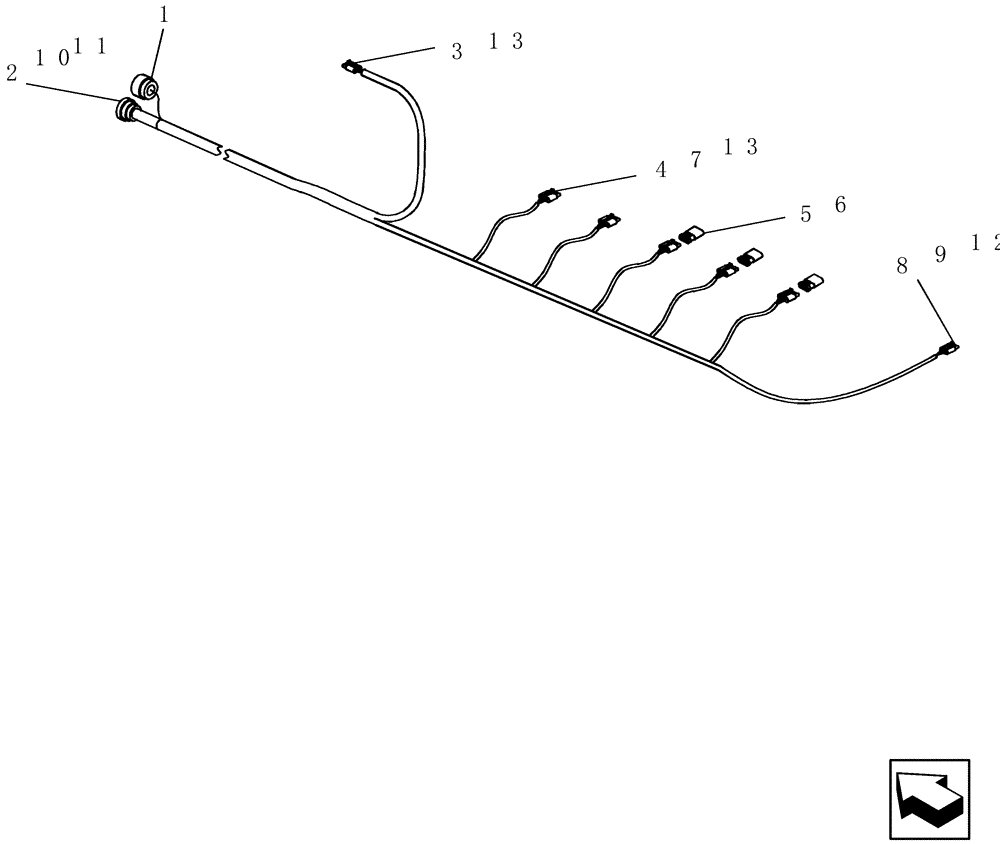

Запчасти Case IH SRX160 (A.50.A[02]) - ELECTRICAL - HARNESS 87505109 A - Distribution Systems

0

87505109

WIRE HARNESS

sprayer cart SP655

1шт.

1

87577732

DUST CAP

14 cond rcp Deutsch

1шт.

2

425290A1

PLUG

connector, elec metal 14c

1шт.

3

87644909

WIRE CONNECTOR,Female, 3 Pins

plastic 3c plug

2шт.

4

225124C1

SEAL,2 - 2.9 mm2

seal grn 2.8-2 omm

2шт.

5

245487C1

ELEC CONNECTOR,Male, 4 Pin

plastic 4c receptacle

3шт.

6

225127C1

PLUG

cavity, green rubber

12шт.

7

245486C1

ELEC CONNECTOR,4 Pin

plastic 4c plug

5шт.

8

87696551

CONTACT HOUSING,Female, 3 Pole

cab plastic plug 3c

1шт.

9

51200009

STOP LOCK

3c plug

1шт.

10

225406C1

ELEC. TERMINAL PIN,Male, 1 - 2 mm2

pin 14-16awg

2шт.

11

225348C1

ELEC. TERMINAL PIN,Male, 0.75 - 2.00 mm2

pin 16-18awg

12шт.

12

223952A1

ELEC. TERMINAL PIN,Nickel, 0.8 - 1.0mm

socket 18-20awg

3шт.

13

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

socket 18-20awg

28шт.
