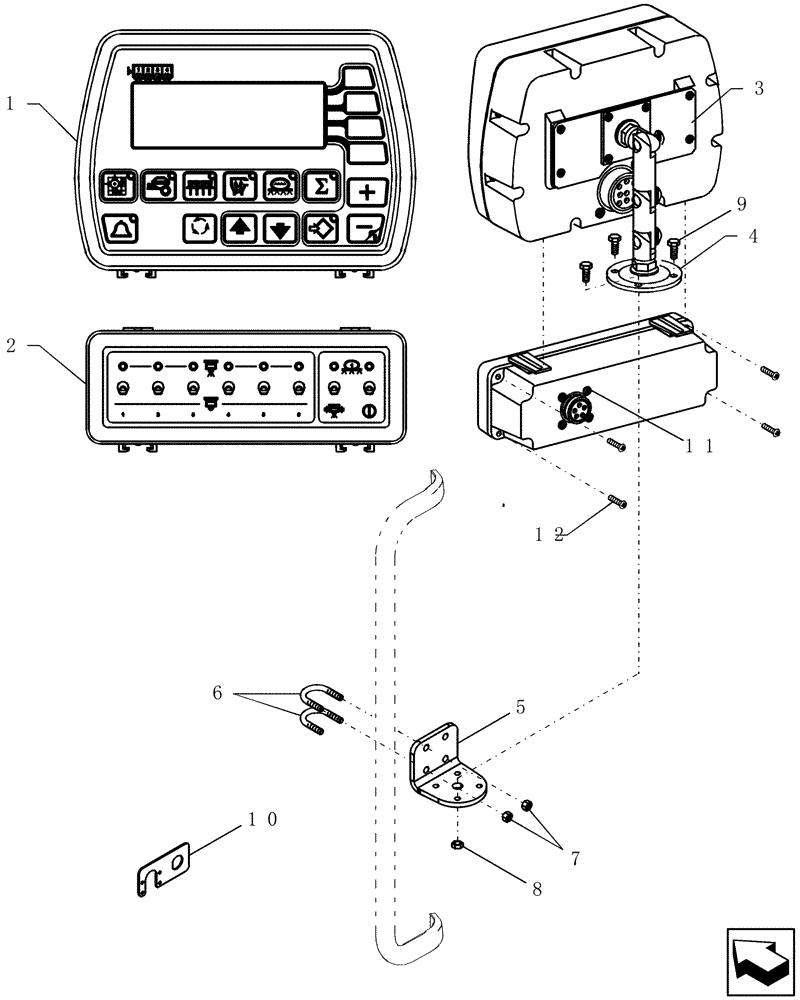

Запчасти Case IH SRX160 (A.50.A[01]) - ELECTRICAL - 4 LINE MONITOR, CONSOLE AND SWITCH UNIT A - Distribution Systems

1

87604748

ECU

4 line monitor V6.0

1шт.

1

87604748R

REMAN ELECT CONTROL

ELECTRONIC

1шт.

1

87604748C

CORE-ELECTRONIC CONT

Return Number, ELECTRONIC CONTROL UNIT

1шт.

2

15100

SWITCH

control unit, 4 line monitor - sprayer 1

1шт.

3

425047A1

BRACKET

console to pedstal mount

1шт.

4

425046A1

BRACKET

6" adjustable console mount

1шт.

5

402696A1

MOUNTING PARTS

monitor

1шт.

6

435430A1

U-BOLT

ur 1/4" x 1" w x 1 3/4" d 1" thread

2шт.

7

280129

NUT,1/4"-20

4шт.

8

86632551

NUT,#10-24, GB

4шт.

9

463-11016

SCREW,Hex Hd, #10-24 x 1"

4шт.

10

GL-521

MOUNTING PARTS

implement receptacle

1шт.

11

87577890

SELF-TAP SCREW

#6-24 x 3/8" ph a

1шт.

12

12321

SELF-TAP SCREW,#6 - 20 x 1/2"

self-tap #6-20 x 1/2" ph bt

1шт.

100

51200015

SWITCH

toggle spdt on off on pwb

7шт.

100

87577772

SWITCH

toggle spdt

1шт.
