(A.40.A[04]) - SAFETY - ELECTRICAL CABLE, LIGHTING EXTENSION - WHEELED BOOM

Запчасти Case IH SRX160 (A.40.A[04]) - SAFETY - ELECTRICAL CABLE, LIGHTING EXTENSION - WHEELED BOOM A - Distribution Systems

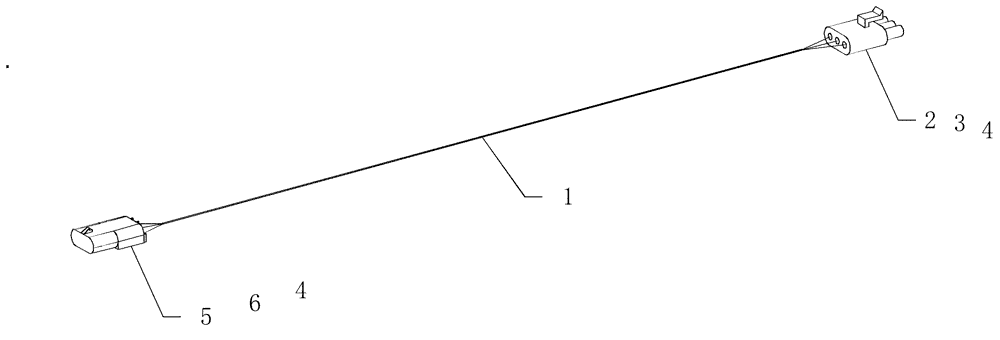

Схема запчастей Case IH SRX160 - (A.40.A[04]) - SAFETY - ELECTRICAL CABLE, LIGHTING EXTENSION - WHEELED BOOM A - Distribution Systems
4
4
6
3
2
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87417494

HARNESS

safety lighting 21 meter

2шт.

2

87644909

WIRE CONNECTOR,Female, 3 Pins

plastic 3c plug

1шт.

3

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

socket 14-16awg

3шт.

4

225125C1

SEAL

Connector Grey 3.49 - 2.81 mm

6шт.

5

245485C1

ELEC CONNECTOR,Male, 3 Pin

plastic 3c receptacle

1шт.

6

225119C1

TERMINAL

14-16awg

3шт.
