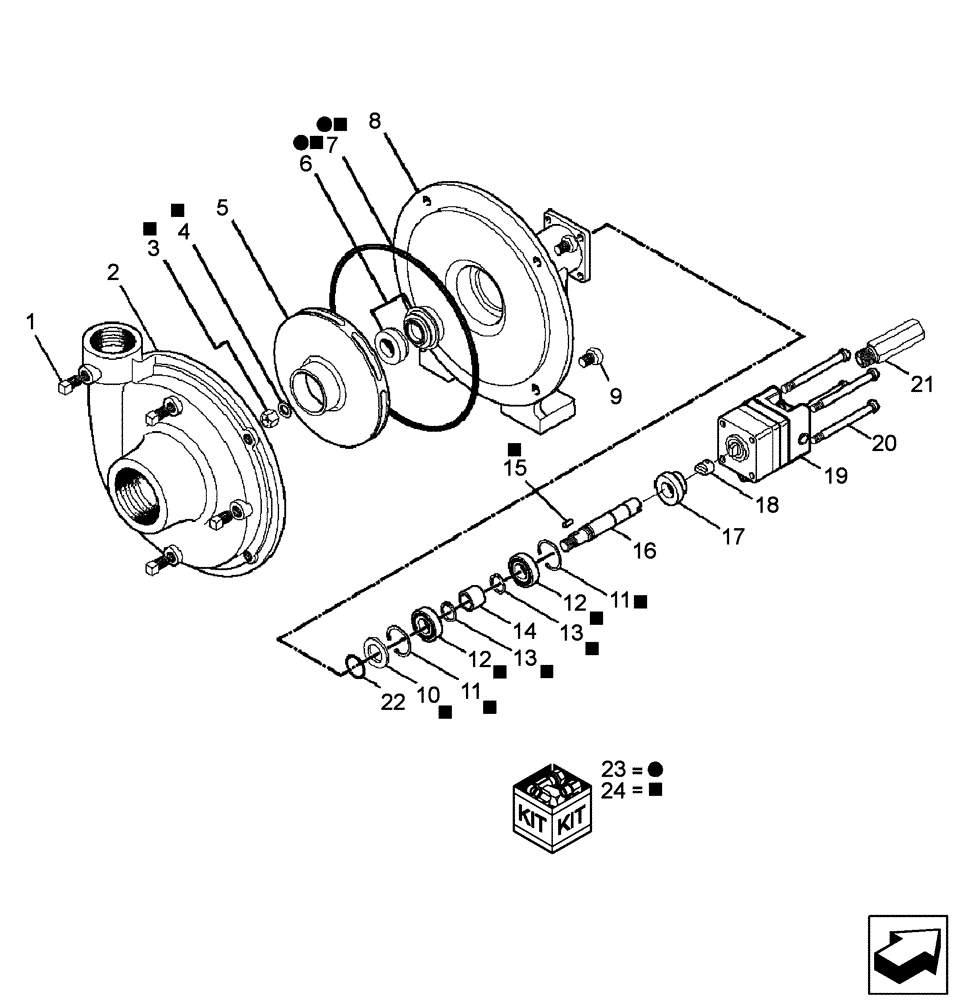

Запчасти Case IH SRX160 (L.20.C[01]) - PUMP - ASSEMBLY, HYDRAULIC CENTRIFUGAL DETAIL (ACE) BSN Y7S005112 L - Field Processing

0

8730

HYDRAULIC PUMP

centrifugal Ace

1шт.

1

4187

DRAIN PLUG

4шт.

2

8735

HOUSING

volute, Ace pump

1шт.

3

8737

NUT

3/8"-24

1шт.

4

8738

LOCK WASHER

3/8" stainless steel Ace pump

1шт.

5

8740

IMPELLER

pump Ace c/w keyway

1шт.

6

8734

SEAL

viton - Ace pump

1шт.

7

8732

O-RING

Ace pump

1шт.

8

8736

FLANGE

mount, Ace pump

1шт.

9

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

4шт.

10

8744

SLINGER

Ace pump

1шт.

11

8742

SNAP RING

internal - Ace pump

2шт.

12

8743

BEARING,15.88mm ID x 34.93mm OD x 11mm W

Ace pump

2шт.

13

8741

SNAP RING

external - Ace pump

2шт.

14

8748

SPACER

Ace pump

1шт.

15

8739

KEY

impeller Ace pump

1шт.

16

8733

SHAFT

Ace pump

1шт.

18

8747

COUPLING

Ace pump

1шт.

19

8746

HYDRAULIC MOTOR

Ace pump

1шт.

20

280444

BOLT,Hex, 5/16" - 18 x 3 3/4", Gr 5

4шт.

21

21837

RESTRICTOR

orifice, motor

1шт.

22

NSS

NOT SOLD SEPARAT

O-ring, shaft seal

1шт.

23

8749

REPAIR KIT

Ace pump

1шт.

Includes 8732 and 8734

1шт.

24

8749K

REPAIR KIT

Ace pump complete

1шт.

Includes 8749, 8737, 8738, 8739, 8741, 8742, 8743 and 8744

1шт.
