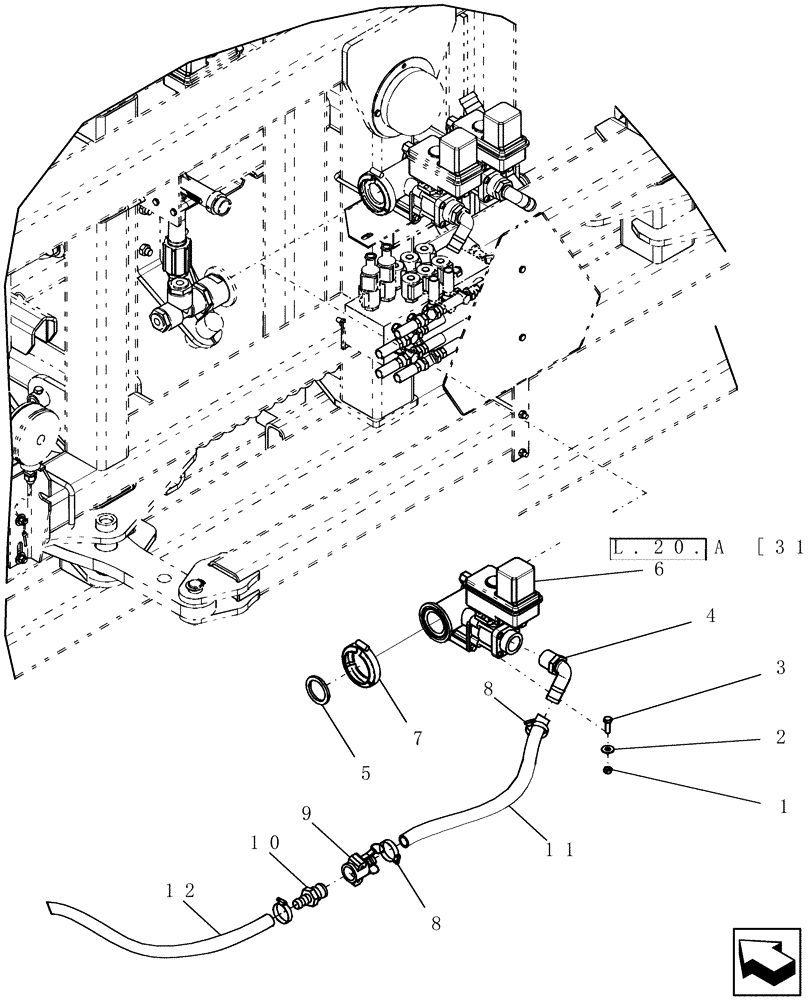

Запчасти Case IH SRX160 (L.20.B[15]) - ACCESSORIES - BALL VALVE KIT L - Field Processing

1

280736

NUT,5/16"-18, GC

3шт.

2

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

7шт.

3

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

3шт.

4

87562259

FITTING,1" Male Thread x 1" 90 Degree Hose Barb

fitting, poly 90º 1" mpt 1" hb

3шт.

5

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

4шт.

6

87500051

VALVE

ball elec flng tee comp

3шт.

Refer to L.20.A [31]

1шт.

7

400502A1

CLAMP,80.96mm ID

2" flange banjo #fc200

4шт.

8

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

3шт.

9

8607

FITTING

cam lever coupler 1" hb 100c

1шт.

10

87578618

COUPLING,1" Male Adapter-1" Hose Shank

poly 1" hb 100 e clc

1шт.

11

1387

HOSE,1.00" ID x 2.00"

1" x 2" br x 200 psi black

1шт.

Cut to 288"

1шт.

12

1387

HOSE,1.00" ID x 2.00"

1" x 2" br x 200 psi black

1шт.

Cut to 330"

1шт.
