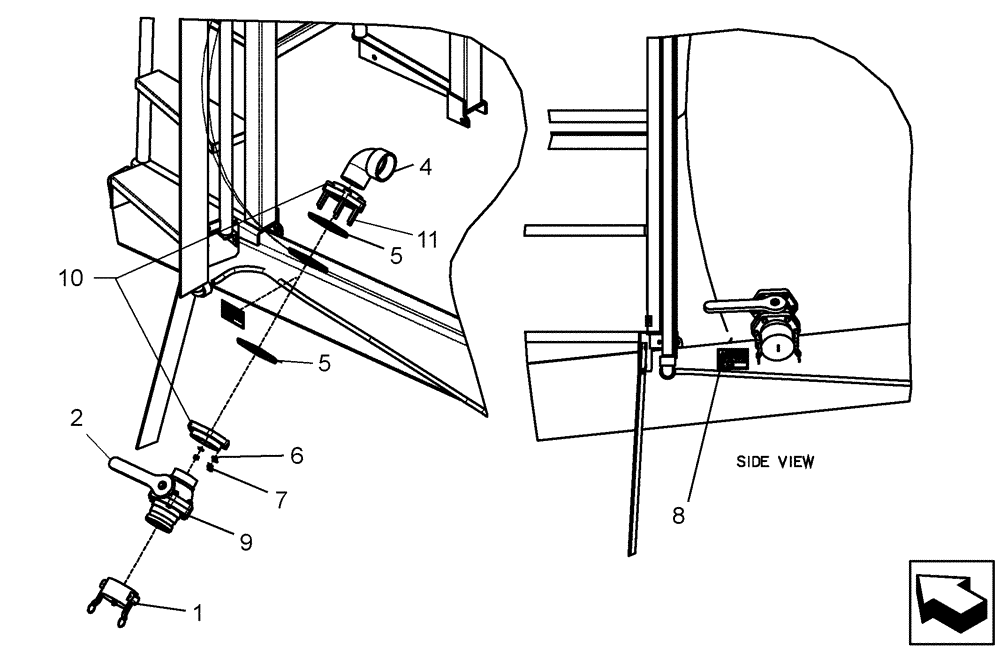

Запчасти Case IH SRX160 (L.20.B[13]) - OPTION - THREE INCH BOTTOM FILL L - Field Processing

1

87609772

DUST CAP,3" Cap

poly cap 3" clc

1шт.

2

87609771

VALVE

handle long

1шт.

4

87609773

ELBOW,3" 90 Degree Poly Street Elbow

poly 90º 3" mp 3" fp

1шт.

5

87609769

GASKET

3" bolted bulkhead

2шт.

6

280681

LOCK WASHER,3/8", Stainless

6шт.

7

8769

NUT

3/8"-16 SS

6шт.

8

87609774

CAUTION DECAL

3" fill

1шт.

9

87609770

VALVE,3" Male NPT x 3" Male Adapter

stubby 3"

1шт.

10

87609768

BULKHEAD,3" x 3" Threaded EPDM Flange

3" Poly, Bolted

1шт.

11

NSS

NOT SOLD SEPARAT

bolt

6шт.
