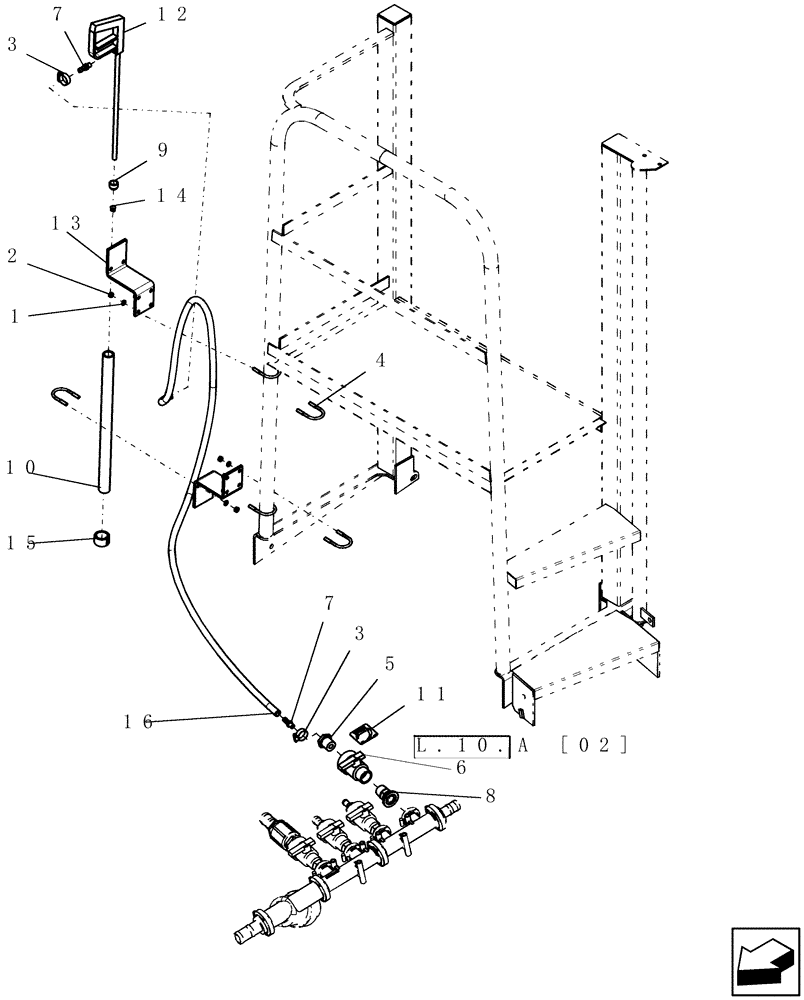

Запчасти Case IH SRX160 (L.20.B[12]) - ACCESSORIES - LOW PRESSURE WASH WAND L - Field Processing

1

80681

LOCK WASHER,5/16"

10шт.

2

9635082

NUT,5/16" - 18, Gr 5

10шт.

3

4365

HOSE CLAMP

#12 type f 11/16" to 1 1/4"

2шт.

4

6652

U-BOLT

ur 5/16"-18 x 1 3/4" w 2 3/4" d 1" thread

5шт.

5

8610

REDUCER FITTING

poly bushing 1"mpt x 1/4"fpt

1шт.

6

22329

VALVE

valve ball 1"

4шт.

Refer to L.10.A [02]

1шт.

7

23270

FITTING

brass straight adapter 1/4" mp 1/2" hb

2шт.

8

87502088

FITTING,1" Flange x 1" Male Thread

poly 1" mpt x 1" flange

4шт.

9

3019

NUT

nozzle nylon

1шт.

10

SQ-392

HOLDER

rinse wand

1шт.

11

SQ-780.12

DECAL

rinse wand

1шт.

12

8990

TOOL

rinse wand

1шт.

13

87504797

BRACKET

rinse wand holder

2шт.

14

8991

TIP

nozzle 8020-ss std flat

1шт.

15

SQ-863

HOSE,1.25" ID x 1.00"

1шт.

15

1388

HOSE,1.25" ID x 2.00"

1 1/4" x 2" br x 150 psi black

1шт.

Cut to 1"

1шт.

16

3429

HOSE

1/2" id single braid

1шт.

Cut to 960"

1шт.

100

8992

KIT

pesticide safety

1шт.

Not Shown

1шт.
