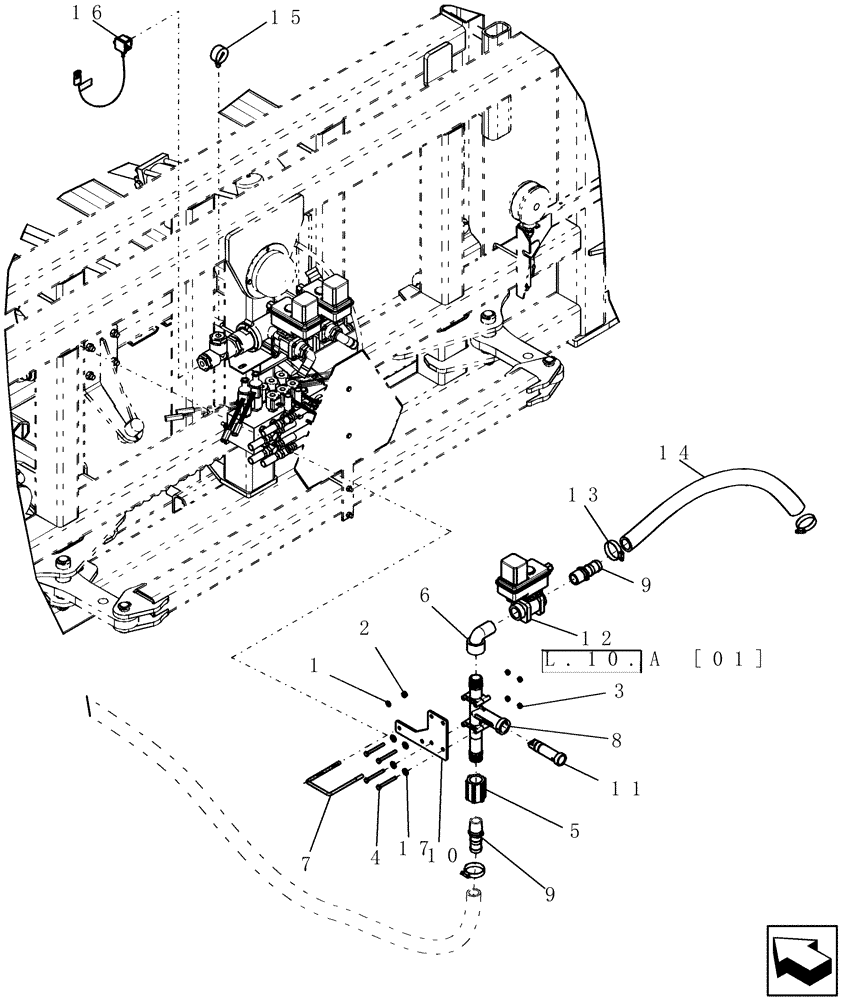

Запчасти Case IH SRX160 (L.20.B[11]) - ACCESSORIES - ASSEMBLY, SP655 PLUMBING L - Field Processing

1

80681

LOCK WASHER,5/16"

12шт.

2

9635082

NUT,5/16" - 18, Gr 5

12шт.

3

280129

NUT,1/4"-20

10шт.

4

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

4шт.

5

87558397

COUPLING,1" Poly Pipe Coupling

poly coupler 1fp

1шт.

6

6757

ELBOW

fitting, poly 90º 1"mp 1"fp

1шт.

7

8474

U-BOLT

us 5/16" x 3 1/16" w x 4 3/4" d 1" thread

3шт.

8

87577867

TEE

flow, 5 to 50 Imperial gpm, complete with pin and hairpin

1шт.

Optional

1шт.

9

21393

PIPE FITTING,1" Male Thread x 1-1/4" Hose Barb

poly straight adapter 1" mp 1 1/4" hb

2шт.

8

87577740

TEE

flow 1 1/2 to 35 Imperial gpm

1шт.

Standard

1шт.

10

87503677

BRACKET

flow tee mount

1шт.

11

15577K

KIT

flow sensor replacement

1шт.

12

87505108

VALVE

elec pressure reg 344b

1шт.

Includes 1369, 461-32512, 87500053, 87500054, 87500141, 87505116

1шт.

Refer to L.10.A [01]

1шт.

13

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

3шт.

14

1388

HOSE,1.25" ID x 2.00"

1 1/4" x 2" br x 150 psi black

1шт.

Cut to 34"

1шт.

15

21380

GAUGE

pressure 0-160 psi

1шт.

16

15263V3

SENSOR

pressure

1шт.

17

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

4шт.

100

1388

HOSE,1.25" ID x 2.00"

1 1/4" x 2" br x 150 psi black

1шт.

Not Shown

1шт.
