Запчасти Case IH SRX160 (L.20.B[06]) - PLUMBING - SUSPENDED BOOM - INNER BOOM PLUMBING ASSEMBLY L - Field Processing

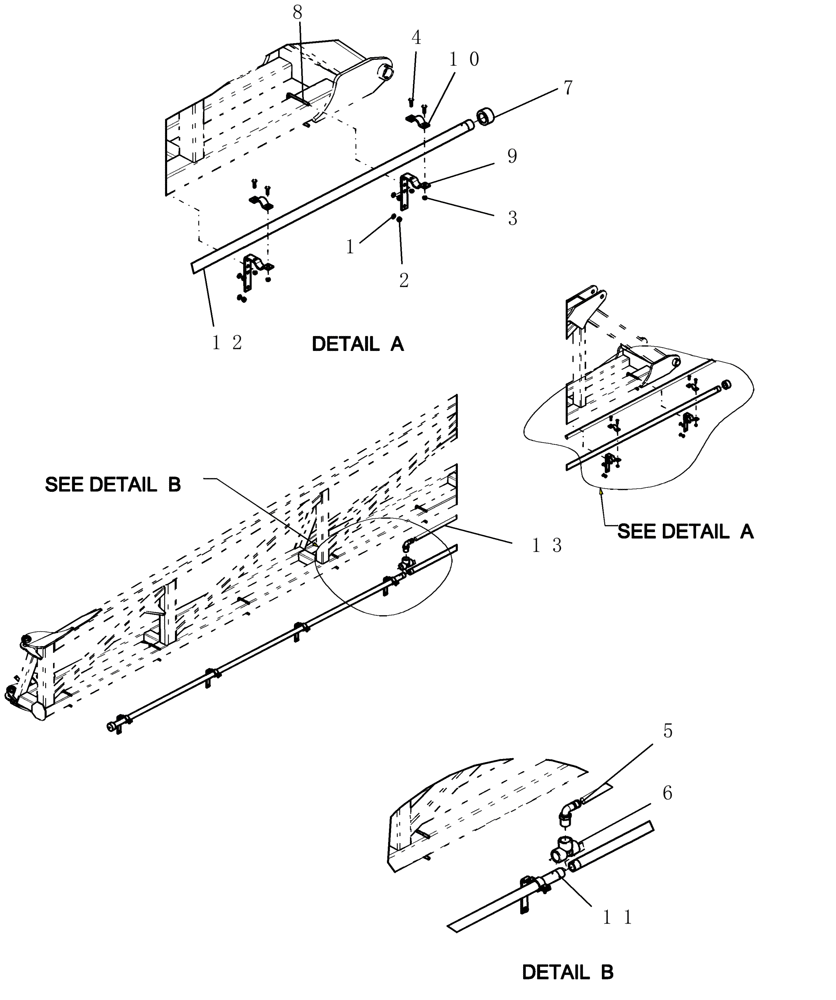

Схема запчастей Case IH SRX160 - (L.20.B[06]) - PLUMBING - SUSPENDED BOOM - INNER BOOM PLUMBING ASSEMBLY L - Field Processing
8
11
1
6
2
7
9
13
5
12
10
4
3

Артикул

Название

Примечание

Количество

1

80681

LOCK WASHER,5/16"

16шт.

2

9635082

NUT,5/16" - 18, Gr 5

16шт.

3

280129

NUT,1/4"-20

16шт.

4

86508769

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1", Gr 5

16шт.

5

87562259

FITTING,1" Male Thread x 1" 90 Degree Hose Barb

fitting, poly 90º 1" mpt 1" hb

1шт.

6

6756

TEE

fitting, poly 1" fp

1шт.

7

87577690

CAP,1" Cap

fit poly 1" fp

2шт.

8

7611

U-BOLT

us 5/16" x 3 1/16" w x 3 3/4" d 1" thread

8шт.

9

87502029

BAR

spray pipe mount

8шт.

10

SP-136

CLAMP

sprayboom

5шт.

11

87452551

PIPE

poly 1" x 110 1/2" long 6 hole

1шт.

Bulk pipe 23666 with holes is available

1шт.

12

87452552

PIPE

poly 1" x 133 1/2" long 7 hole

1шт.

Bulk pipe 23666 with holes is available

1шт.

13

1387

HOSE,1.00" ID x 2.00"

1" x 2" br x 200 psi black

1шт.

Cut to 170"

1шт.

Выбрано товаров: 16
