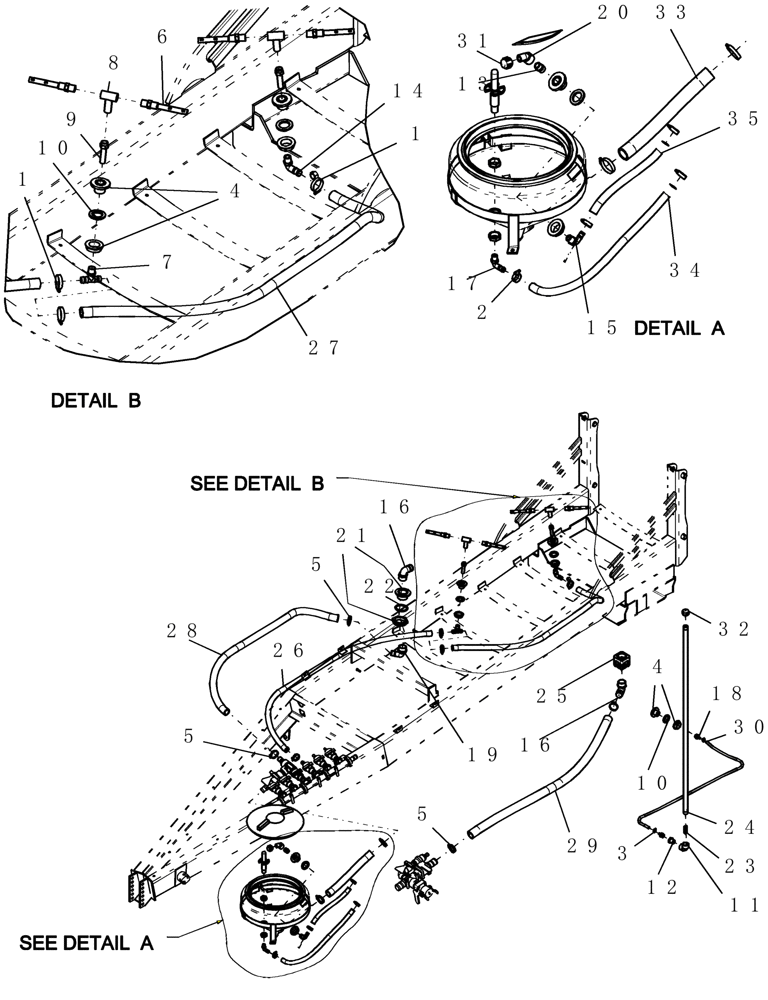

Запчасти Case IH SRX160 (L.20.B[01]) - PLUMBING - TANK ASSEMBLY, CART L - Field Processing

1

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

4шт.

2

86536660

HOSE CLAMP,25mm - 44mm

4шт.

3

82039341

CLAMP,12mm - 22mm

#4, 0.25/0.62 Type M Worm

2шт.

4

406148A1

FITTING

bulkhead 3/4" dfpt c/w epdm gasket

4шт.

5

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

6шт.

6

87558392

AGITATOR

jet type 36743, polypropylene

4шт.

7

87562253

TEE

fitting, poly 1" hb 3/4" mp 1" hb

1шт.

8

87562258

TEE

agitator - short

2шт.

9

5978

EXTENSION

agitator tee poly

2шт.

10

6042

GASKET

bulkhead fitting

4шт.

11

6758

ELBOW

fitting, poly 90º 1"fp 1"fp

1шт.

12

6802

REDUCER FITTING

poly bushing 1"mpt x 3/4"fpt

1шт.

13

405788A1

NIPPLE,3/4" Short Poly Nipple

poly nipple 3/4" mp 3/4" mp short

1шт.

14

6807

ELBOW

fitting, poly 90º 3/4" mpt 1" hb

1шт.

15

328179A1

ELBOW

fitting poly 90° 3/4" mpt 3/4" mpt

1шт.

16

401875A1

FITTING,2" Male Thread x 2" 90 Degree Hose Barb

2" MNPT x 2" Hose Barb, Poly

2шт.

17

8041

ELBOW

fitting, poly 90º 1/2"mpt 3/4" hb

1шт.

18

8688

FITTING

poly straight adapter3/4"mp 3/8"hb

2шт.

19

21383

ELBOW

fitting, poly 90º 2 mpt 1 1/2" hb

1шт.

20

21389

ELBOW

fitting, poly 45º 3/4"mp 3/4"fp

1шт.

21

22246

BULKHEAD,2" Poly Bulkhead EPDM Tank Fitting

2" heavy complete

1шт.

22

22331

GASKET

2" bulkhead - 3 1/4" id x 3 1/2" od x 11/64"

1шт.

23

24101

FLOAT

7/8" x 2 1/2" polyethylene

1шт.

24

87446497

TUBE,26.6 mm ID x 33.4 mm OD x 1790 mm L

sight gauge

1шт.

25

87501980

BULKHEAD

bolted 2" threads

1шт.

26

1387

HOSE,1.00" ID x 2.00"

1" x 2" br x 200 psi black

1шт.

Cut to 91"

1шт.

27

1387

HOSE,1.00" ID x 2.00"

1" x 2" br x 200 psi black

1шт.

Cut to 65"

1шт.

28

22332

HOSE

1 1/2" x 2" br x 150 psi

1шт.

160

1шт.

Cut to 71"

1шт.

28

22332

HOSE

1 1/2" x 2" br x 150 psi

1шт.

100

1шт.

Cut to 83"

1шт.

29

408352A1

HOSE

2" id wire suction

1шт.

Cut to 74"

1шт.

30

1970

HOSE

3/8" clear vinyl (sight gauge)

1шт.

Cut to 67"

1шт.

160

1шт.

30

1970

HOSE

3/8" clear vinyl (sight gauge)

1шт.

Cut to 51"

1шт.

100

1шт.

31

SQ-809

NOZZLE,BICO ENXAGUE (Rinse Nozzle)

induction tank

1шт.

32

SQ-820

CAP

breather, sight gauge

1шт.

33

3123

HOSE

1 1/2" Water Suction

1шт.

Cut to 21"

1шт.

34

86993466

HOSE,0.75" ID

Order in Multiples of 100

1шт.

Cut to 33"

1шт.

35

86993466

HOSE,0.75" ID

Order in Multiples of 100

1шт.

Cut to 16"

1шт.
