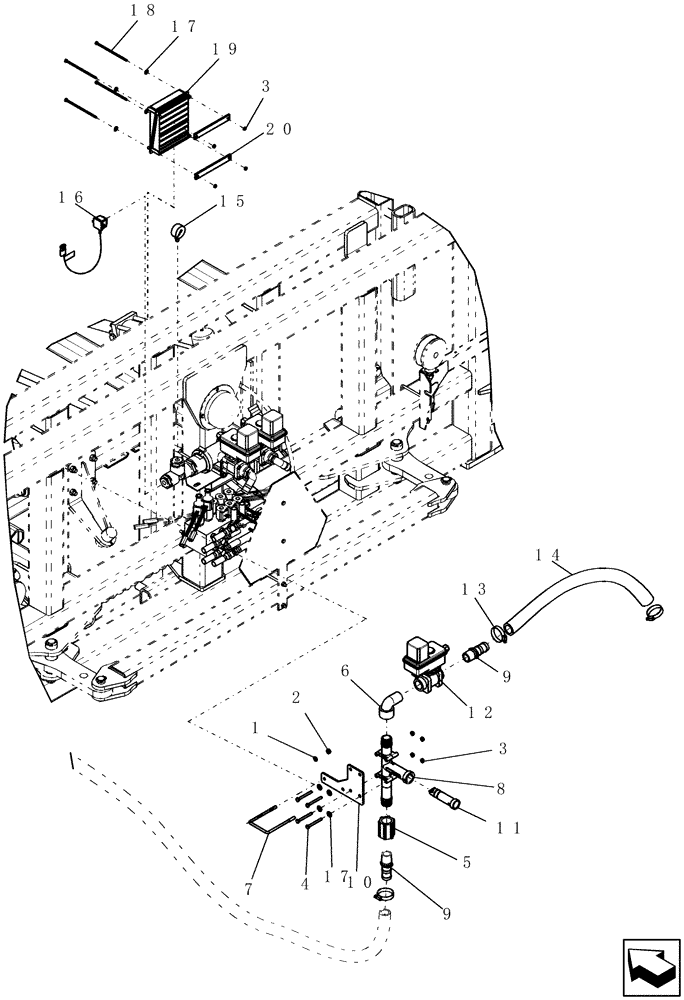

Запчасти Case IH SRX160 (A.30.A[01]) - OPTION - SUSPENDED BOOM 4 LINE MONITOR ELECTRONICS A - Distribution Systems

1

80681

LOCK WASHER,5/16"

12шт.

2

9635082

NUT,5/16" - 18, Gr 5

12шт.

3

280129

NUT,1/4"-20

14шт.

4

280566

BOLT,Hex, 1/4" - 20 x 2 3/4", Gr 5

4шт.

5

87558397

COUPLING,1" Poly Pipe Coupling

poly coupler 1fp

1шт.

6

6757

ELBOW

fitting, poly 90º 1"mp 1"fp

1шт.

7

8474

U-BOLT

us 5/16" x 3 1/16" w x 4 3/4" d 1" thread

3шт.

8

87577867

TEE

flow, 5 to 50 Imperial gpm, complete with pin and hairpin

1шт.

Optional

1шт.

9

21393

PIPE FITTING,1" Male Thread x 1-1/4" Hose Barb

poly straight adapter 1" mp 1 1/4" hb

2шт.

8

87577740

TEE

flow 1 1/2 to 35 Imperial gpm

1шт.

Standard

1шт.

10

87503677

BRACKET

flow tee mount

1шт.

11

15577K

KIT

flow sensor replacement

1шт.

12

87505108

VALVE

elec pressure reg 344b

1шт.

13

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

3шт.

14

SQ-822

HOSE,1.25" ID x 34.00"

1шт.

Cut from bulk hose 1388

1шт.

15

21380

GAUGE

pressure 0-160 psi

1шт.

16

15263V3

SENSOR

pressure

1шт.

17

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

4шт.

18

413-4112

BOLT,Hex, 1/4" - 20 x 7", Gr 5

4шт.

19

87504878

ECU

4 line monitor

1шт.

20

87505112

PLATE

remote mount

1шт.
